Connector Terminal Identification
›
Power Roof
›
Sun Roof Actuator
Sun Roof Actuator

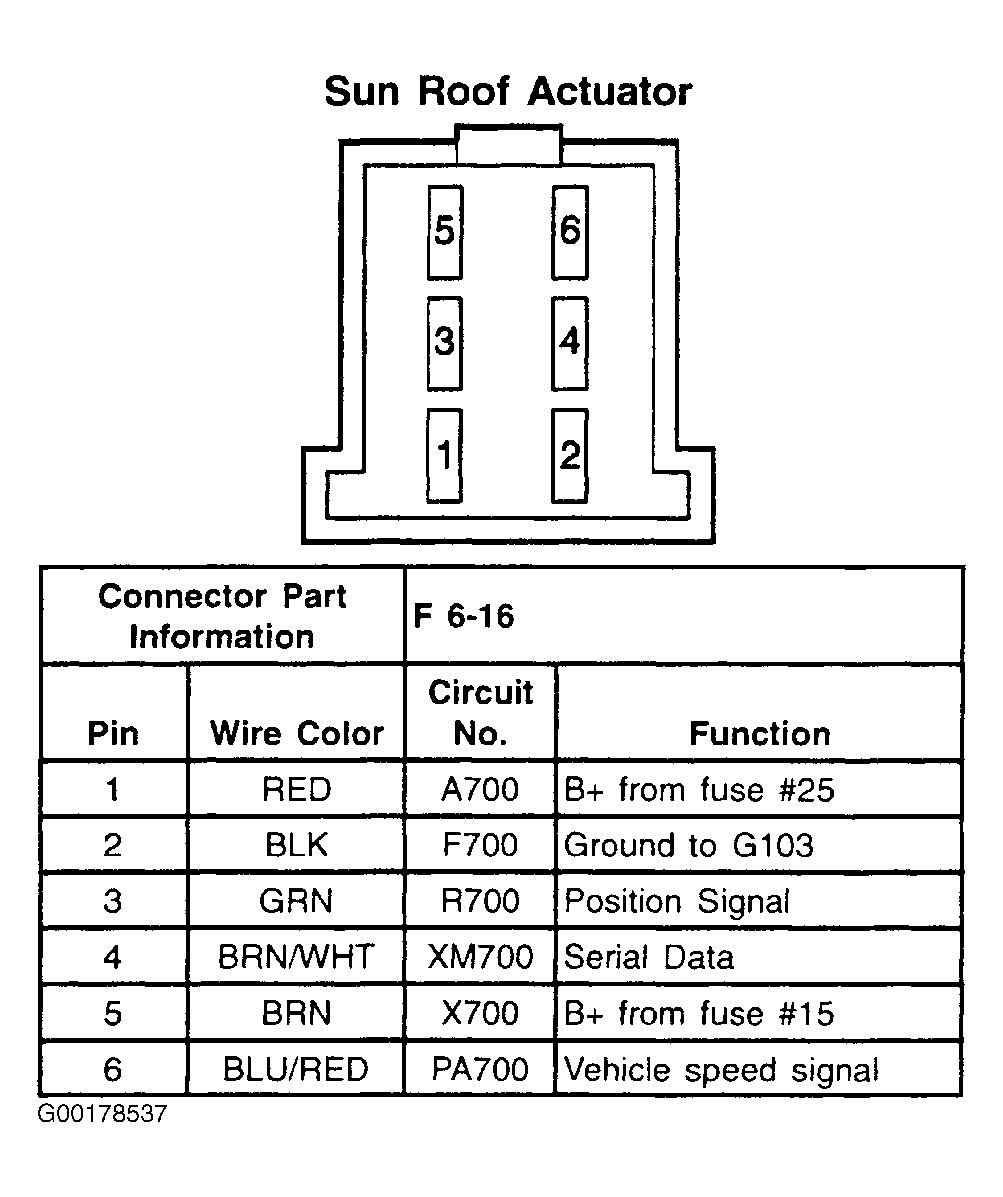

Fig 1: Sun Roof Actuator - 6-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
