Driver Seat - C315

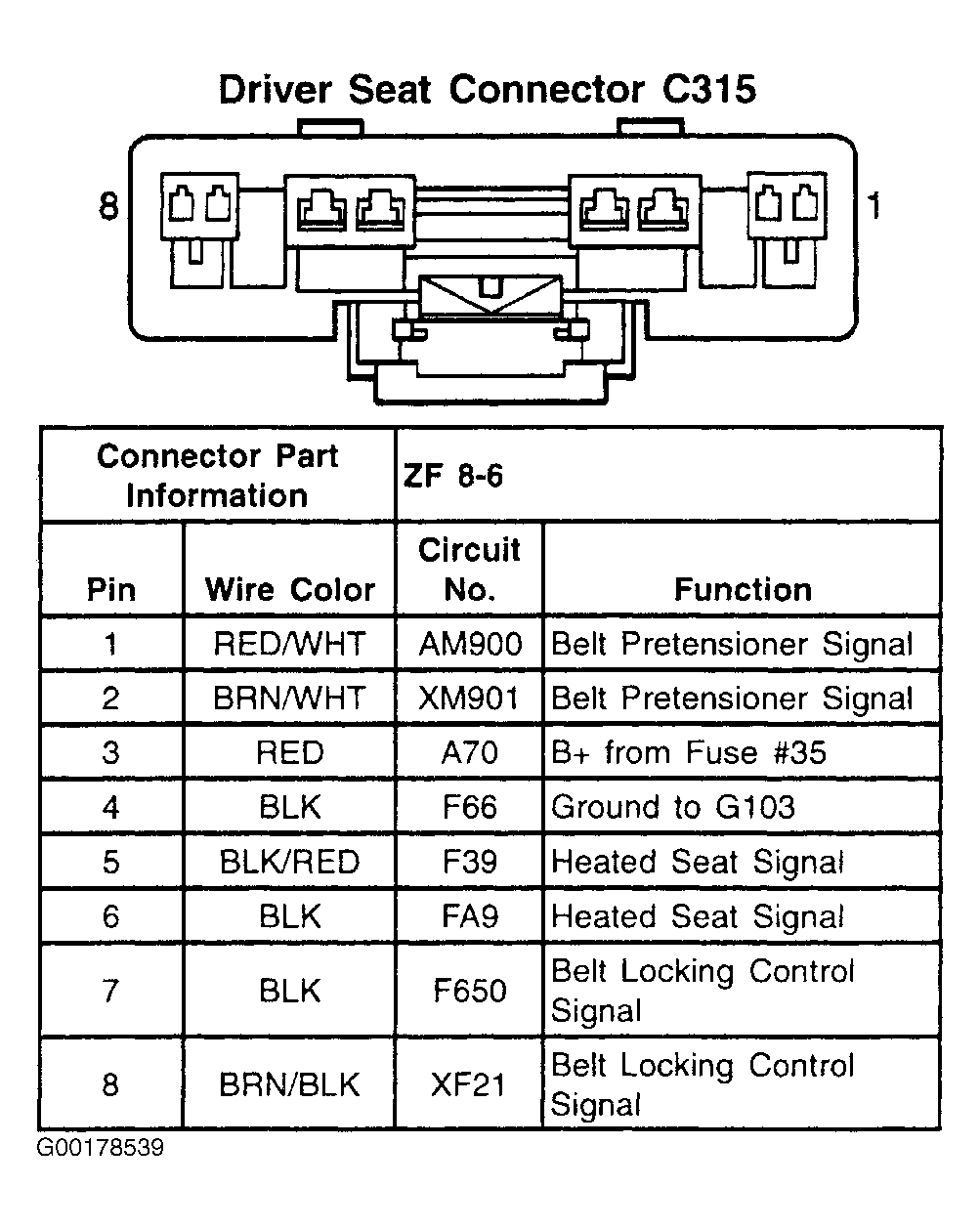

Fig 1: Driver Seat C315 - 8-Pin Connector
G00178539Courtesy of GENERAL MOTORS CORP.
