Driver Seat Adjuster Memory Module C1

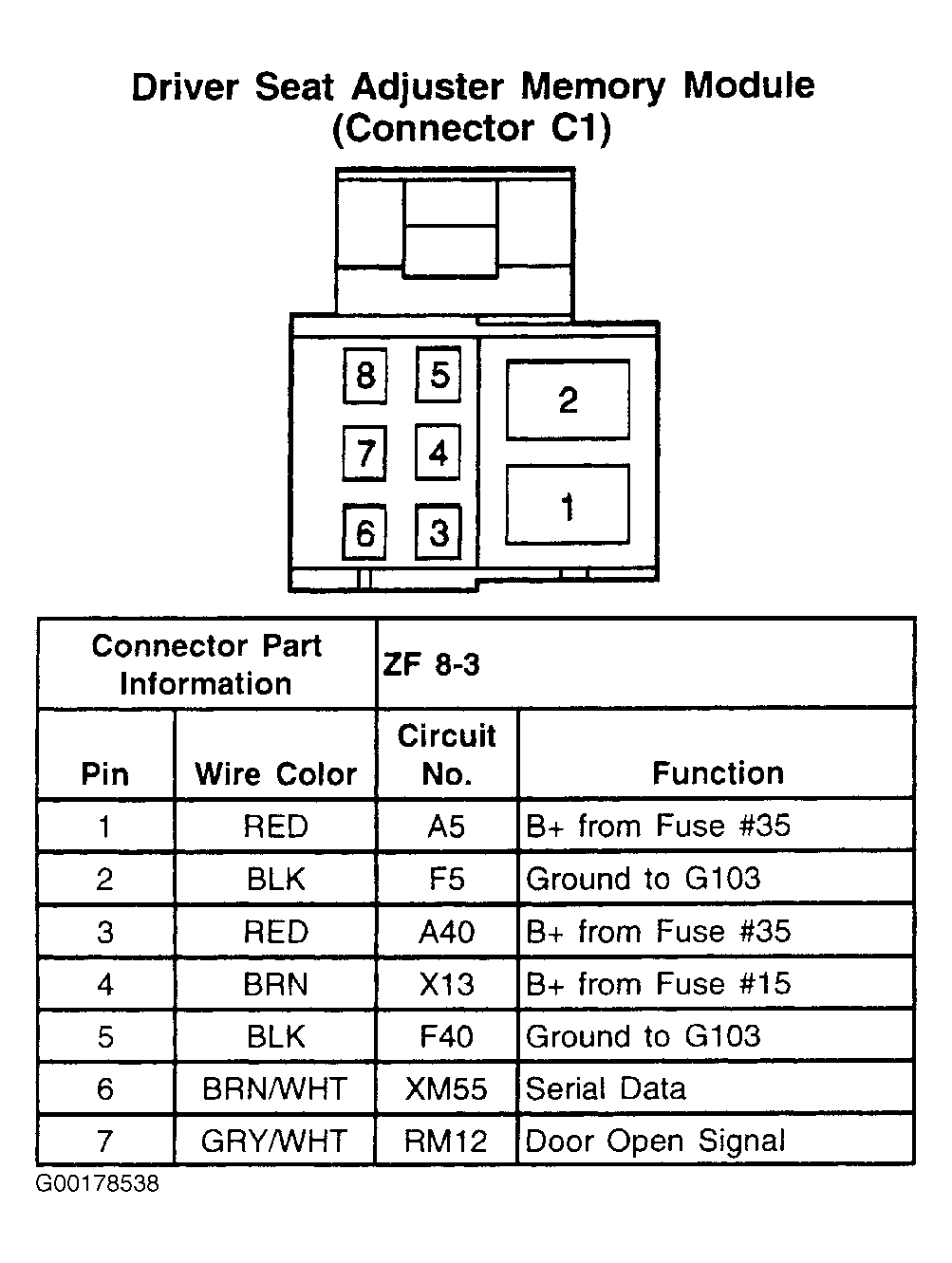

Fig 1: Driver Seat Adjuster Memory Module C1 - 8-Pin Connector
G00178538Courtesy of GENERAL MOTORS CORP.
