Connector Terminal Identification
›
Power Seats
›
Driver Seat Heater Switch
Driver Seat Heater Switch

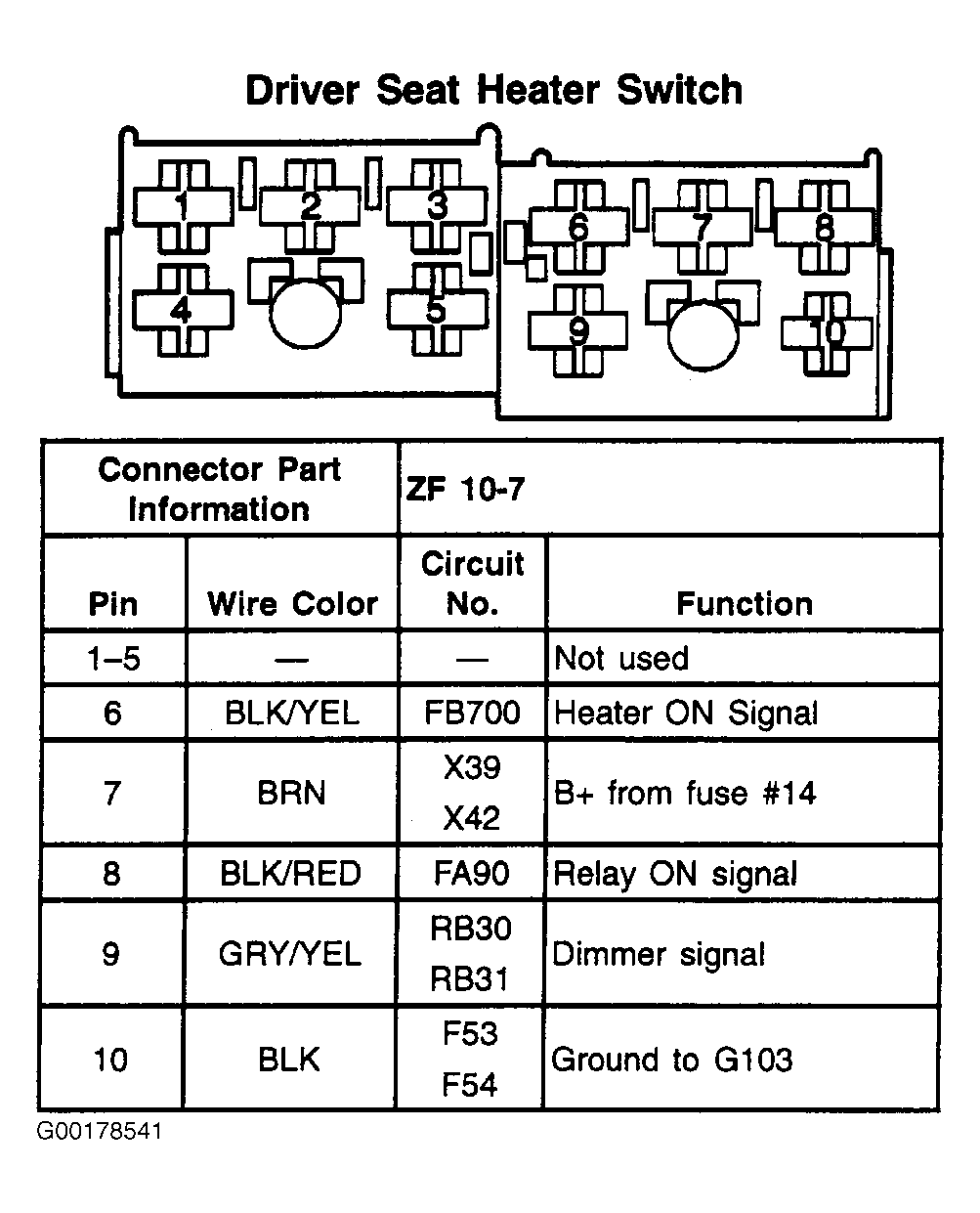

Fig 1: Driver Seat Heater Switch - 10-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
