Connector Terminal Identification
›
Power Seats
›
Passenger Seat Heater Switch
Passenger Seat Heater Switch

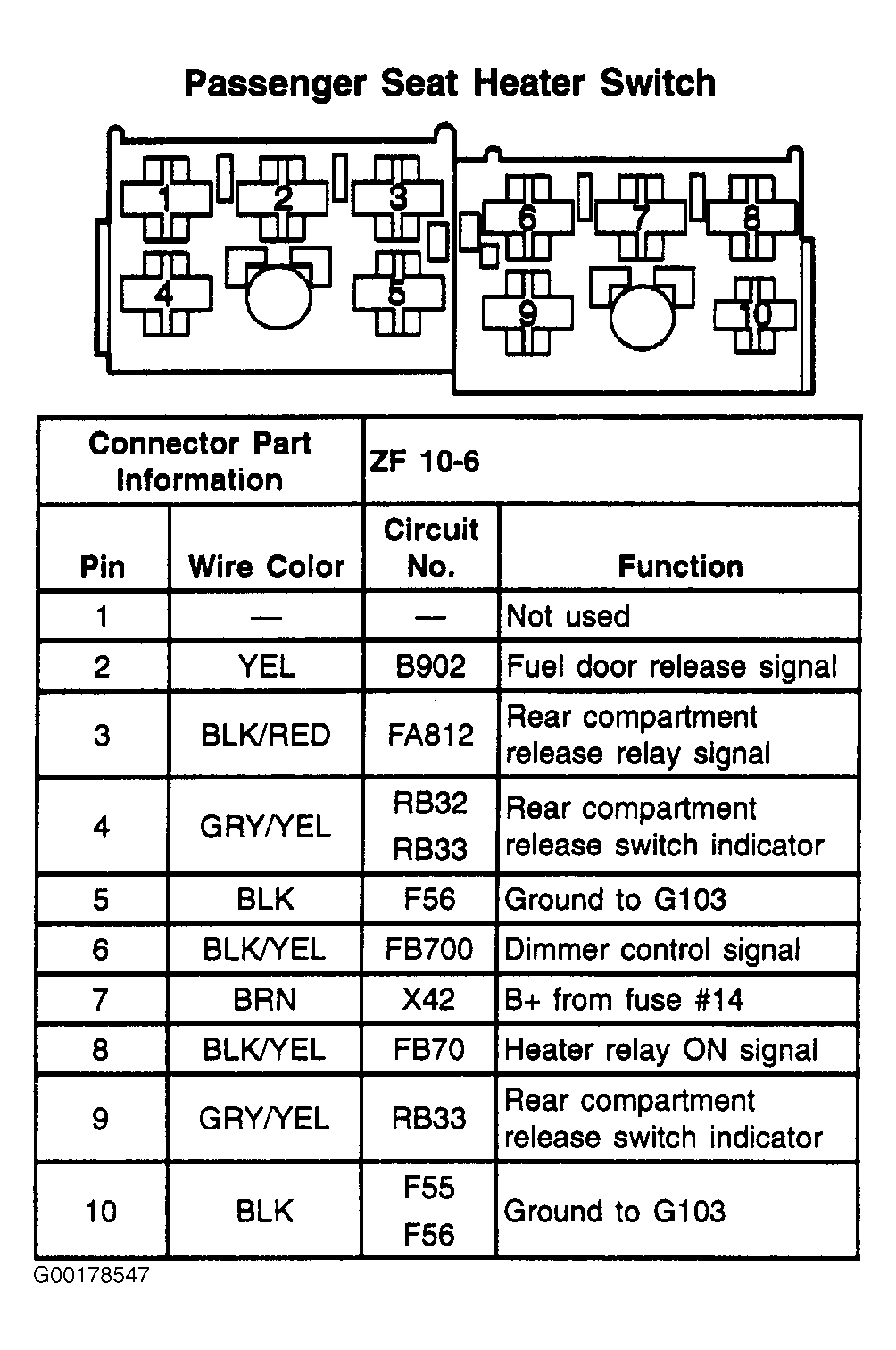

Fig 1: Passenger Seat Heater Switch - 10-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
