Inside Rear View Mirror (With Memory)

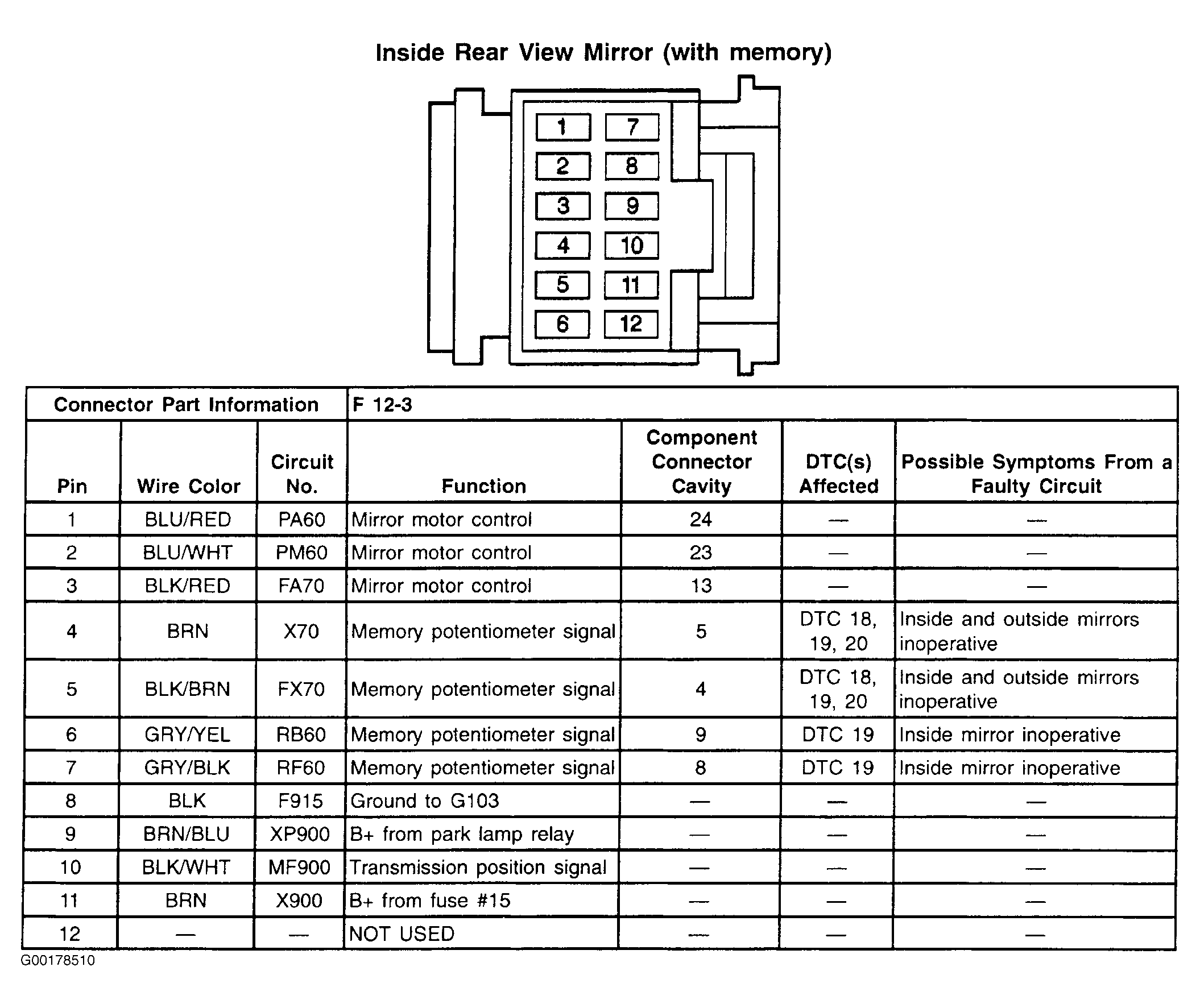

Fig 1: Inside Rear View Mirror (With Memory) - 12-Pin Connector
G00178510Courtesy of GENERAL MOTORS CORP.
