Connector Terminal Identification
›
Steering Controls
›
Power Steering Control Module
Power Steering Control Module

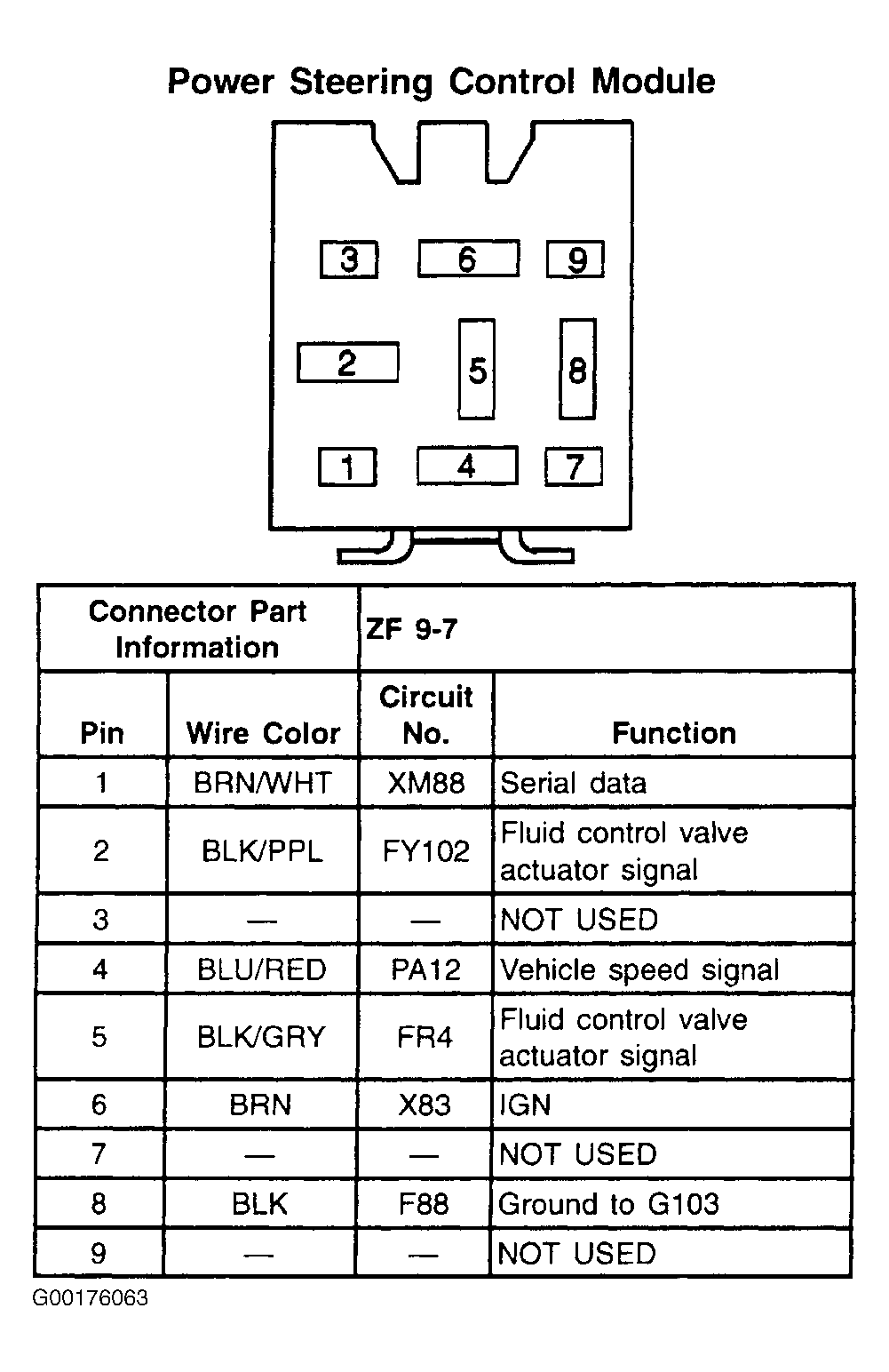

Fig 1: Power Steering Control Module - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
