Theft Deterrent Module Connector

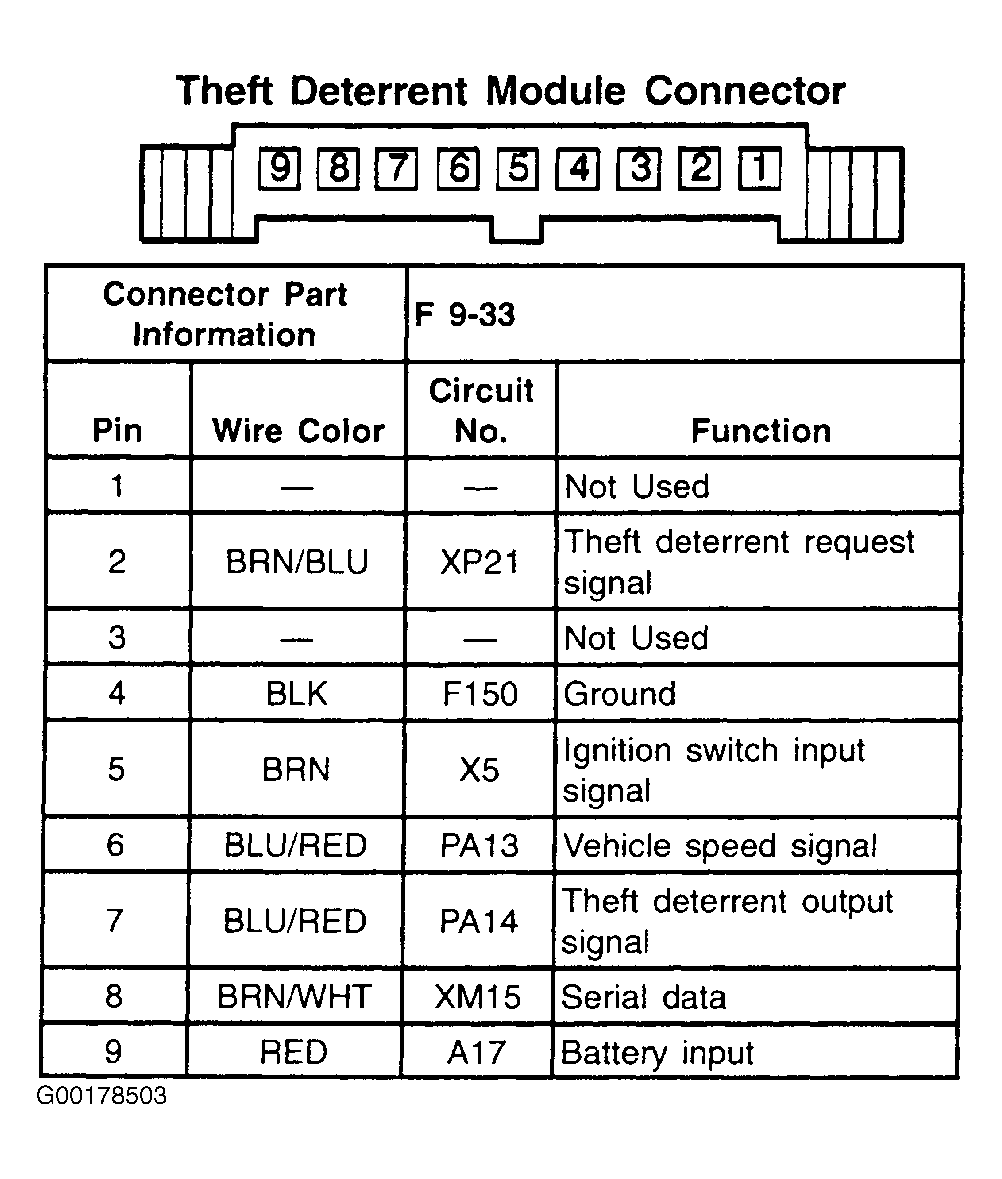

Fig 1: Theft Deterrent Module Connector - 9-Pin Connector
G00178503Courtesy of GENERAL MOTORS CORP.
