Connector Terminal Identification
›
Wiper/Washer Systems
›
Interval Switch
Interval Switch

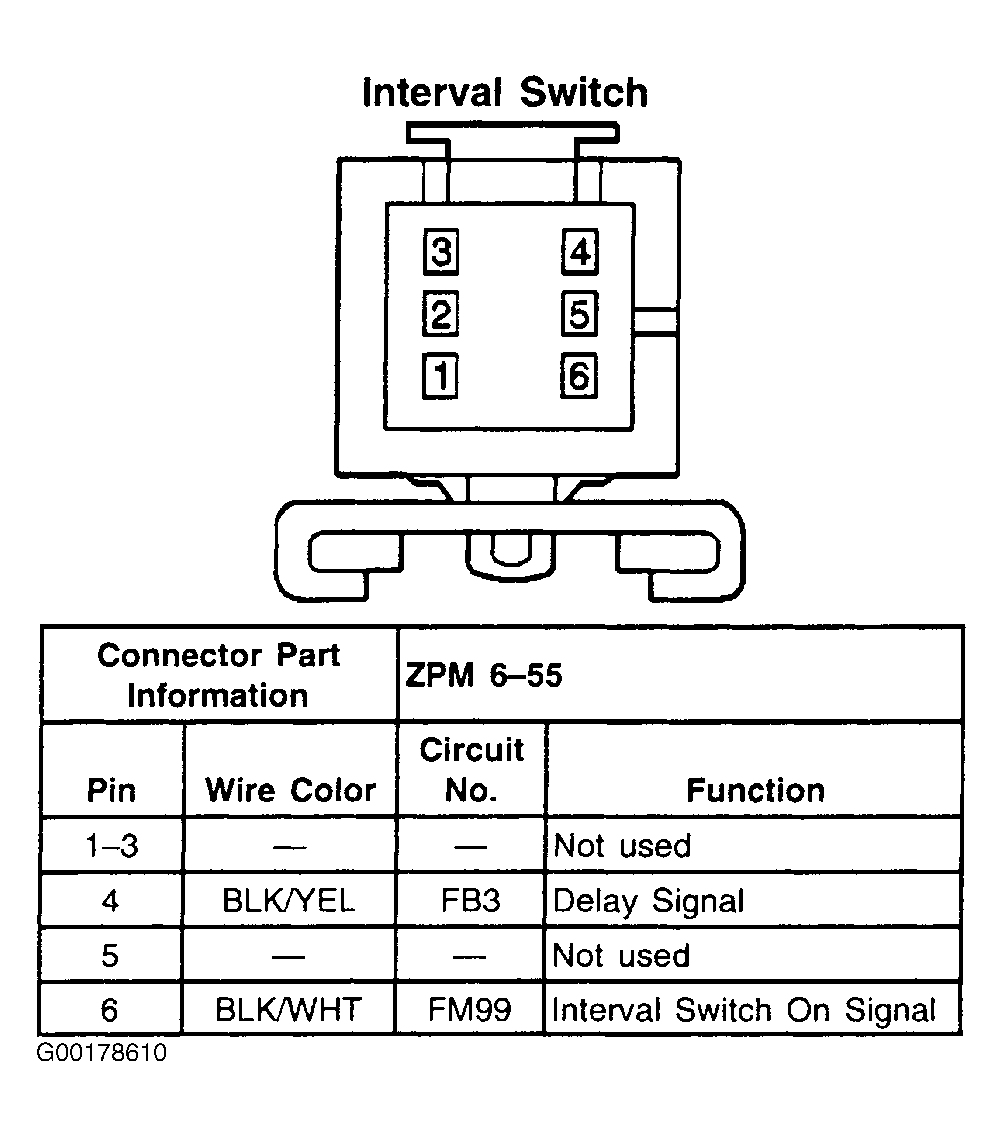

Fig 1: Interval Switch- 6-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
