Connector Terminal Identification
›
Wiper/Washer Systems
›
Windshield Washer Pump
Windshield Washer Pump

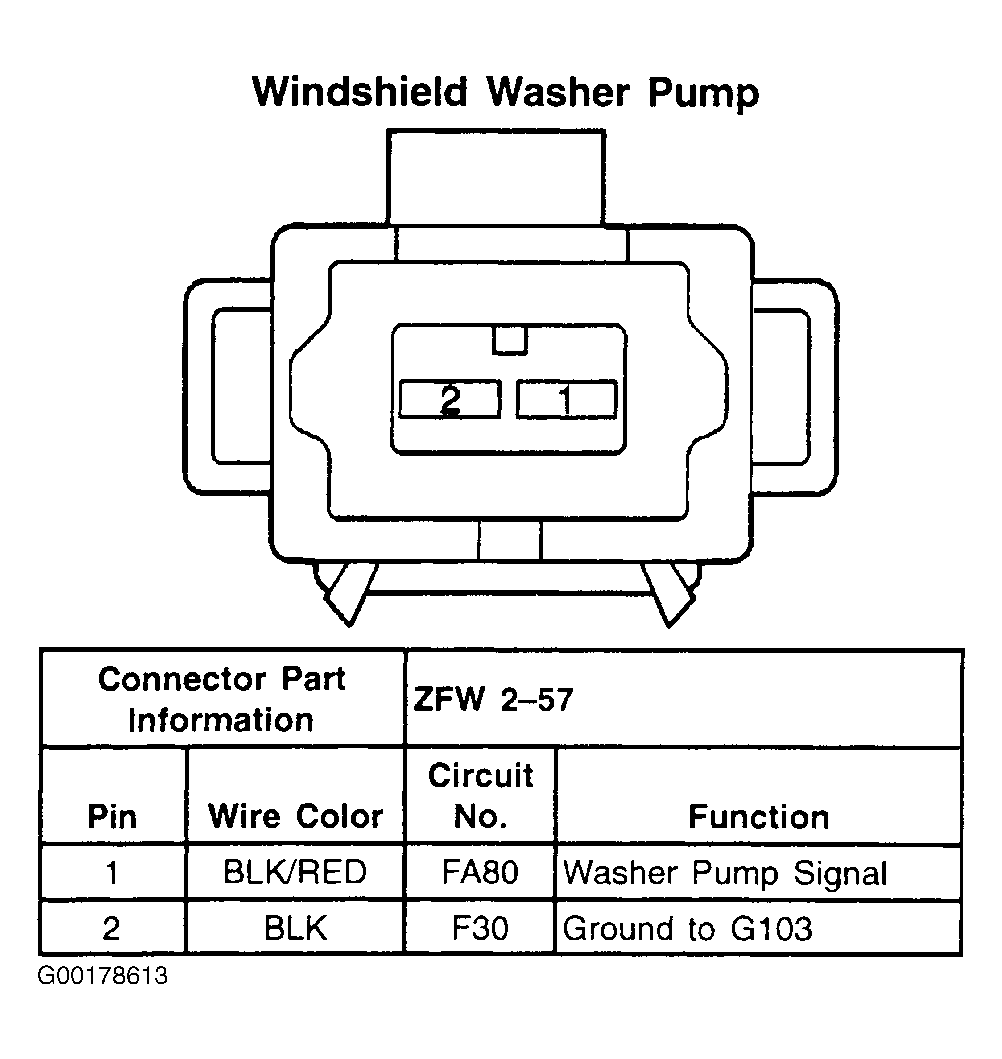

Fig 1: Windshield Washer Pump - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
