Connector Terminal Identification
›
Wiper/Washer Systems
›
Windshield Washer Solvent Level Switch
Windshield Washer Solvent Level Switch

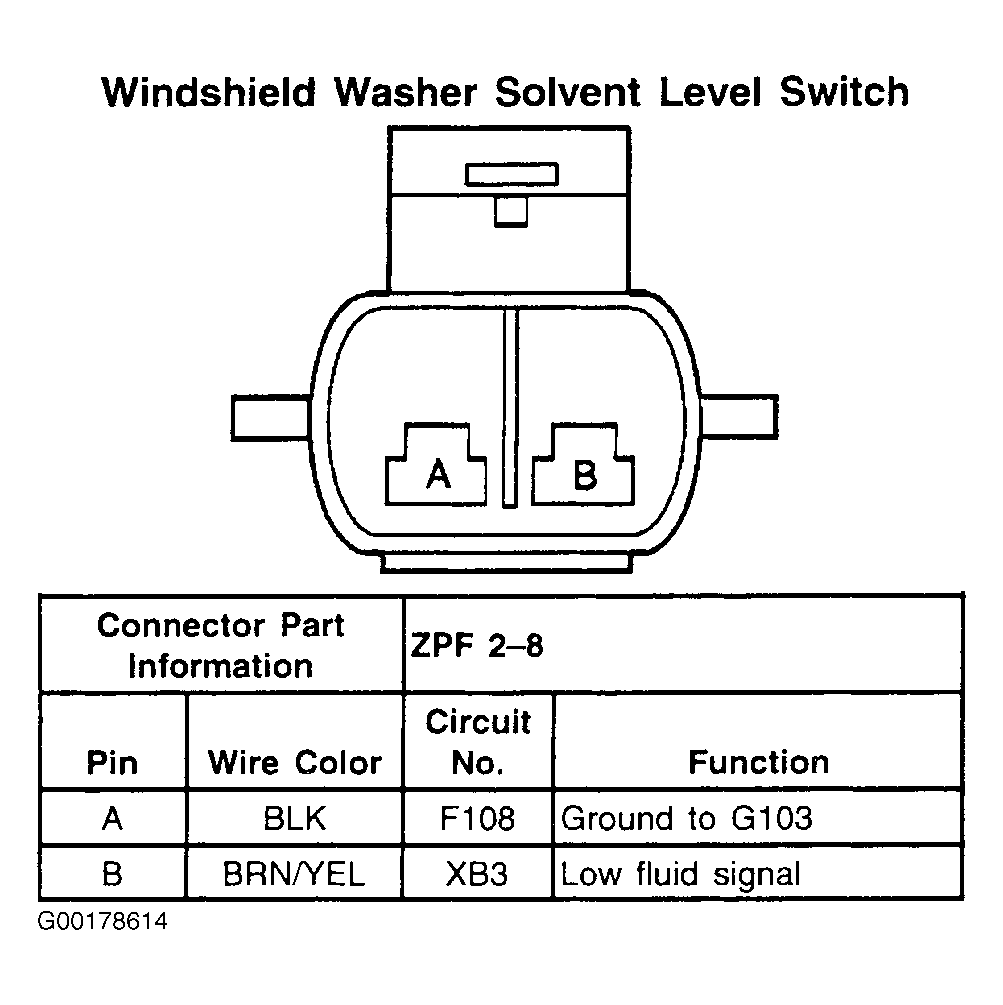

Fig 1: Windshield Washer Solvent Level Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
