Connector Terminal Identification
›
Wiper/Washer Systems
›
Windshield Wiper & Windshield Washer Switch
Windshield Wiper & Windshield Washer Switch

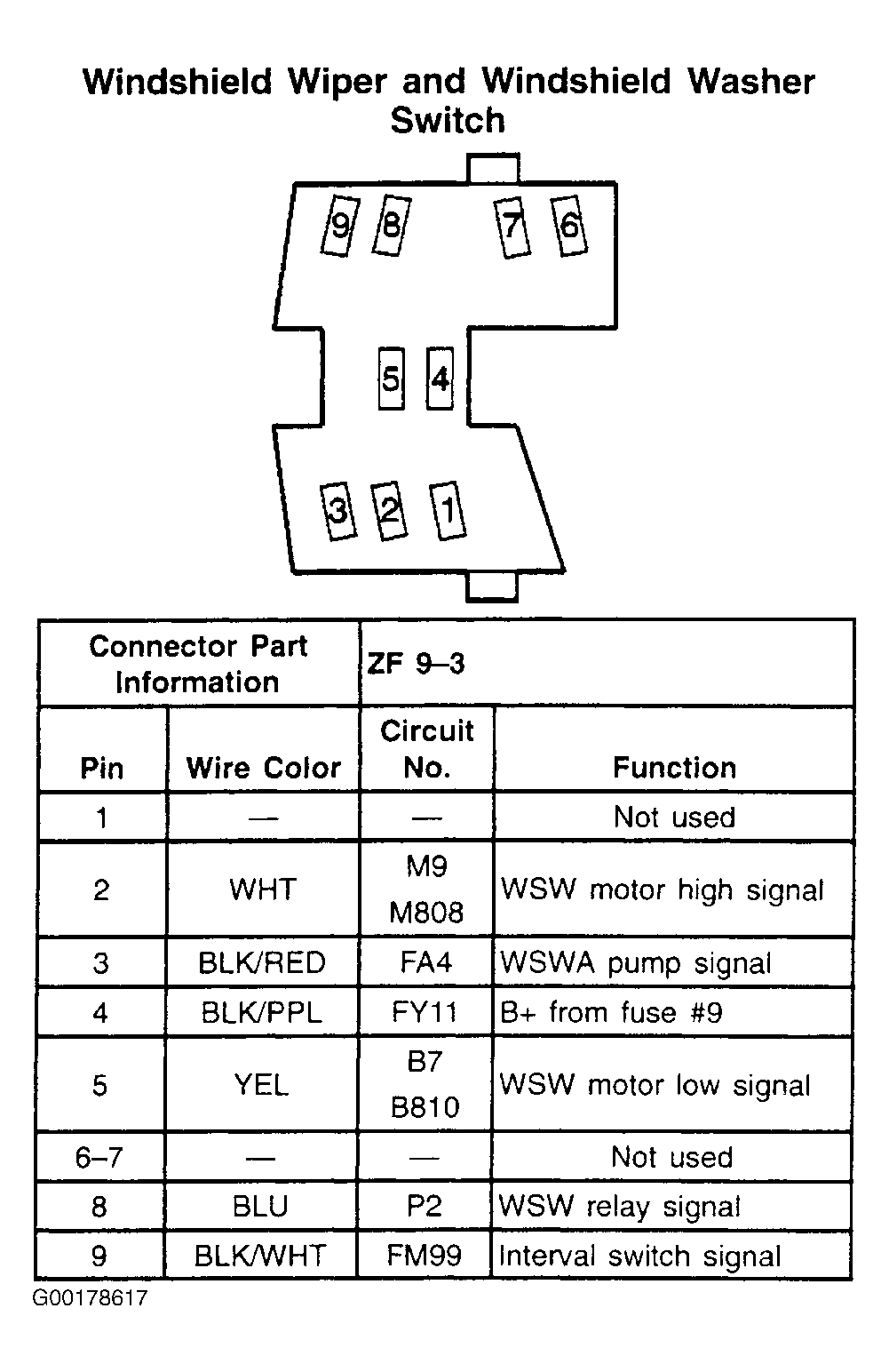

Fig 1: Windshield Wiper & Windshield Washer Switch - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
