Power Recirculating Ball Steering System: Overhaul

NOTE: Power steering gear is not serviceable. Power steering gear must be replaced as a complete assembly.

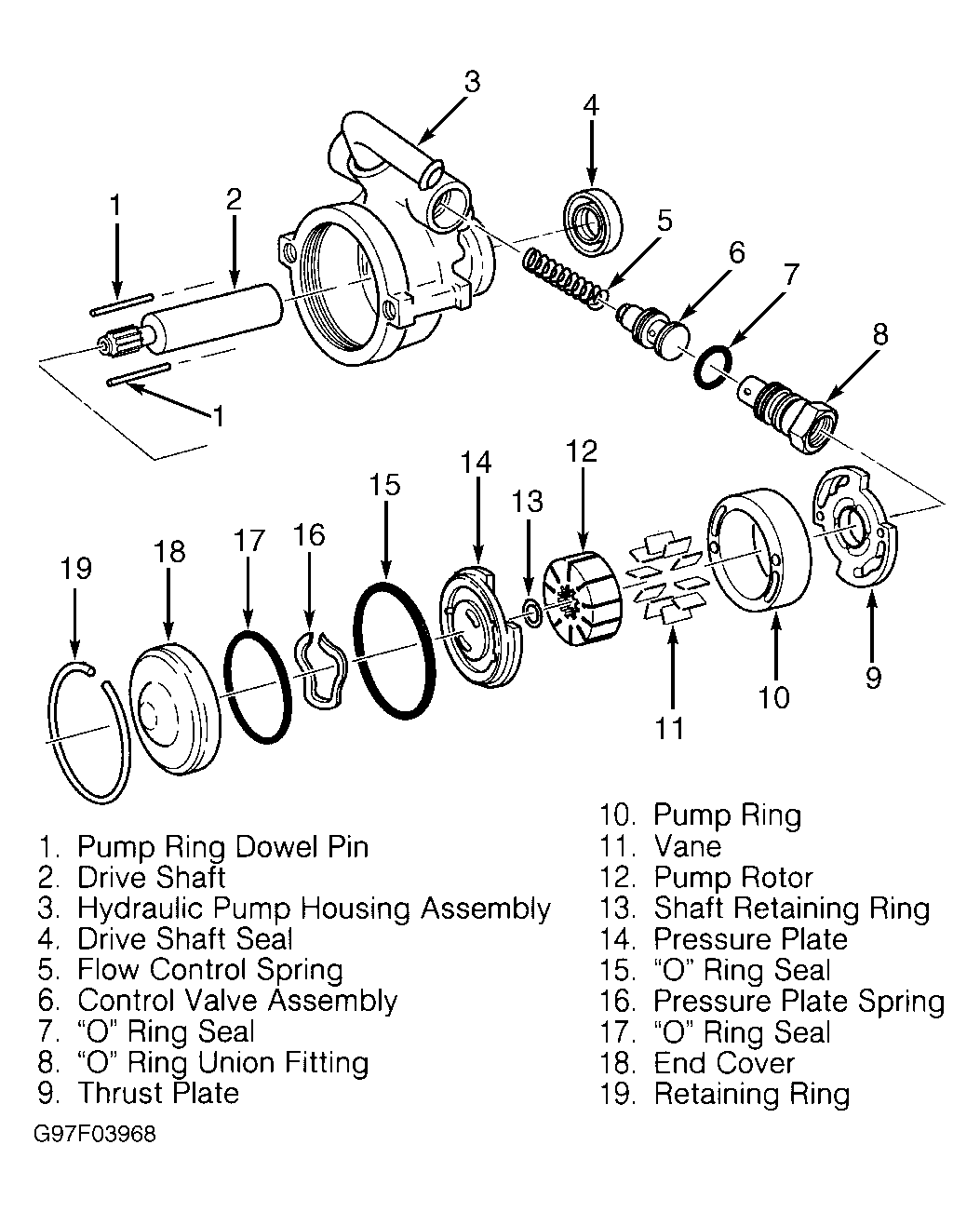

Fig 1: Exploded View Of Power Steering Pump

Courtesy of GENERAL MOTORS CORP.
