Body Control Module (PZM) C2

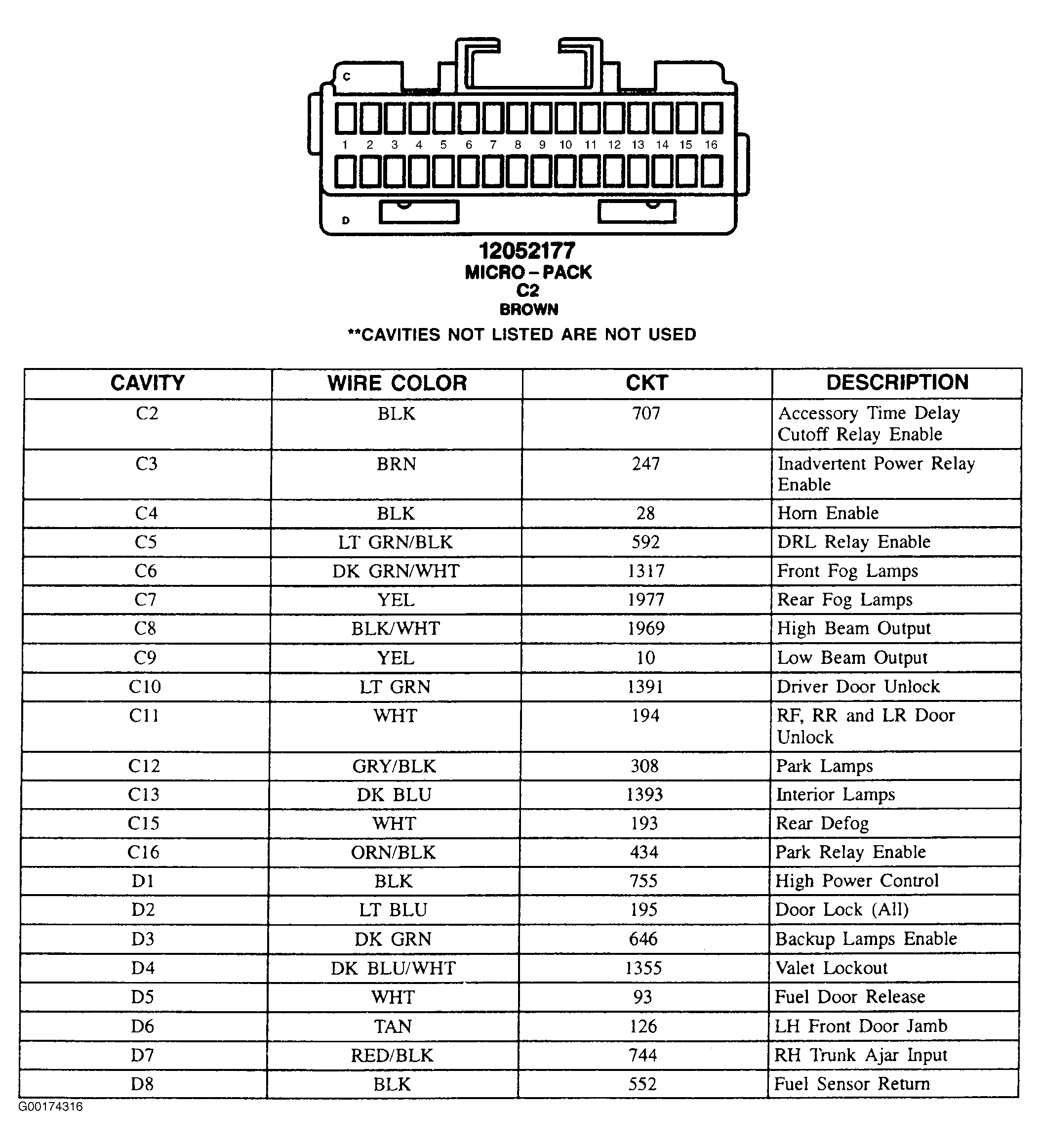

Fig 1: Body Control Module (PZM) C2 - 32-Pin Connector (Brown)
G00174316Courtesy of GENERAL MOTORS CORP.
