Connector Terminal Identification
›
Cellular Telephone
›
Cellular Telephone Module
Cellular Telephone Module

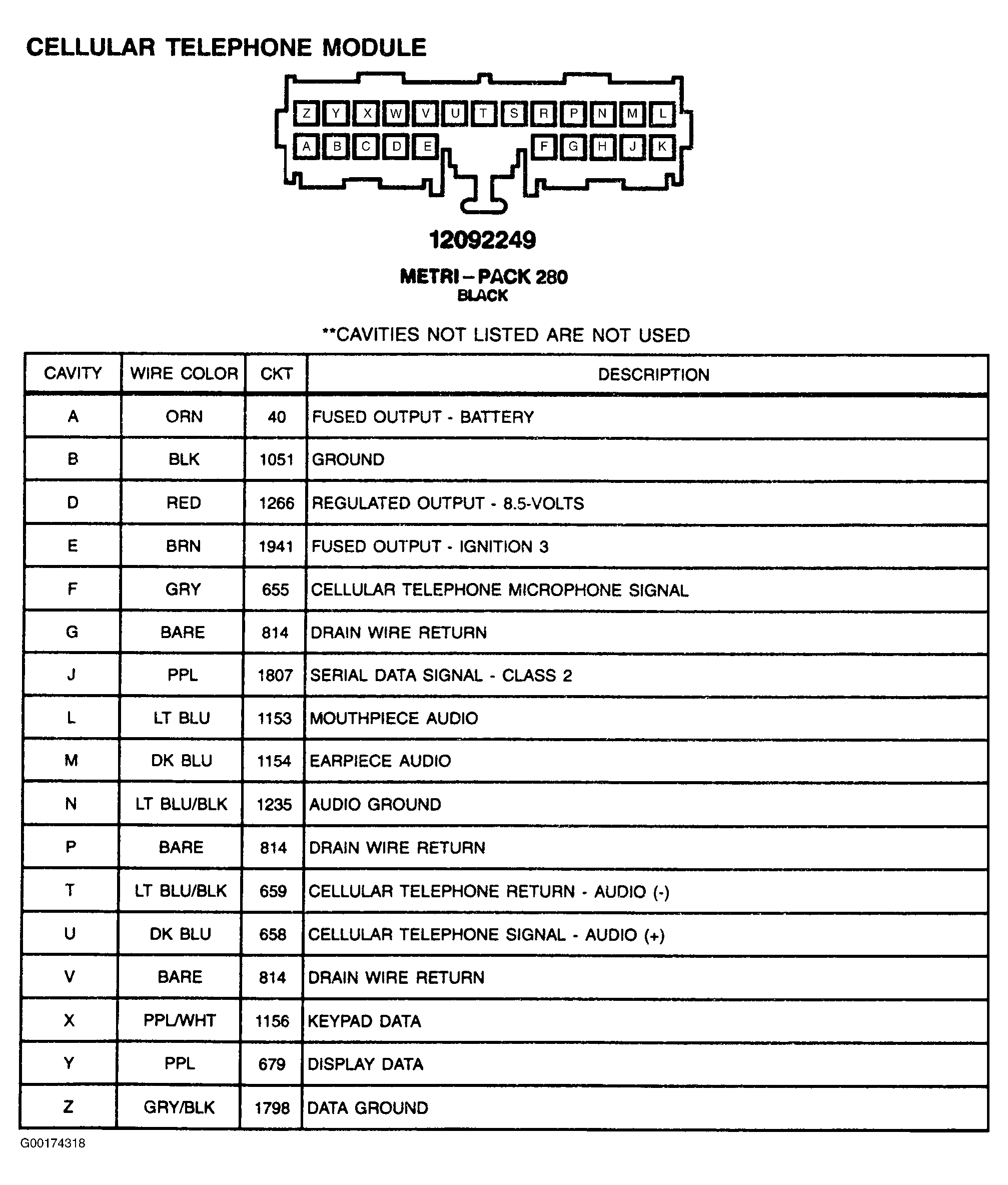

Fig 1: Cellular Telephone Module - 23-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
