Headlamp
›
Headlamp Switch - C2
Headlamp Switch - C2

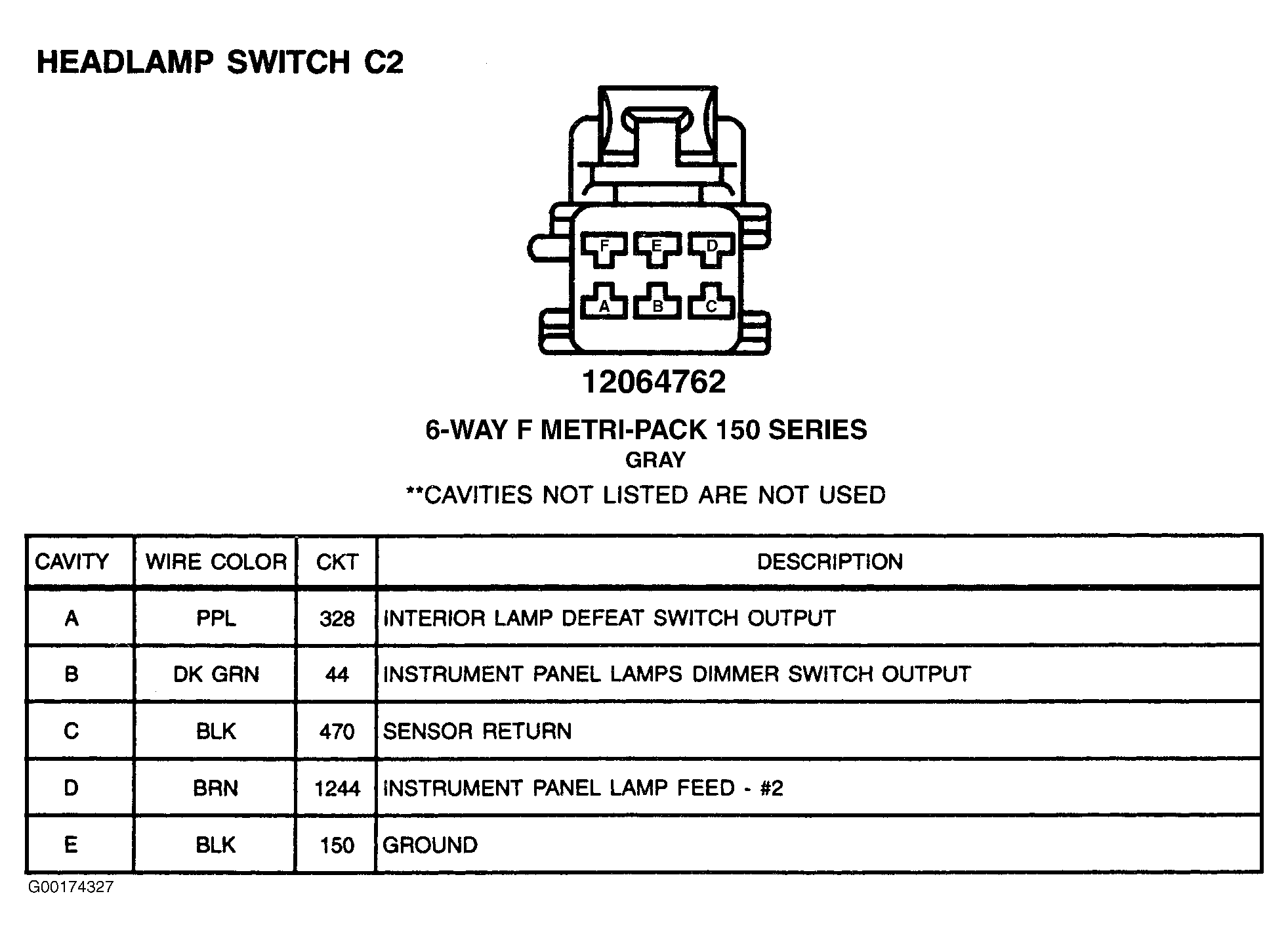

Fig 1: Headlamp Switch C2 - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
