Home › Cadillac › 1997 › Eldorado Base › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Radio › Radio Amplifier › Radio Amplifier - C3

Radio Amplifier - C3

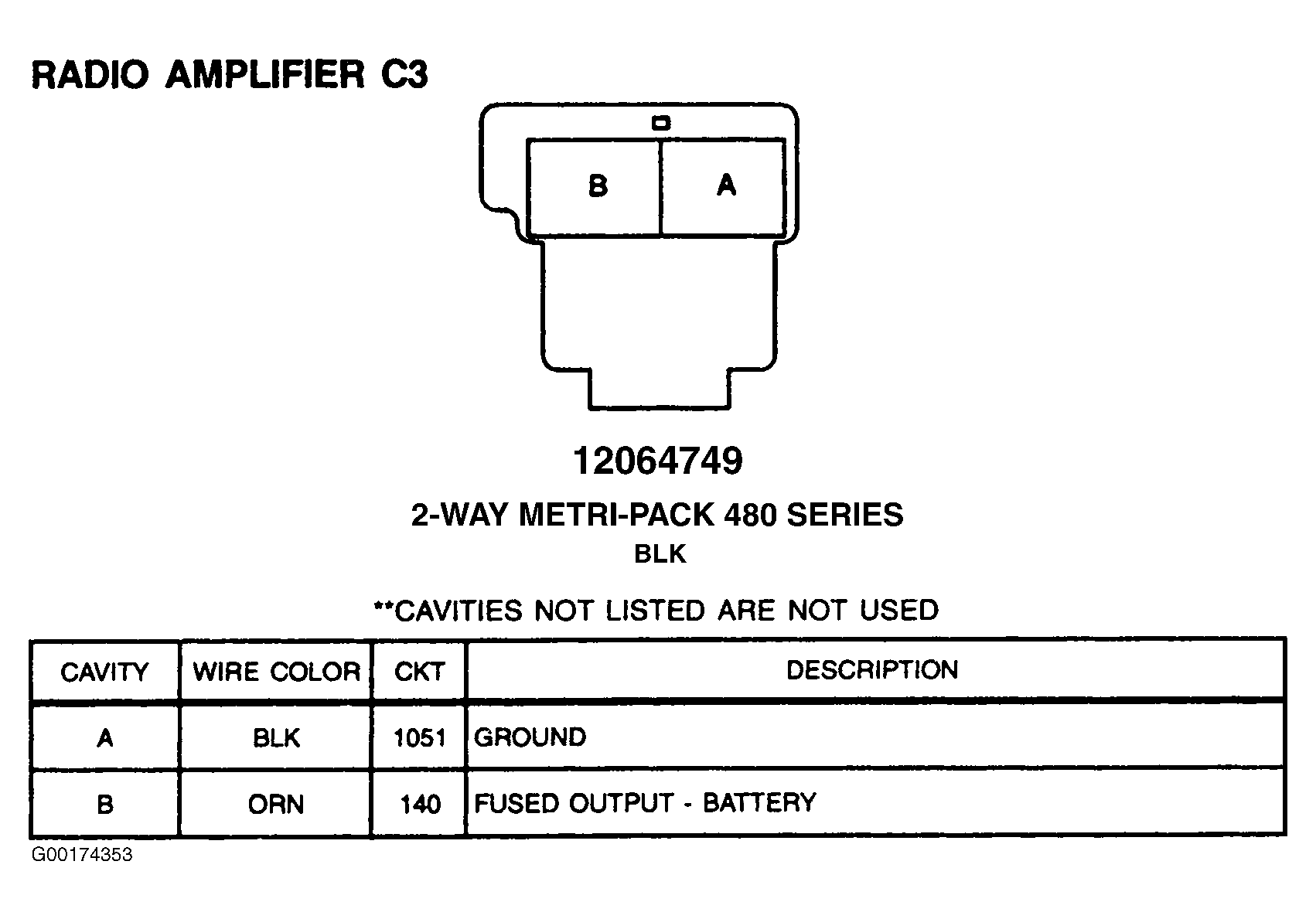

Fig 1: Radio Amplifier (C3) - 2-Pin Connector (Black)
G00174353Courtesy of GENERAL MOTORS CORP.
