Riding Height Specifications

Maximum variation between side-to-side and front-to-rear should not exceed .75" (19 mm). On all other models, maximum variation between side-to-side and front-to-rear should not exceed .47" (12 mm).

RIDING HEIGHT SPECIFICATIONS

Application

⁽¹⁾ Front "A" In. (mm)

⁽²⁾ Rear "B" In. (mm)

Concours, DeVille, Eldorado & Seville

8.7 (220)

8.4 (214)

⁽¹⁾	Location "A" is measured 22.8" (580 mm) from center of front axle. Dimension "A" is measured from floor to rocker panel. See Fig 1 .

⁽²⁾	Location "B" is measured 22.2" (563 mm) from center of rear axle. Dimension "B" is measured from floor to rocker panel. See Fig 1 .

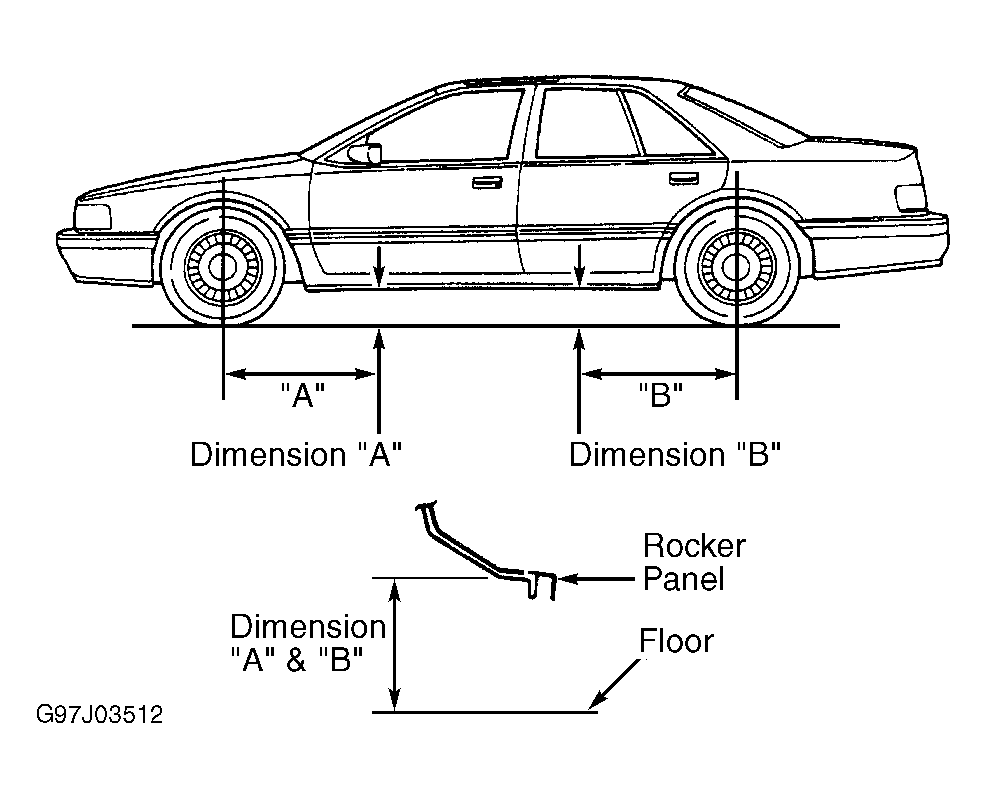

Fig 1: Riding Height Measuring Points

Courtesy of GENERAL MOTORS CORP.
