Connector Terminal Identification
›
Cellular Telephone
›
Cellular Telephone Handset
Cellular Telephone Handset

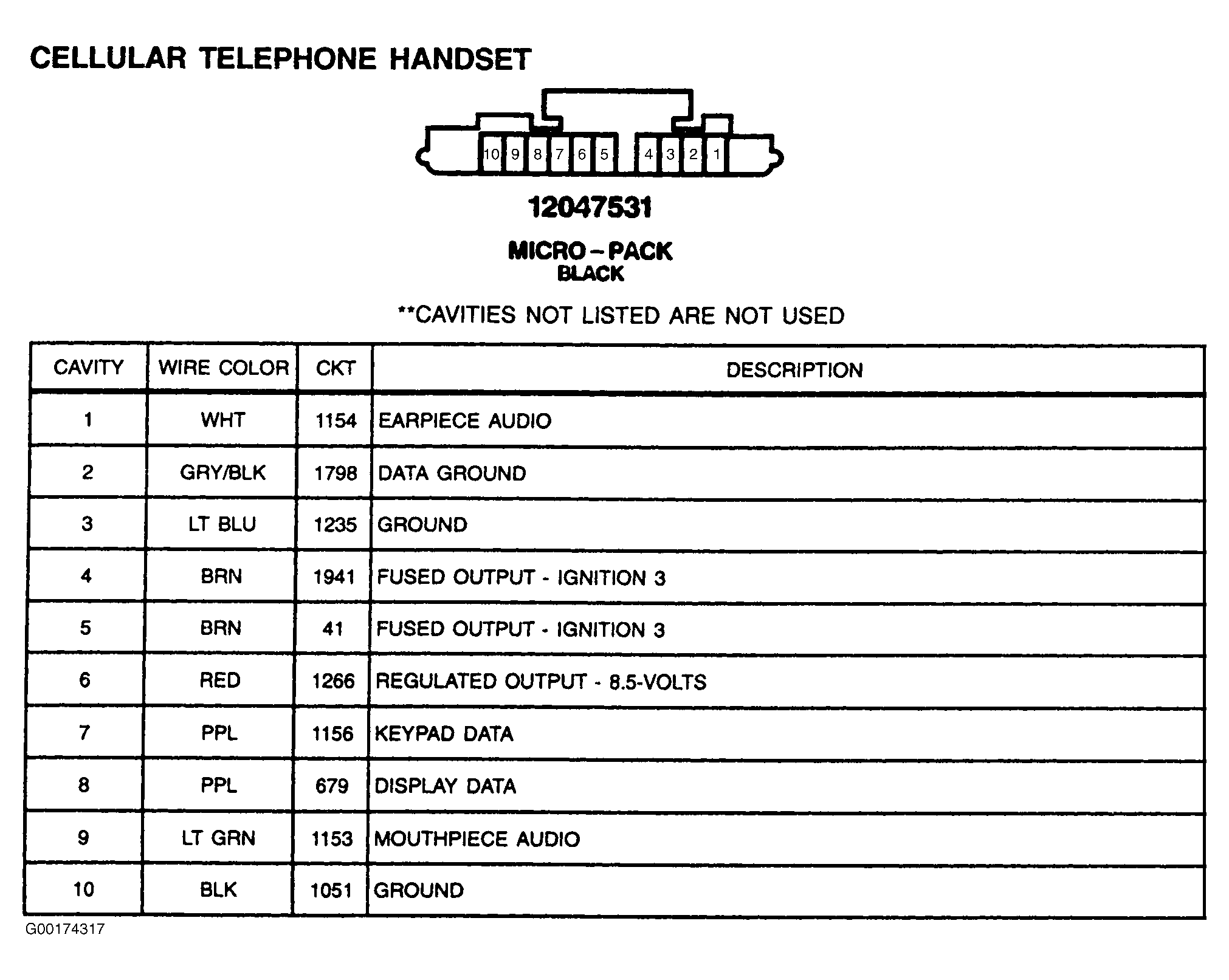

Fig 1: Cellular Telephone Handset - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
