Climate Control Panel (CCP)

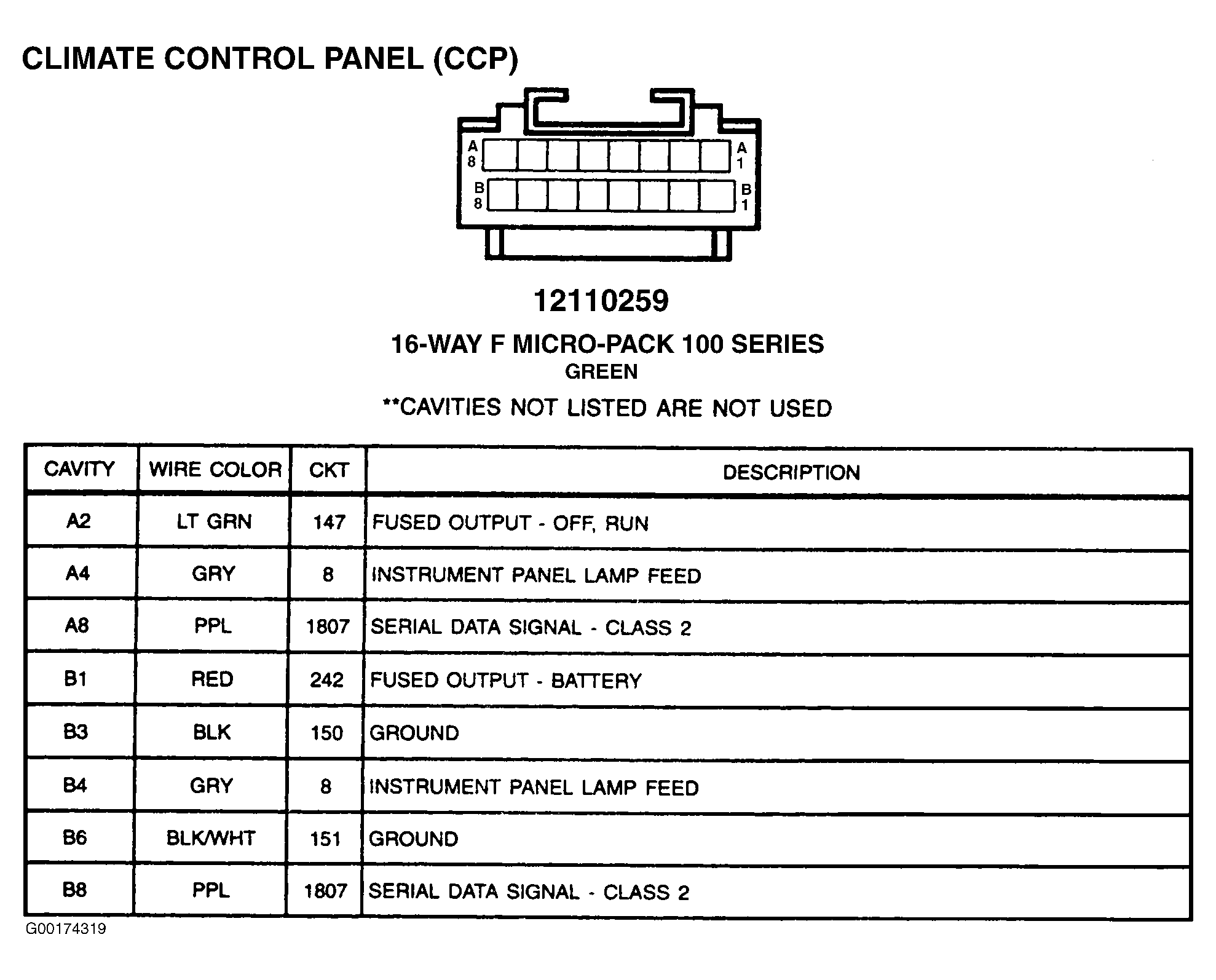

Fig 1: Climate Control Panel (CCP) - 16-Pin Connector (Green)
G00174319Courtesy of GENERAL MOTORS CORP.
