Home › Cadillac › 1997 › Seville SLS › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Compact Disc (Cd) Changer

Compact Disc (Cd) Changer

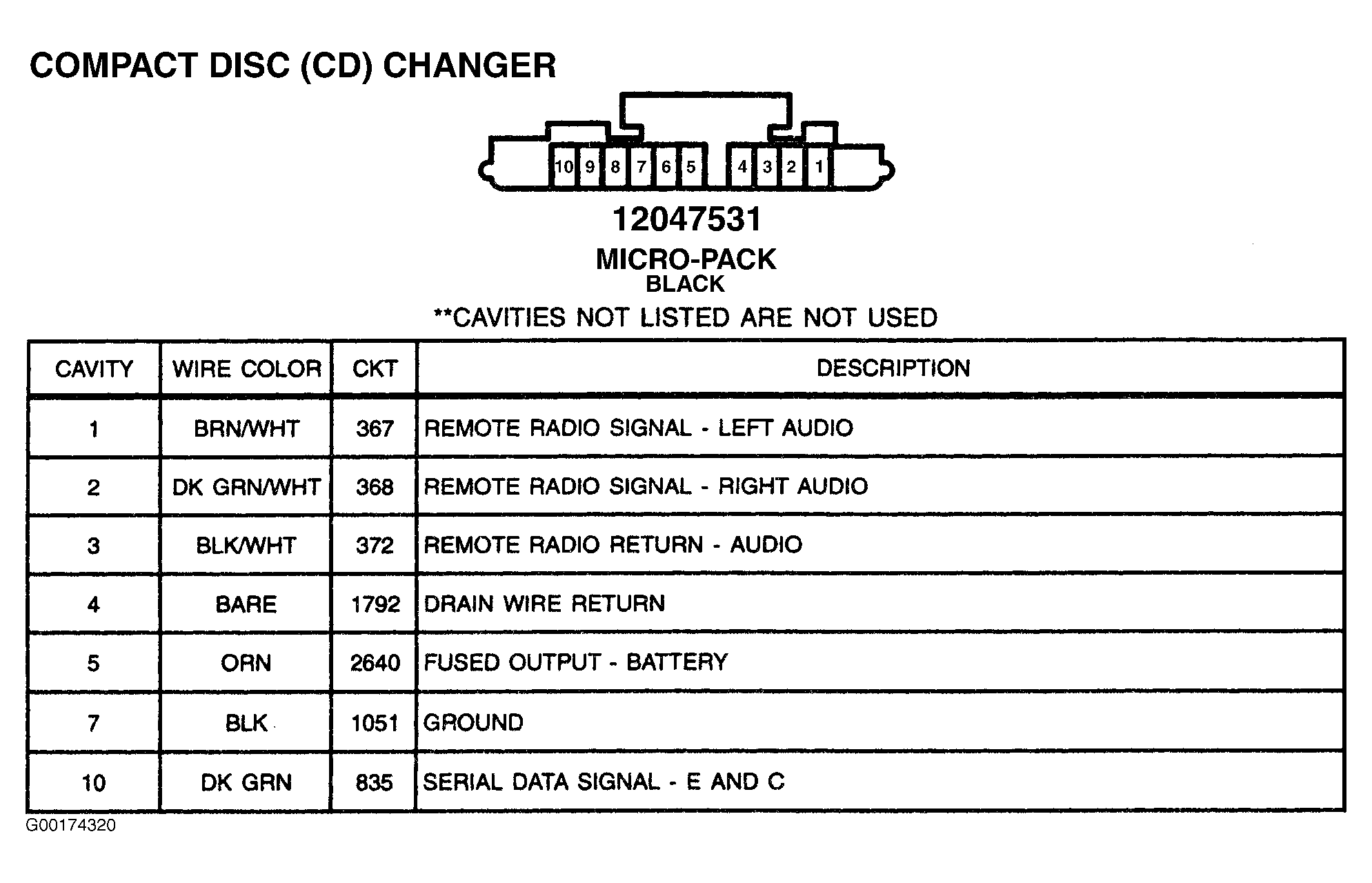

Fig 1: Compact Disc (CD) Changer - 10-Pin Connector (Black)
G00174320Courtesy of GENERAL MOTORS CORP.
