Data Link Connector (DLC)
Data Link Connector (DLC)

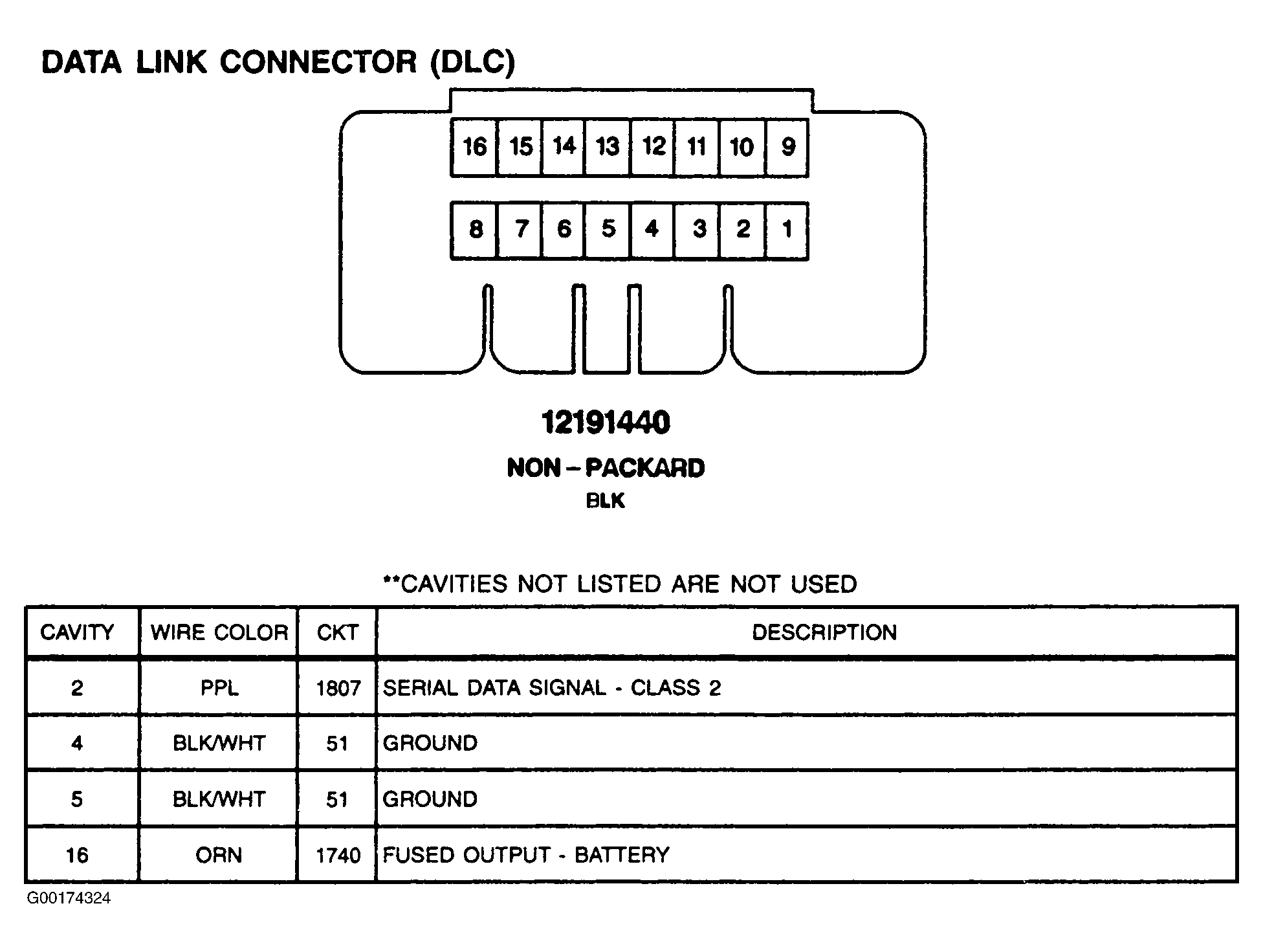

Fig 1: Data Link Connector (DLC) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
