Headlamp Switch - C1

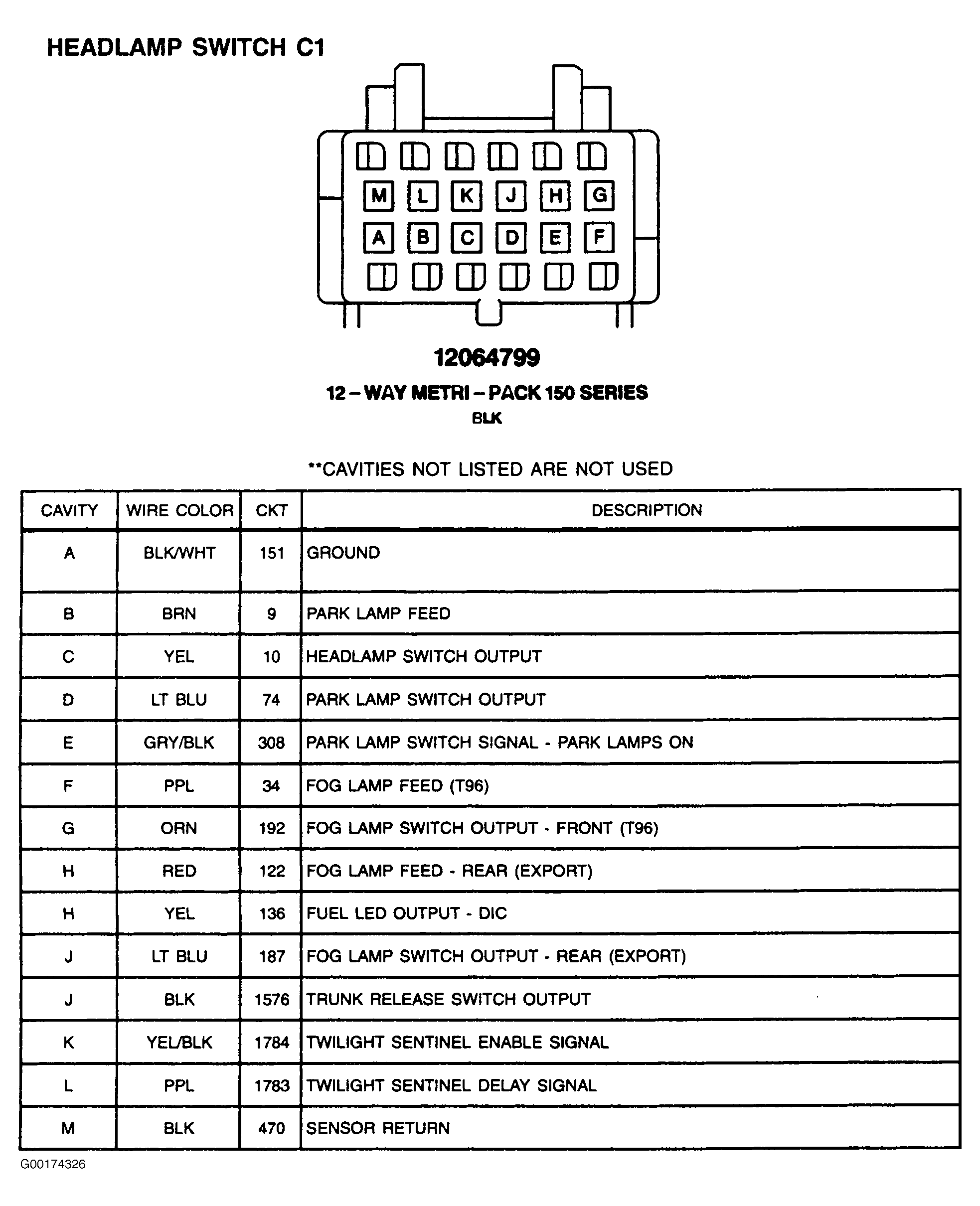

Fig 1: Headlamp Switch C1 - 12-Pin Connector (Black)
G00174326Courtesy of GENERAL MOTORS CORP.
