Inadvertent Power Relay

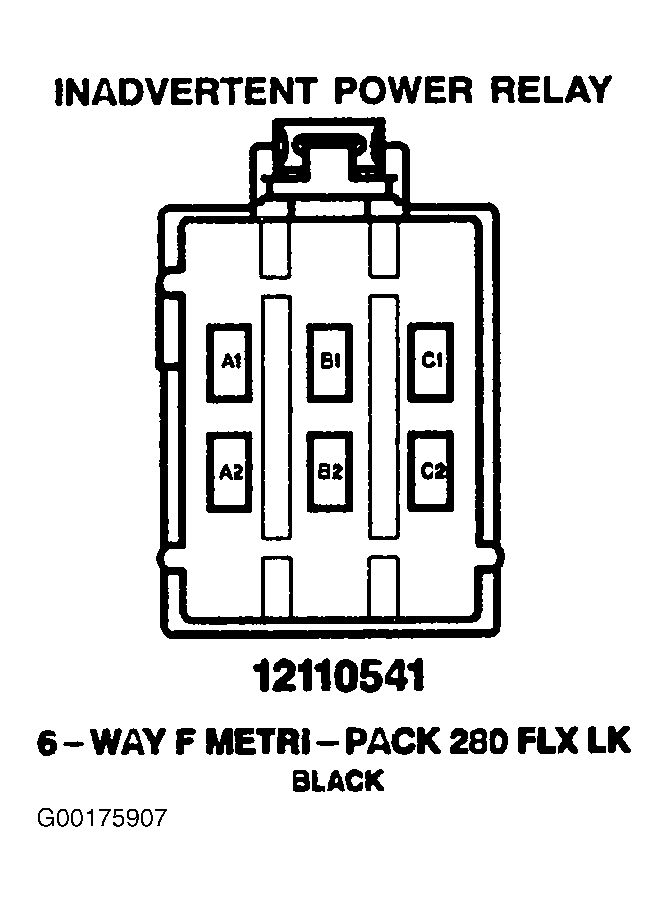

Fig 1: Inadvertent Power Relay - 6-Pin Connector (Black)
G00175907Courtesy of GENERAL MOTORS CORP.
