Inflatable Restraint Sensing & Diagnostic Module (SDM)

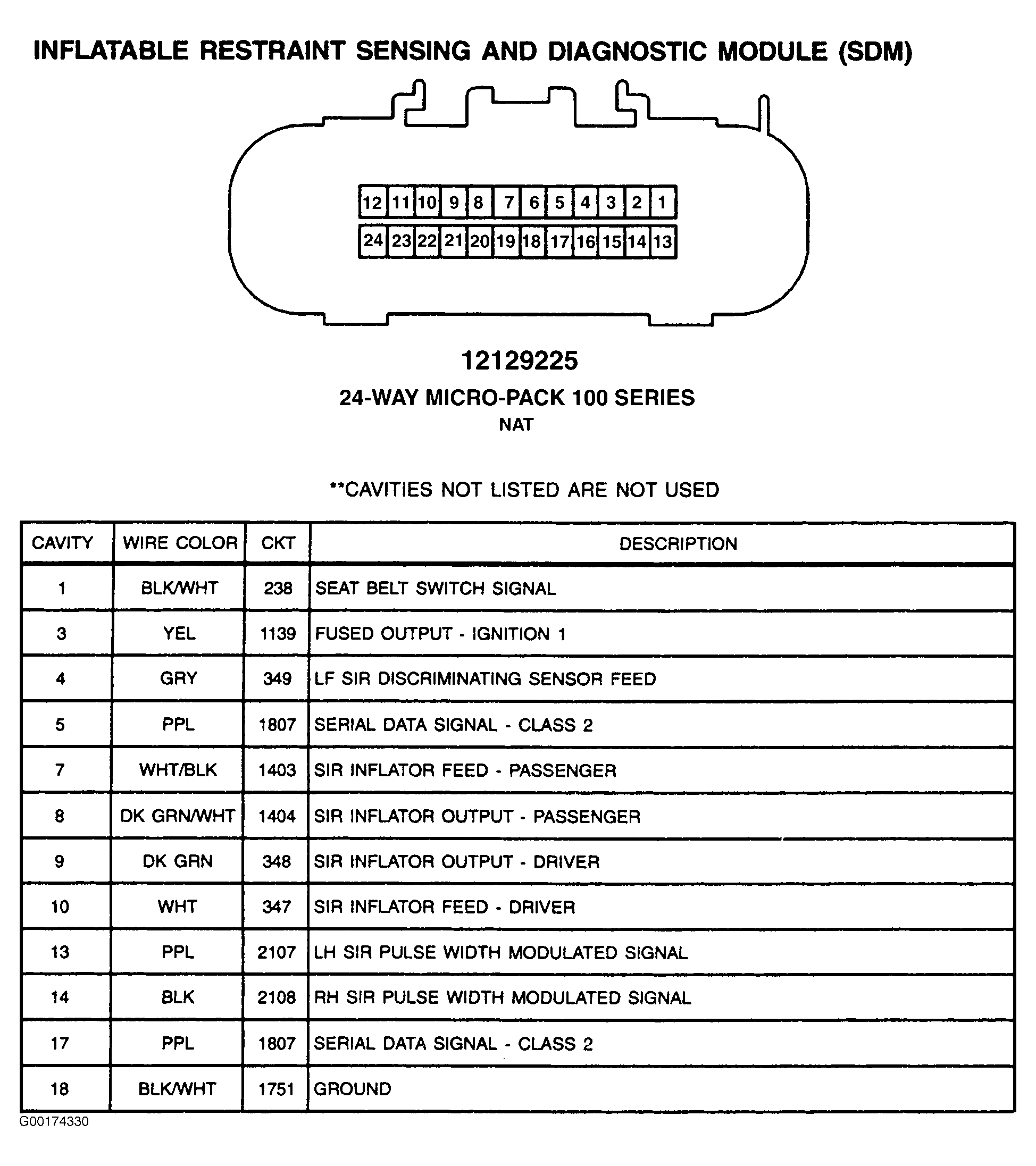

Fig 1: Inflatable Restraint Sensing & Diagnostic Module (SDM) - 24-Pin Connector (Natural)
G00174330Courtesy of GENERAL MOTORS CORP.
