Instrument Panel Cluster (IPC) - C2
Instrument Panel Cluster (IPC) - C2

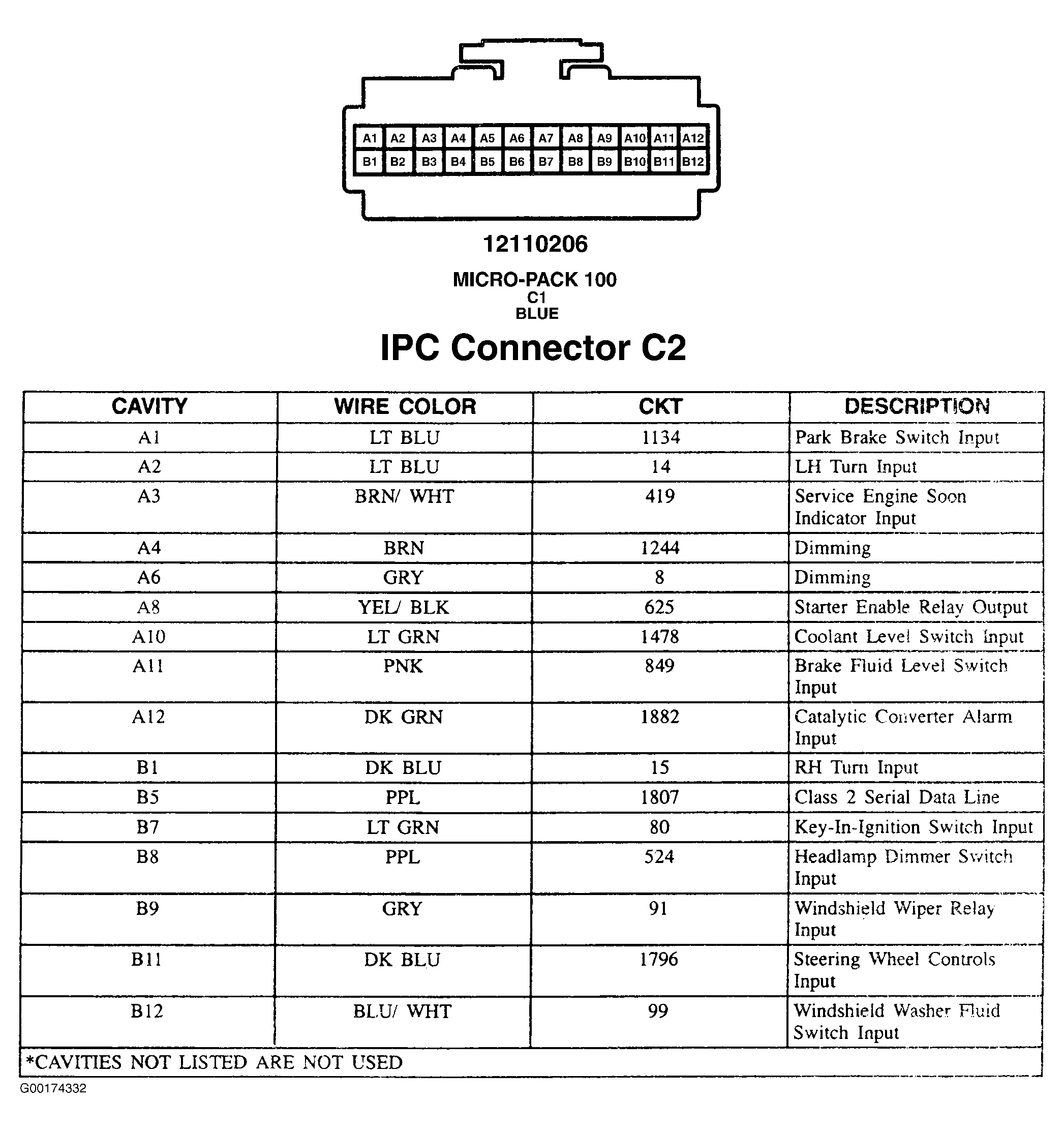

Fig 1: Instrument Panel Cluster (C2) - 24-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
