Memory Seat Module (MSM) - C4

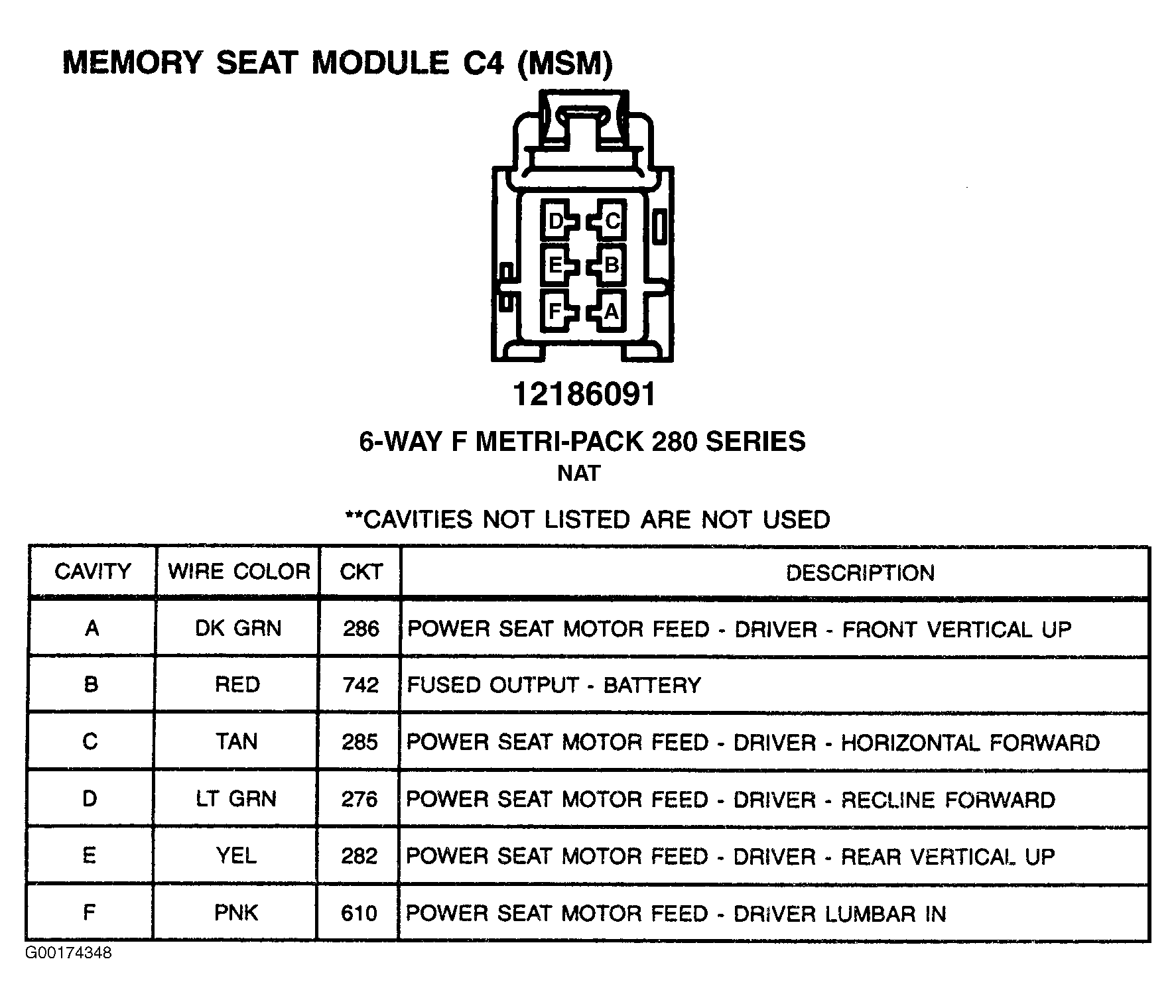

Fig 1: Memory Seat Module (MSM) C4 - 6-Pin Connector (Natural)
G00174348Courtesy of GENERAL MOTORS CORP.
