Seat Relay Module C3 - Left-Hand (DEVILLE)

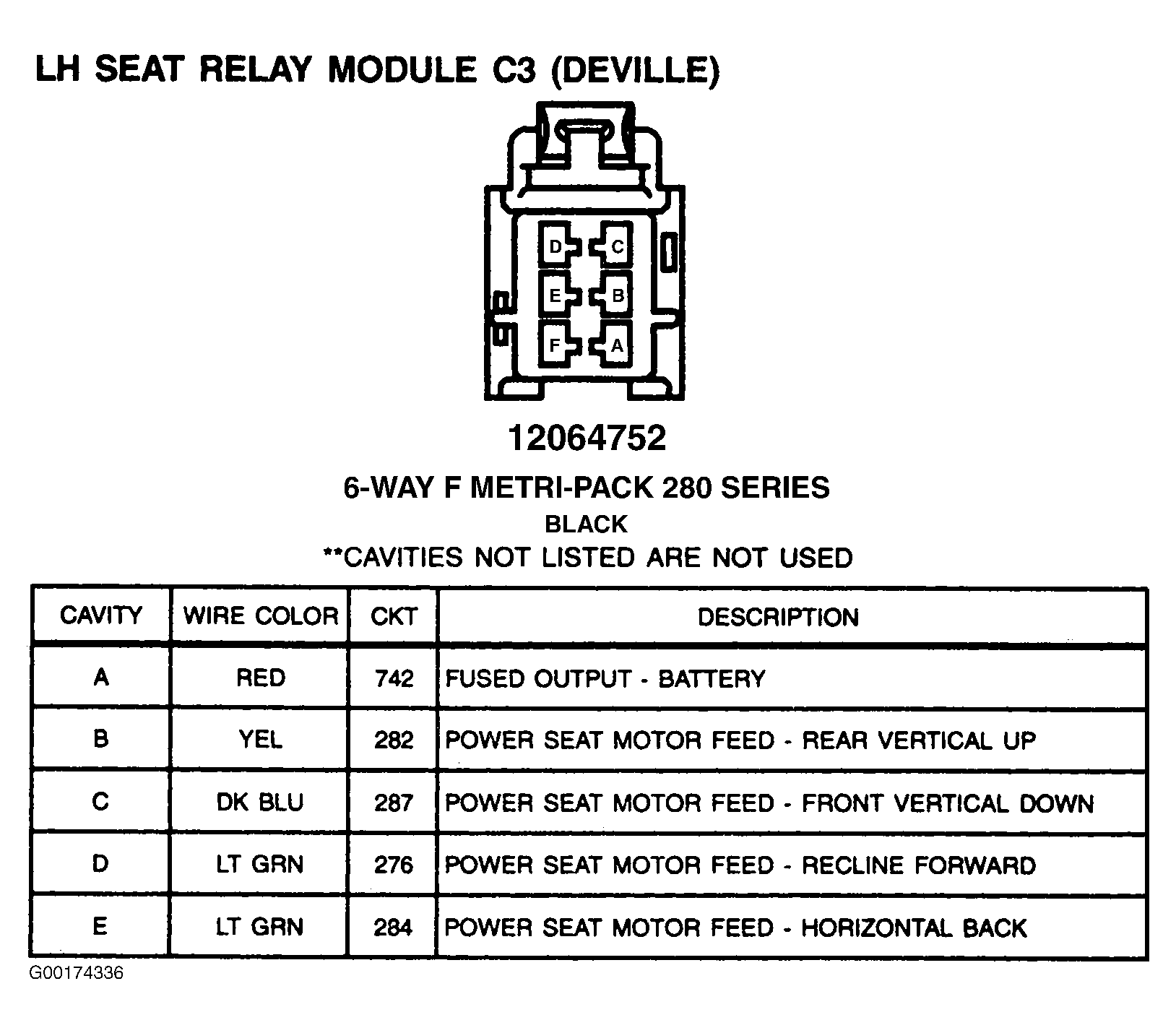

Fig 1: Seat Relay Module C3 - Left-Hand (DeVille) - 6-Pin Connector (Black)
G00174336Courtesy of GENERAL MOTORS CORP.
