PCM Connector C2

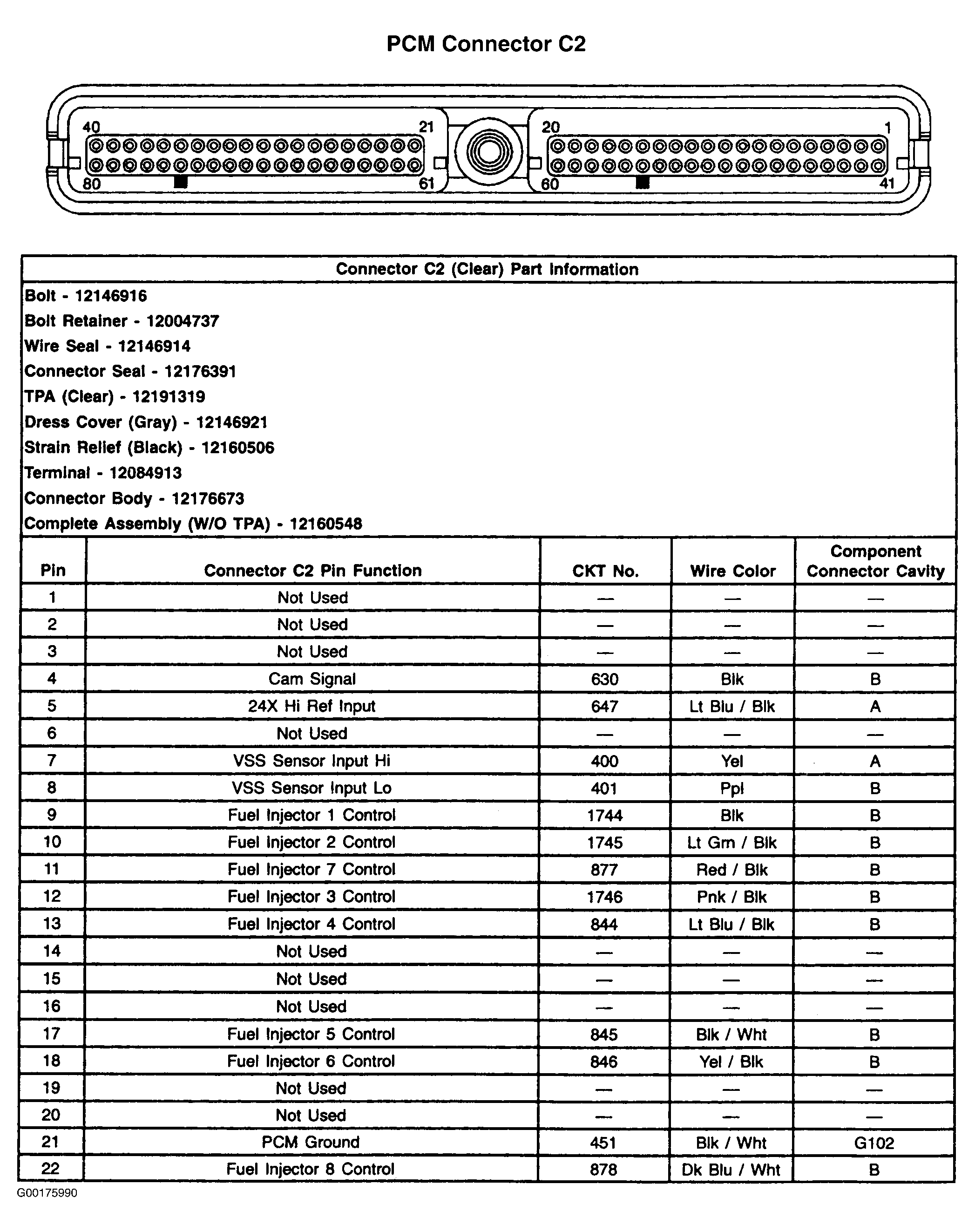

Fig 1: PCM C2 80-Pin Connector (Clear) - Terminal Identification & Legend (1 Of 3)
G00175990Courtesy of GENERAL MOTORS CORP.

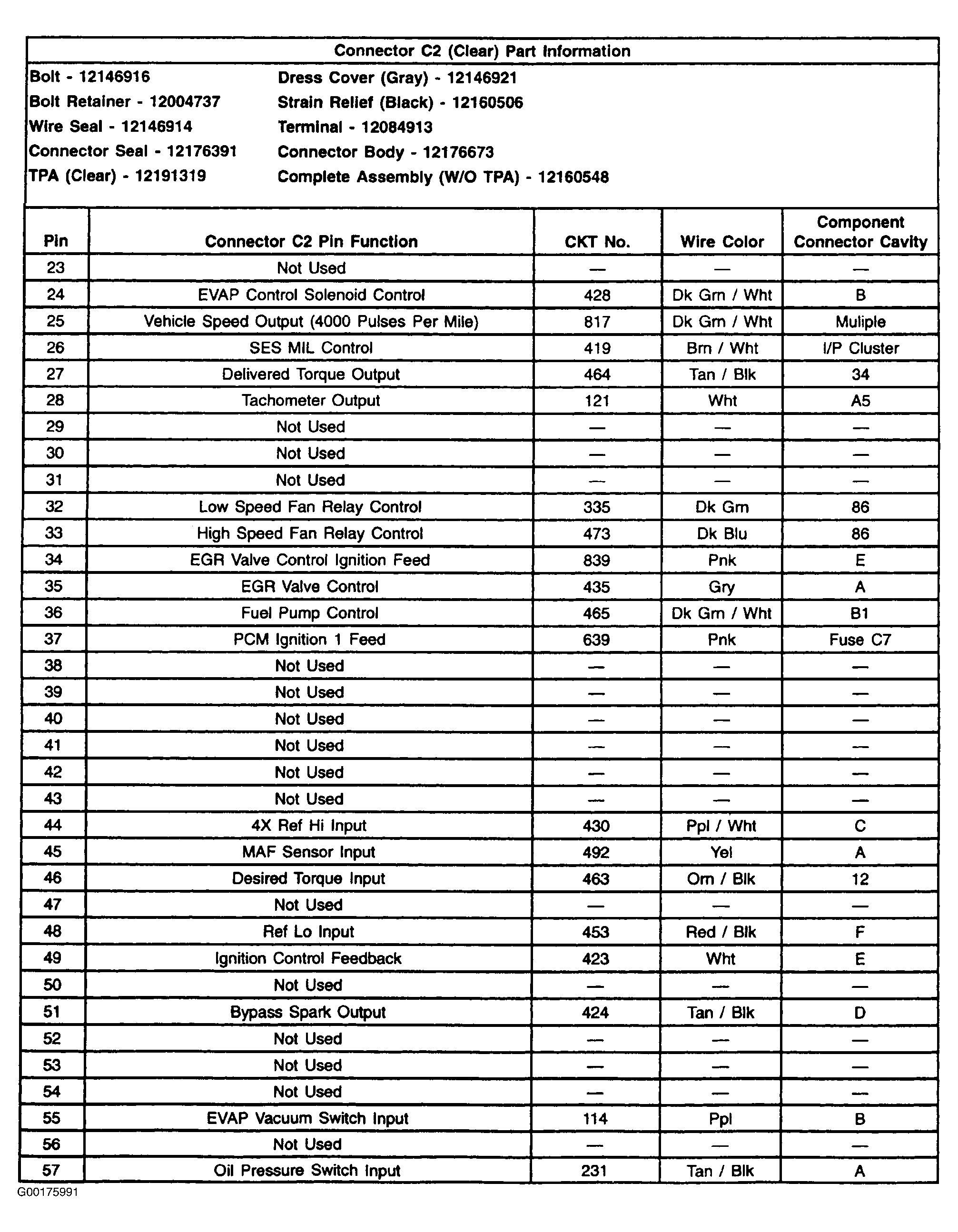

Fig 2: PCM C2 80-Pin Connector (Clear) - Legend (2 Of 3)
G00175991Courtesy of GENERAL MOTORS CORP.

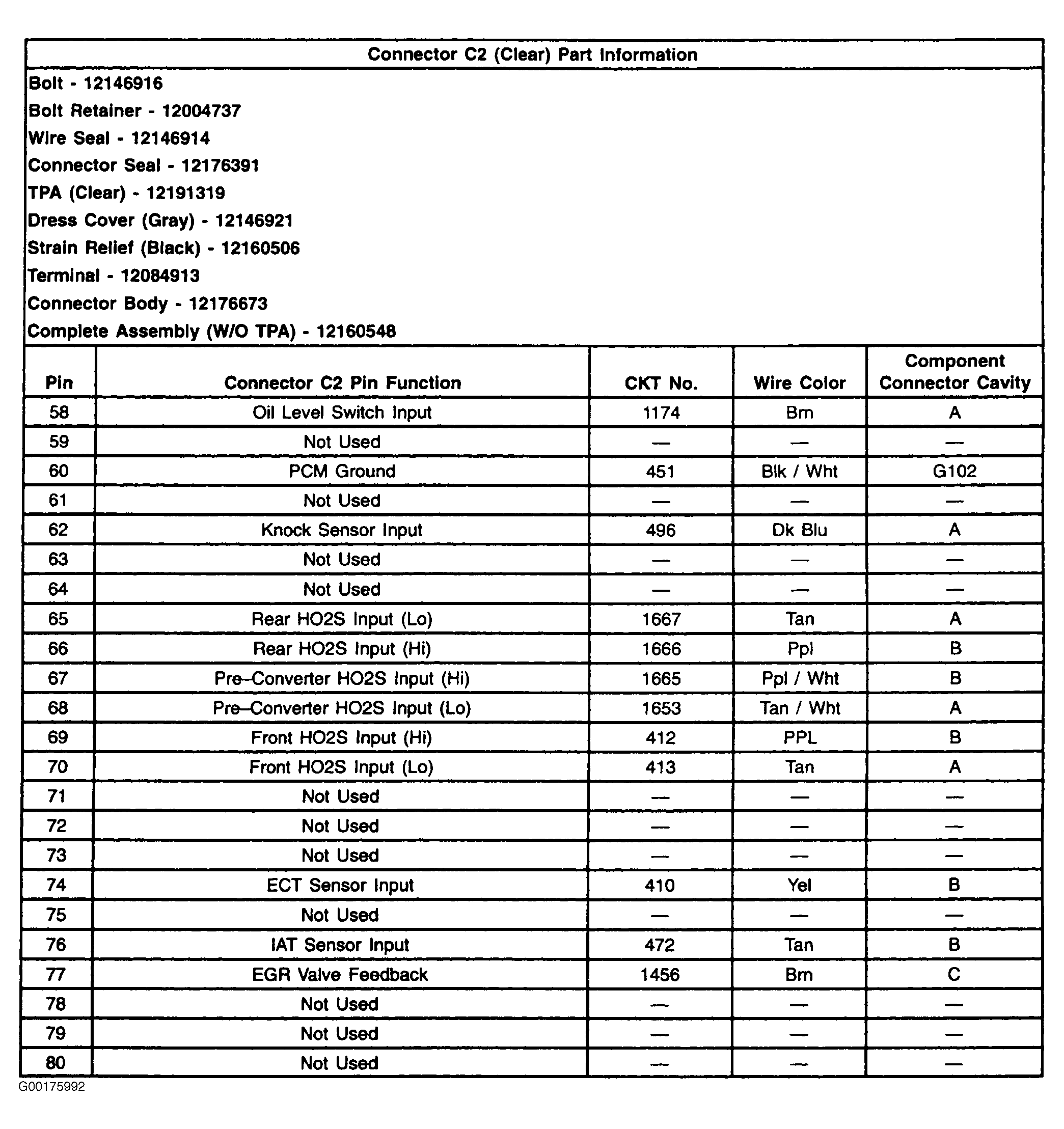

Fig 3: PCM C2 80-Pin Connector (Clear) - Legend (3 Of 3)
G00175992Courtesy of GENERAL MOTORS CORP.
