Front-End Discriminating Sensor: Removal
WARNING: This page is about a different car, the 1998 Cadillac Eldorado and 1998 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

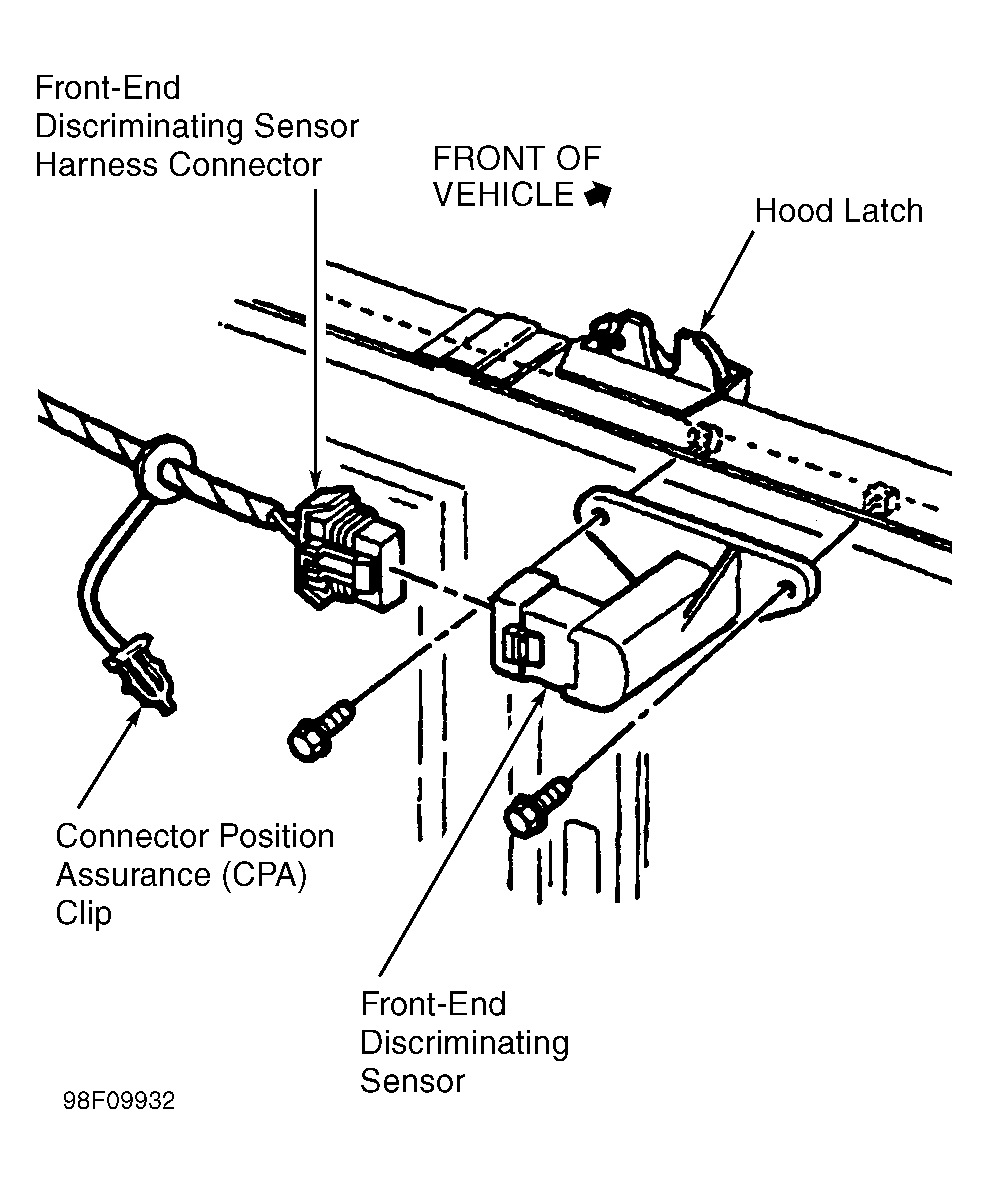

- Remove radiator support cover. Remove CPA clip and disconnect front-end discriminating sensor harness connector. Remove sensor fasteners and sensor from radiator support. See Fig 1 .
