Home › Cadillac › 1997 › Seville STS › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Park Neutral Position (PNP) Switch

Park Neutral Position (PNP) Switch

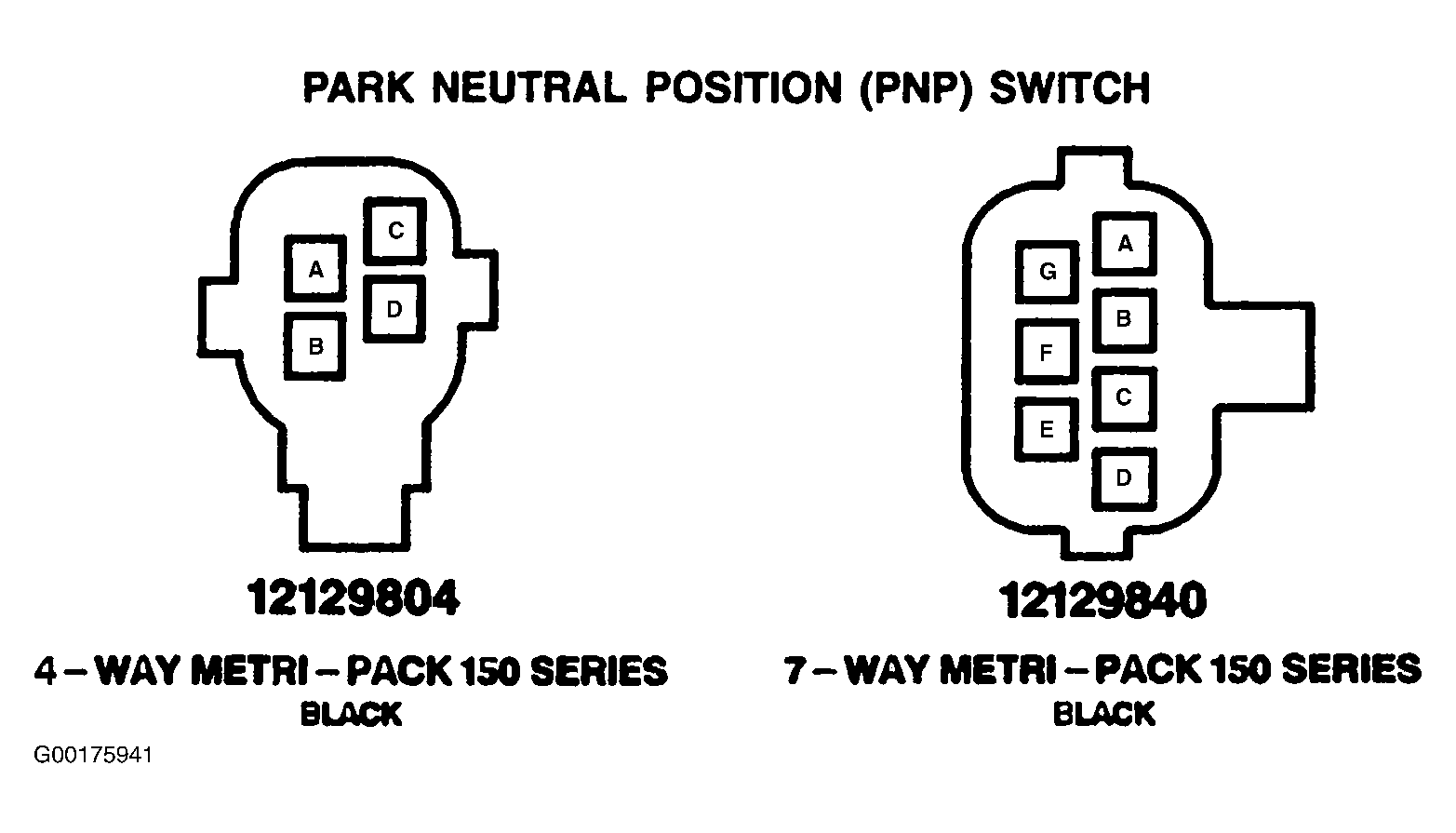

Fig 1: Park Neutral Position (PNP) Switch - 4-Pin Connector (Black), 7-Pin Connector (Black)
G00175941Courtesy of GENERAL MOTORS CORP.
