Radio Amplifier - C1
Radio Amplifier - C1

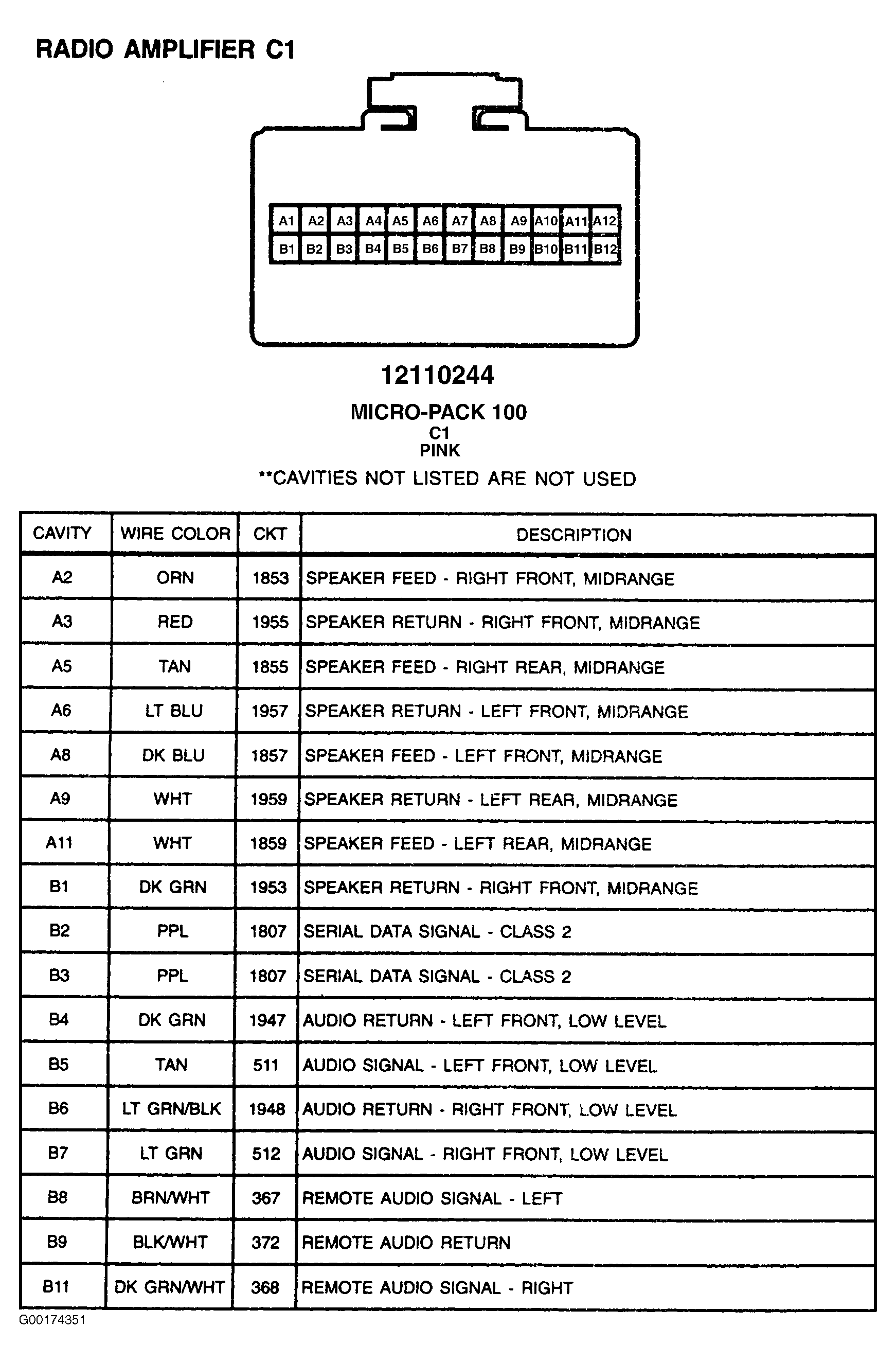

Fig 1: Radio Amplifier (C1) - 24-Pin Connector (Pink)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
