Connector Identification

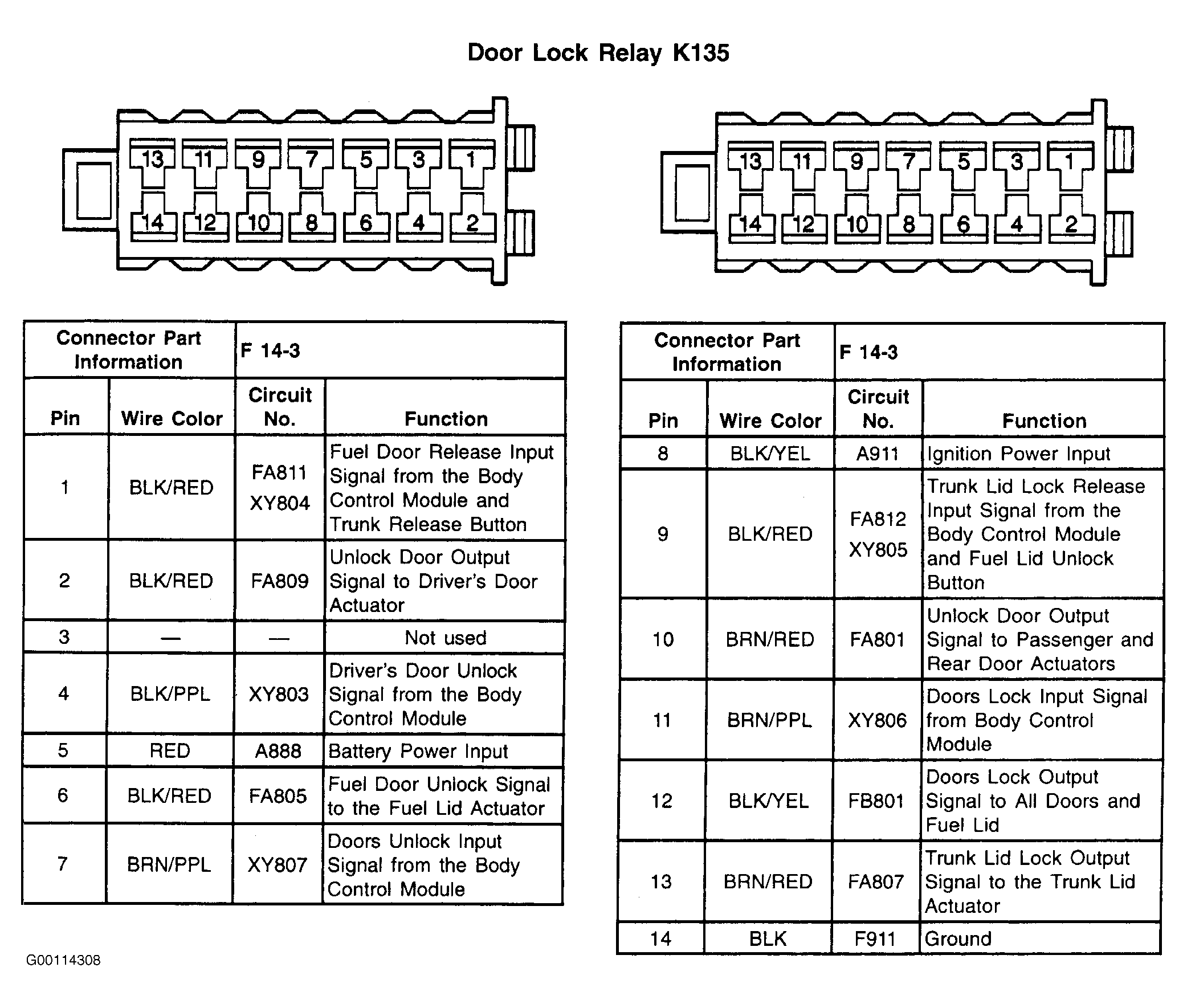

Fig 1: Identifying Door Lock Relay Terminals

Courtesy of GENERAL MOTORS CORP.

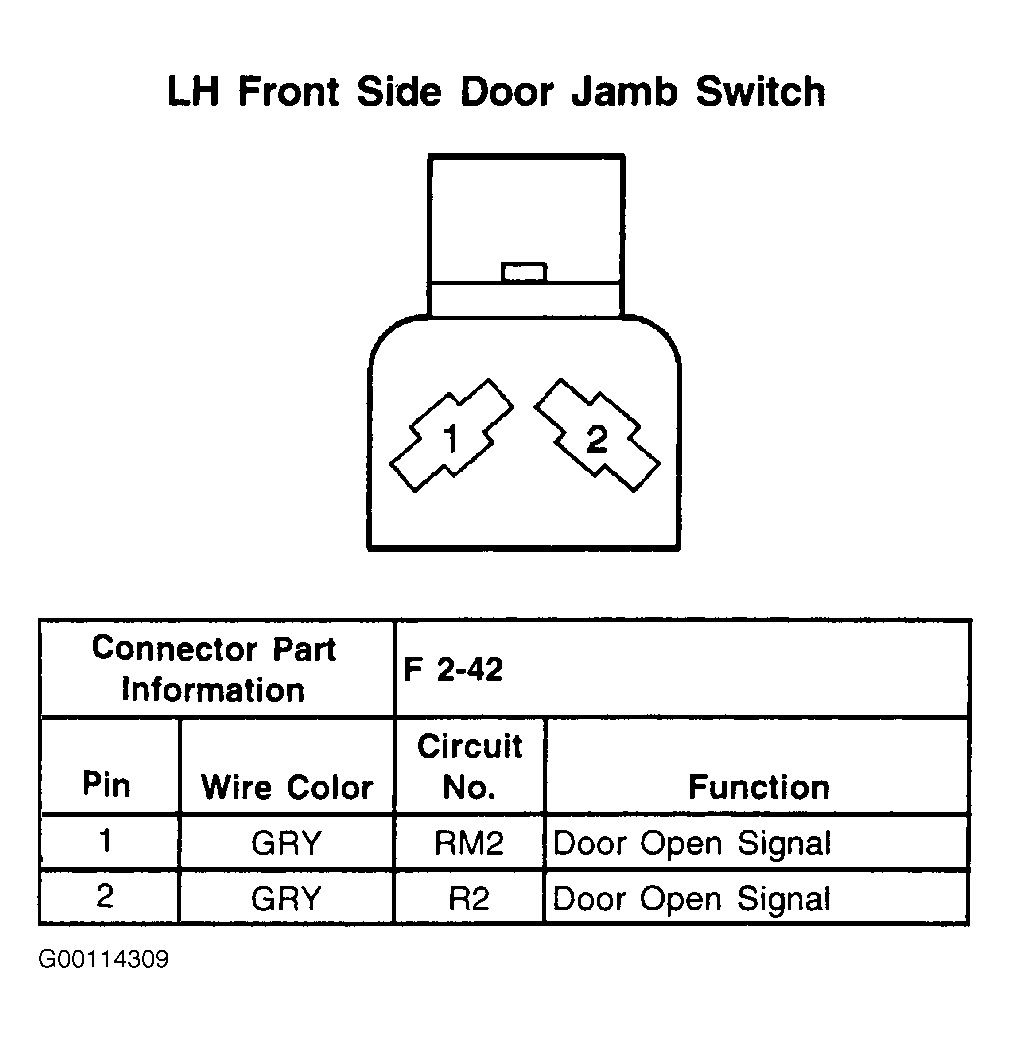

Fig 2: Identifying Door Jamb Switch Terminals

Courtesy of GENERAL MOTORS CORP.

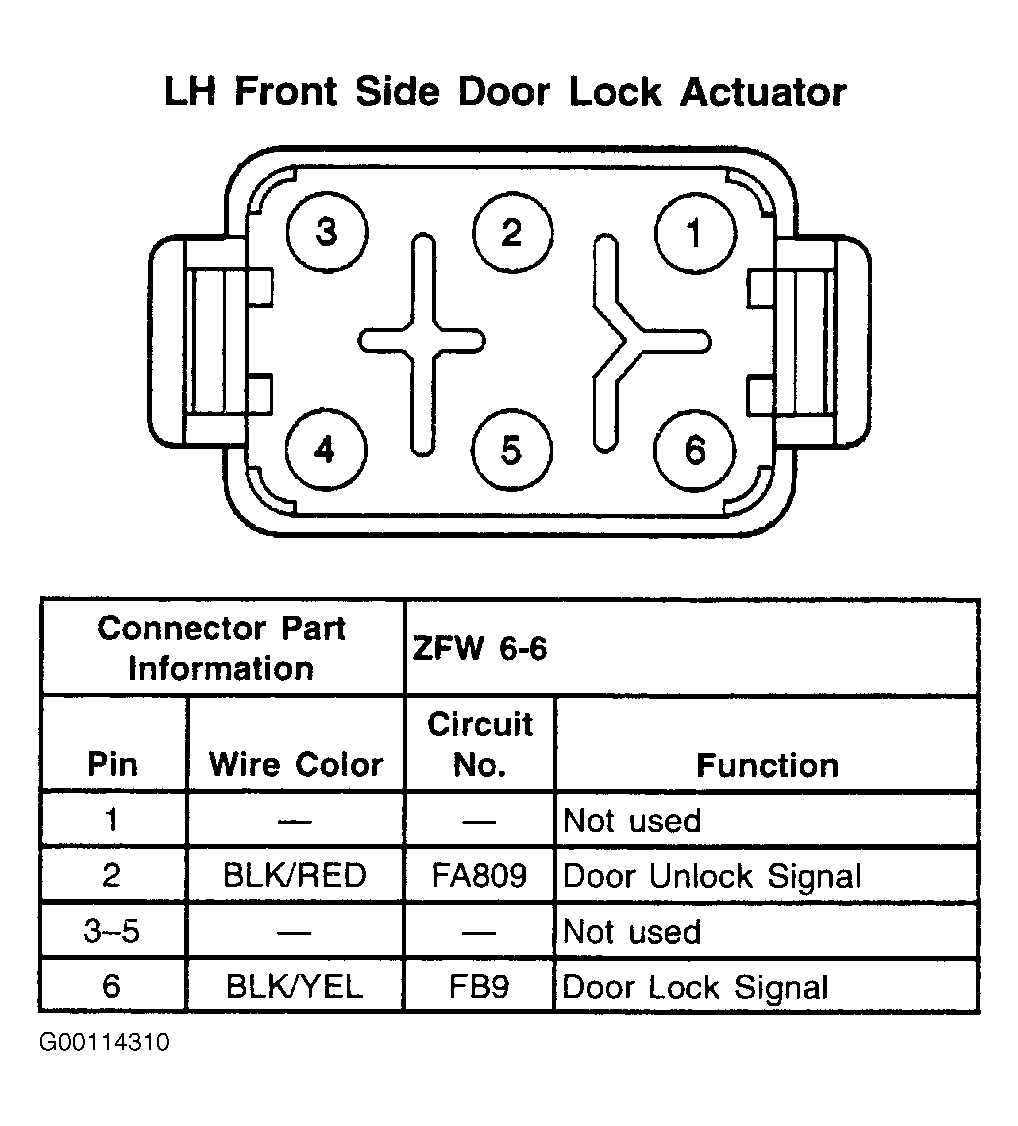

Fig 3: Identifying Front Door Lock Actuator Terminals

Courtesy of GENERAL MOTORS CORP.

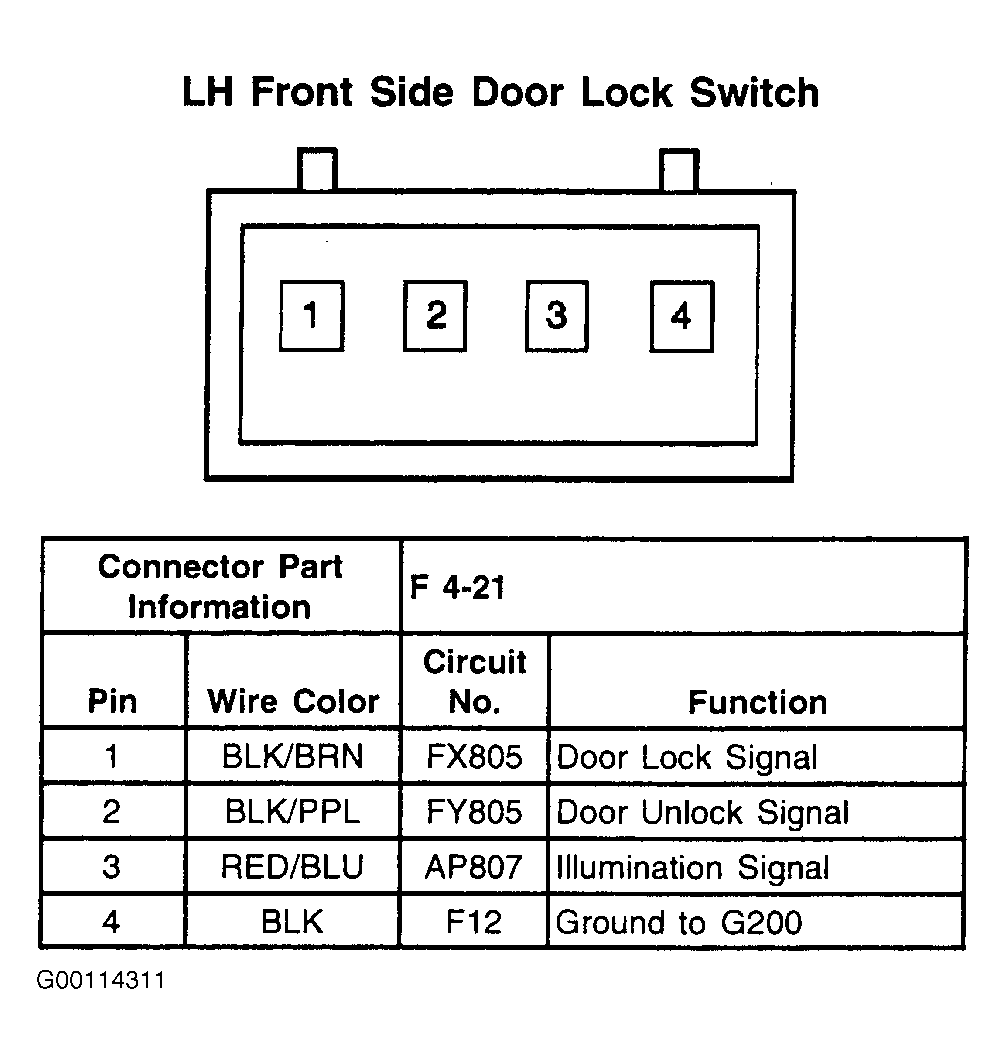

Fig 4: Identifying Door Lock Switch Terminals

Courtesy of GENERAL MOTORS CORP.

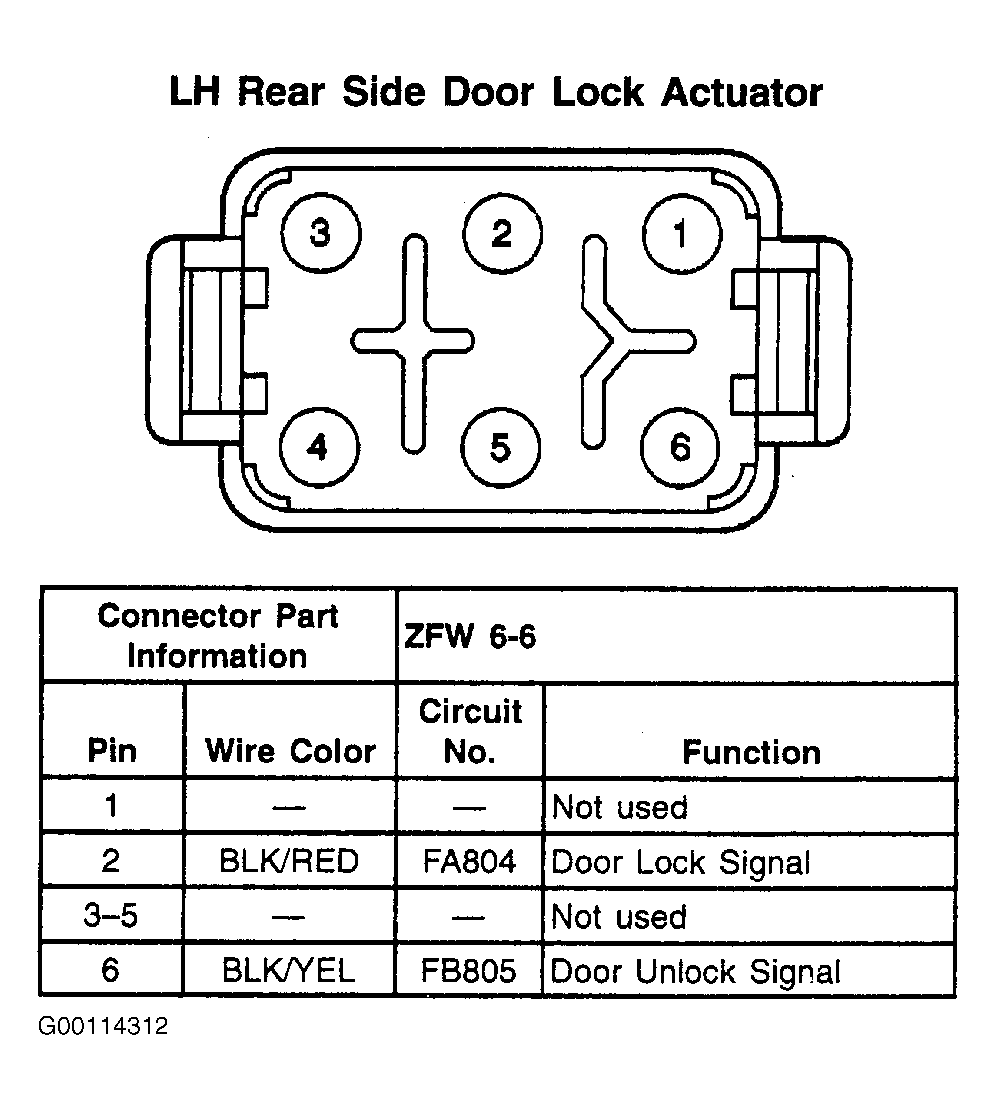

Fig 5: Identifying Rear Door Lock Actuator Terminals

Courtesy of GENERAL MOTORS CORP.
