Tilt Steering Column

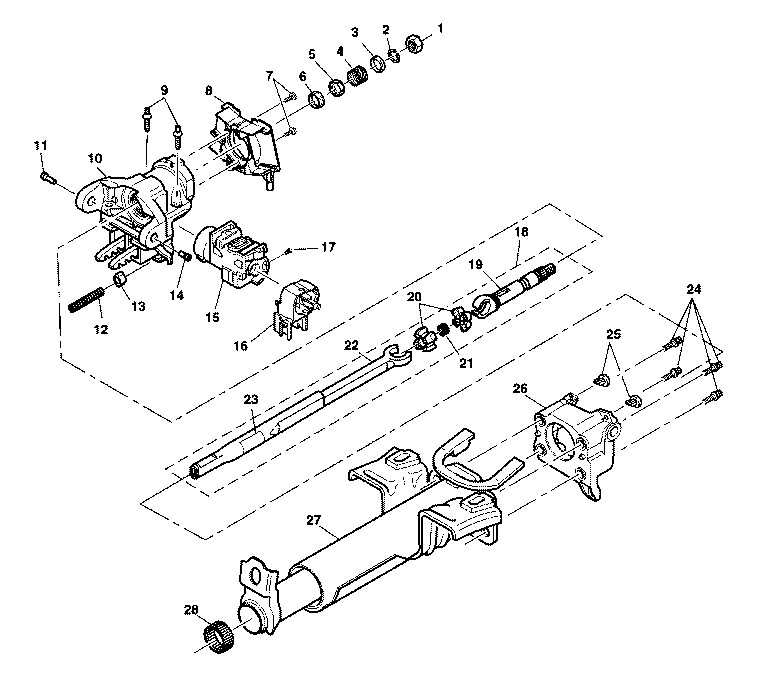

Fig 1: Steering Column Disassembled View
GM242644Courtesy of GENERAL MOTORS CORP.
  1. Hexagon Jam Nut
  2. Bearing Retainer
  3. Spring Retainer
  4. Upper Bearing Spring
  5. Inner Race Seat
  6. Inner Race
  7. Support Screw
  8. Signal Switch Housing
  9. Shear Bolt
  10. Steering Column Housing
  11. Pivot Pin
  12. Wheel Tilt Spring
  13. Spring Retainer
  14. Pivot Pin
  15. Lock Cylinder Housing Assembly
  16. Ignition Switch Assembly
  17. Set Screw
  18. Steering Shaft Assembly
  19. Race and Upper Shaft Assembly
  20. Centering Sphere
  21. Joint Preload Spring
  22. Lower Steering Shaft Assembly
  23. Warning Label
  24. Support Screw
  25. Tilt Bumper
  26. Steering Column Housing Support
  27. Steering Column Jacket Assembly
  28. Lower Shaft Bearing Assembly
