Connector Identification

WARNING: This page is about a different car, the 1997 Cadillac Seville, 1997 Cadillac Eldorado, and 1997 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To identify SIR wiring connector terminals, see Fig 1 .

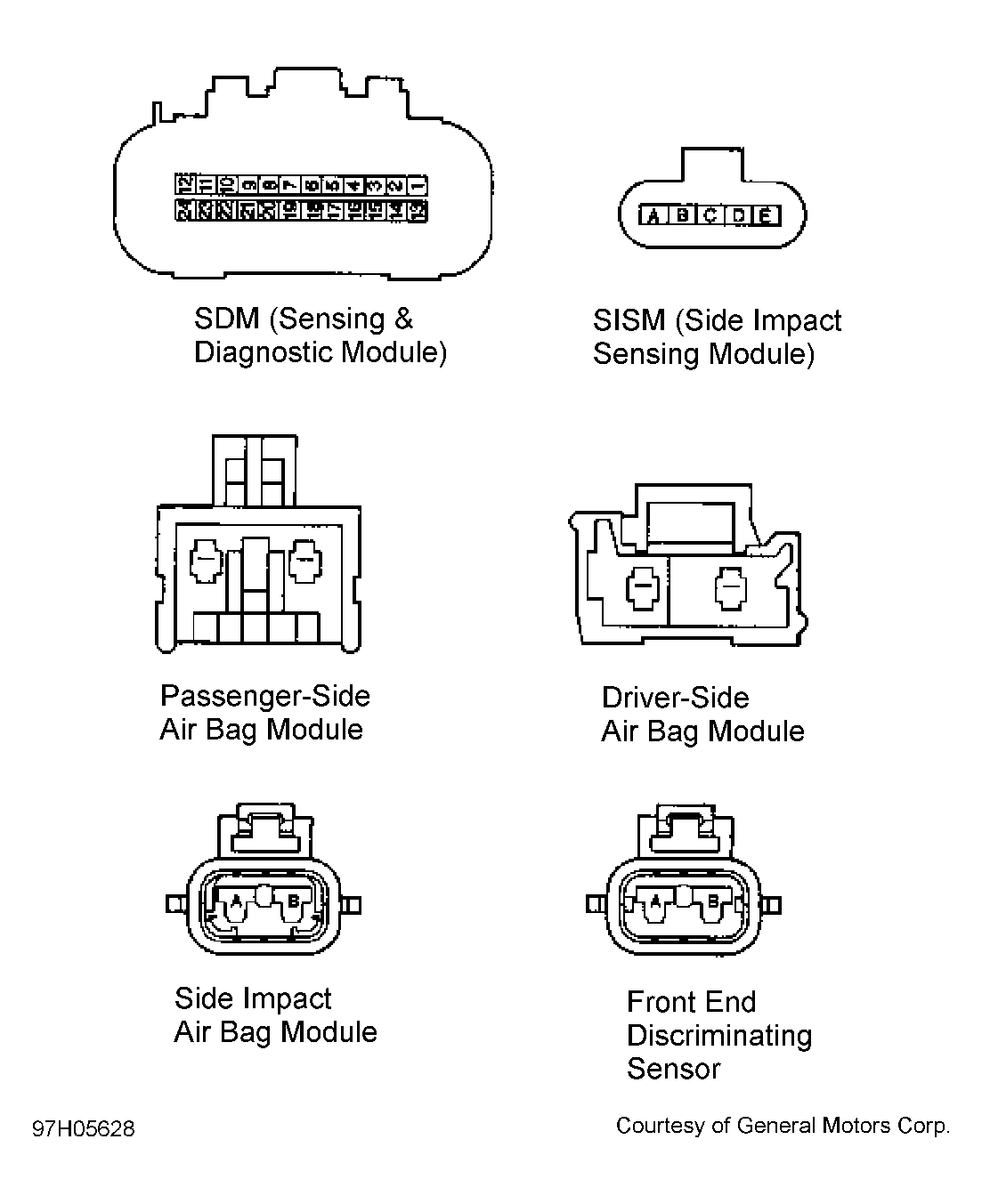

Fig 1: Identifying SIR Wiring Connector Terminals

Courtesy of GENERAL MOTORS CORP.
