Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

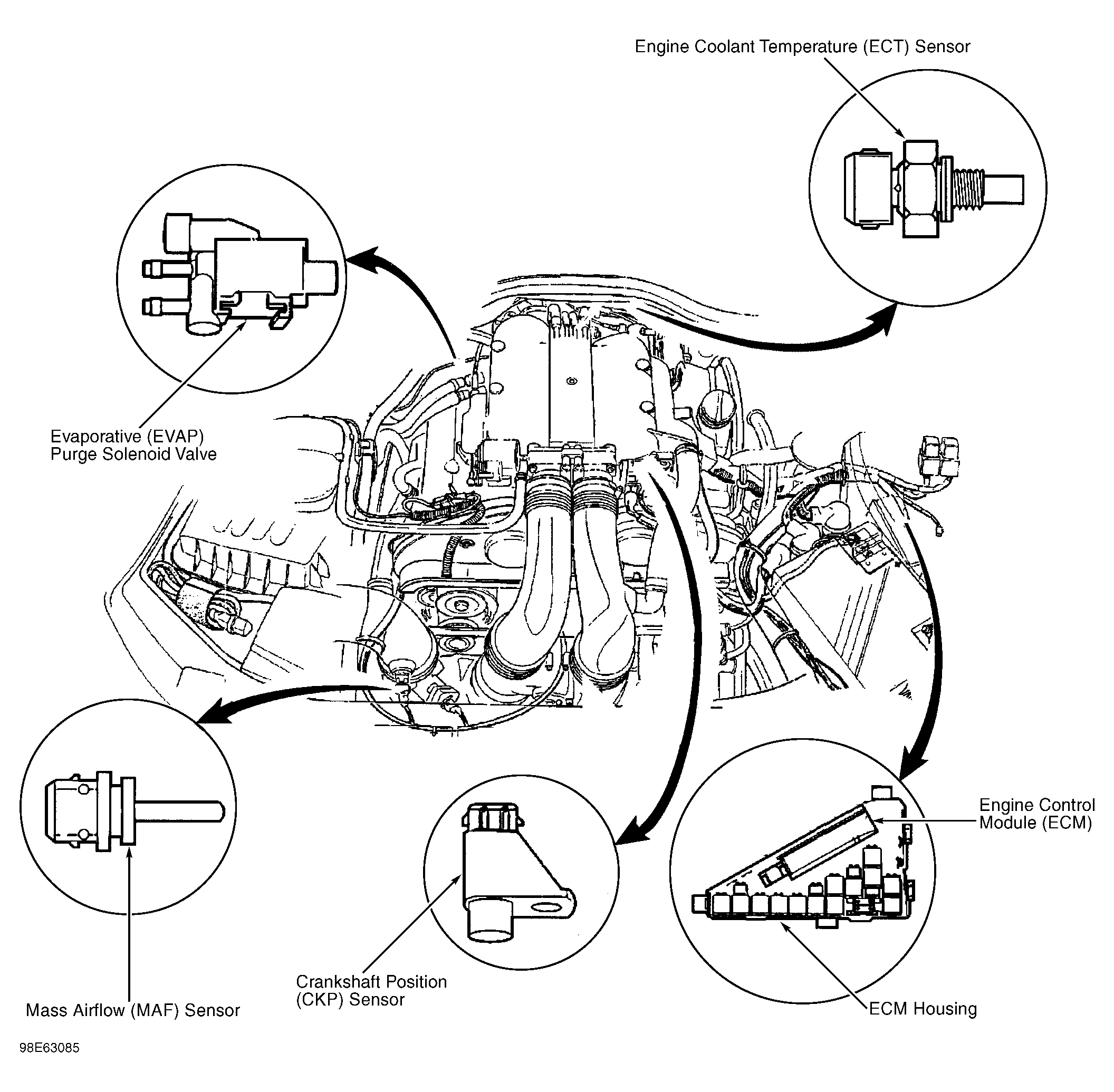

Fig 1: Top Of Engine

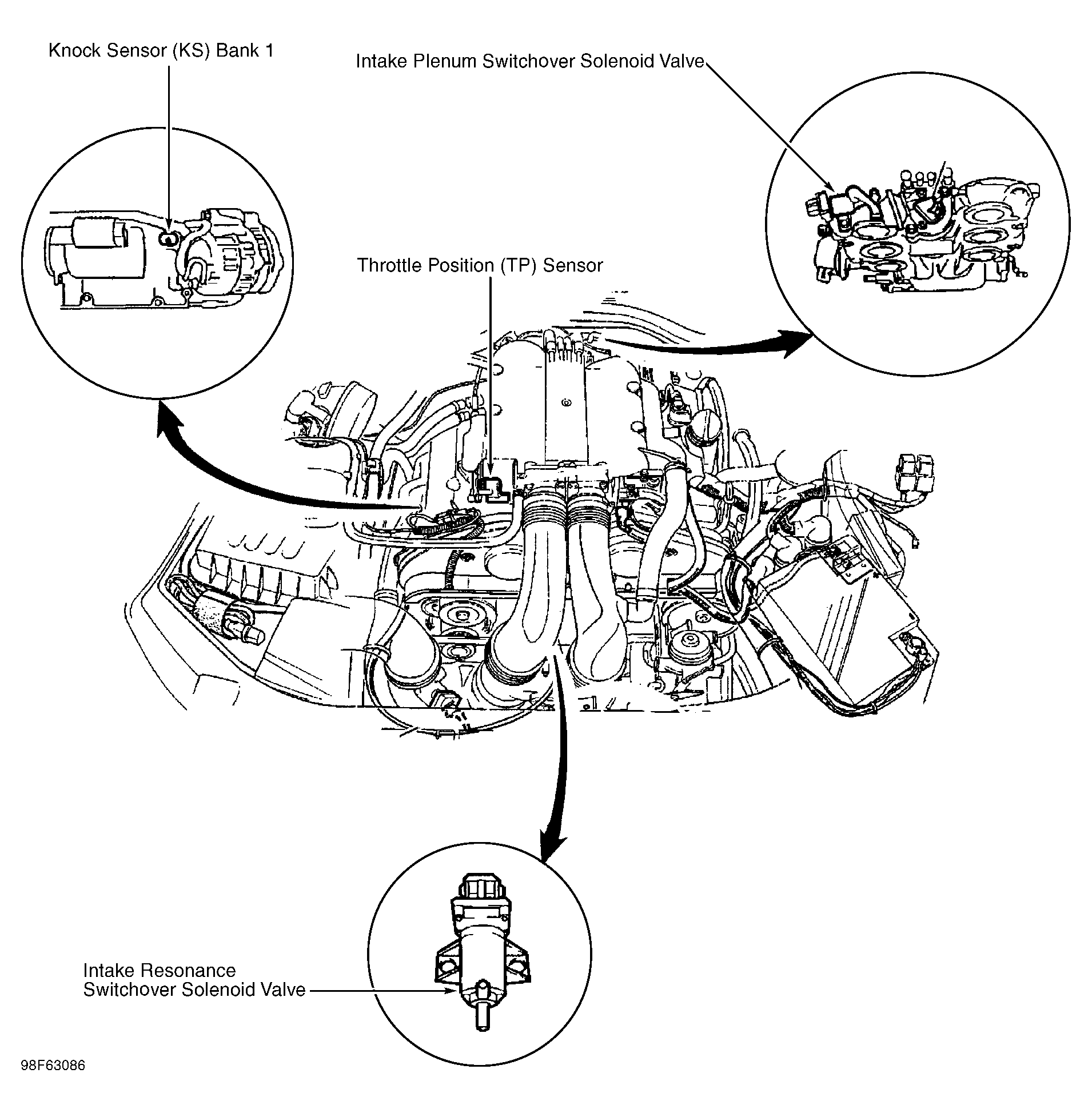

Fig 2: Top Of Engine

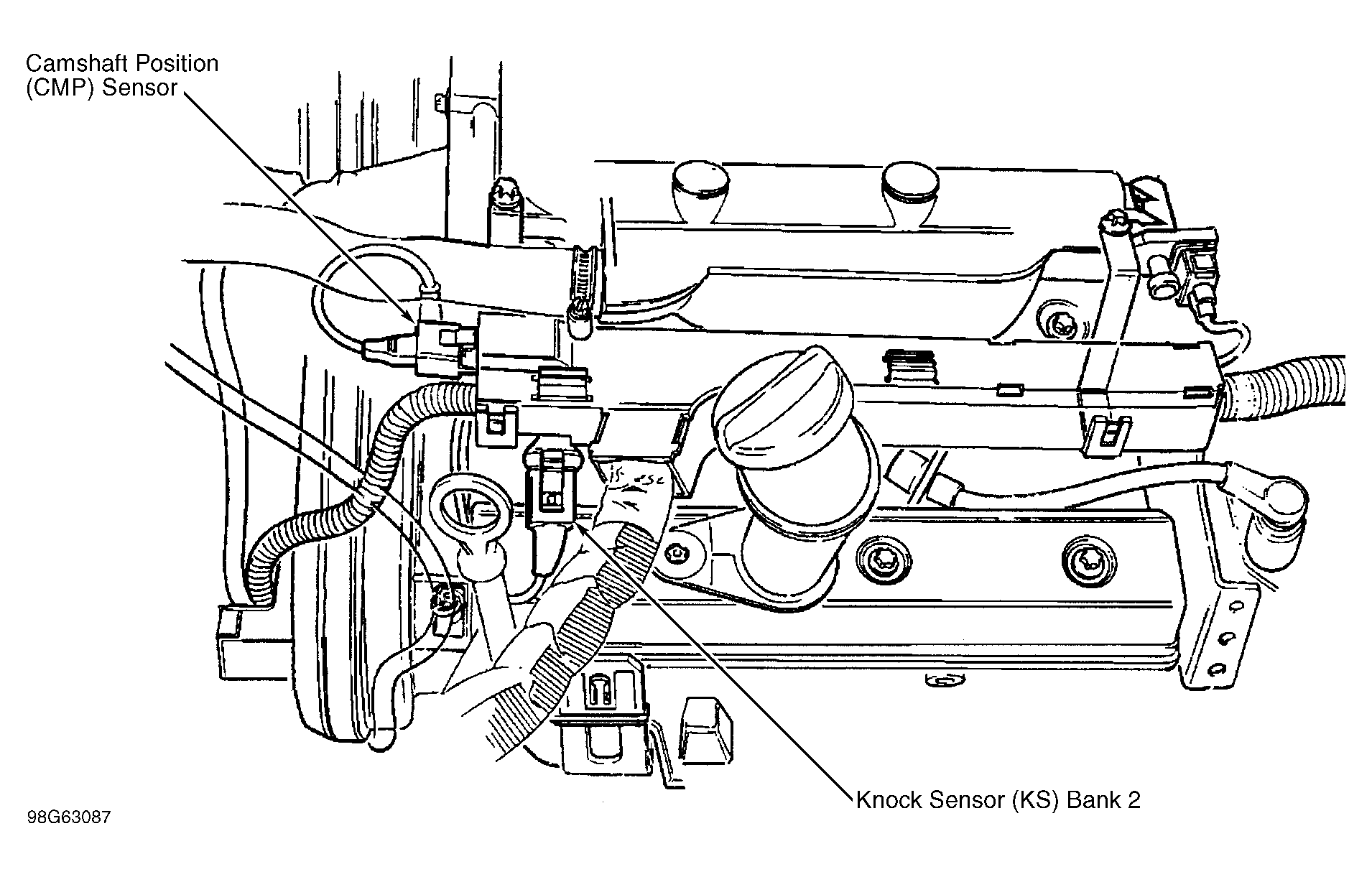

Fig 3: Front Of engine

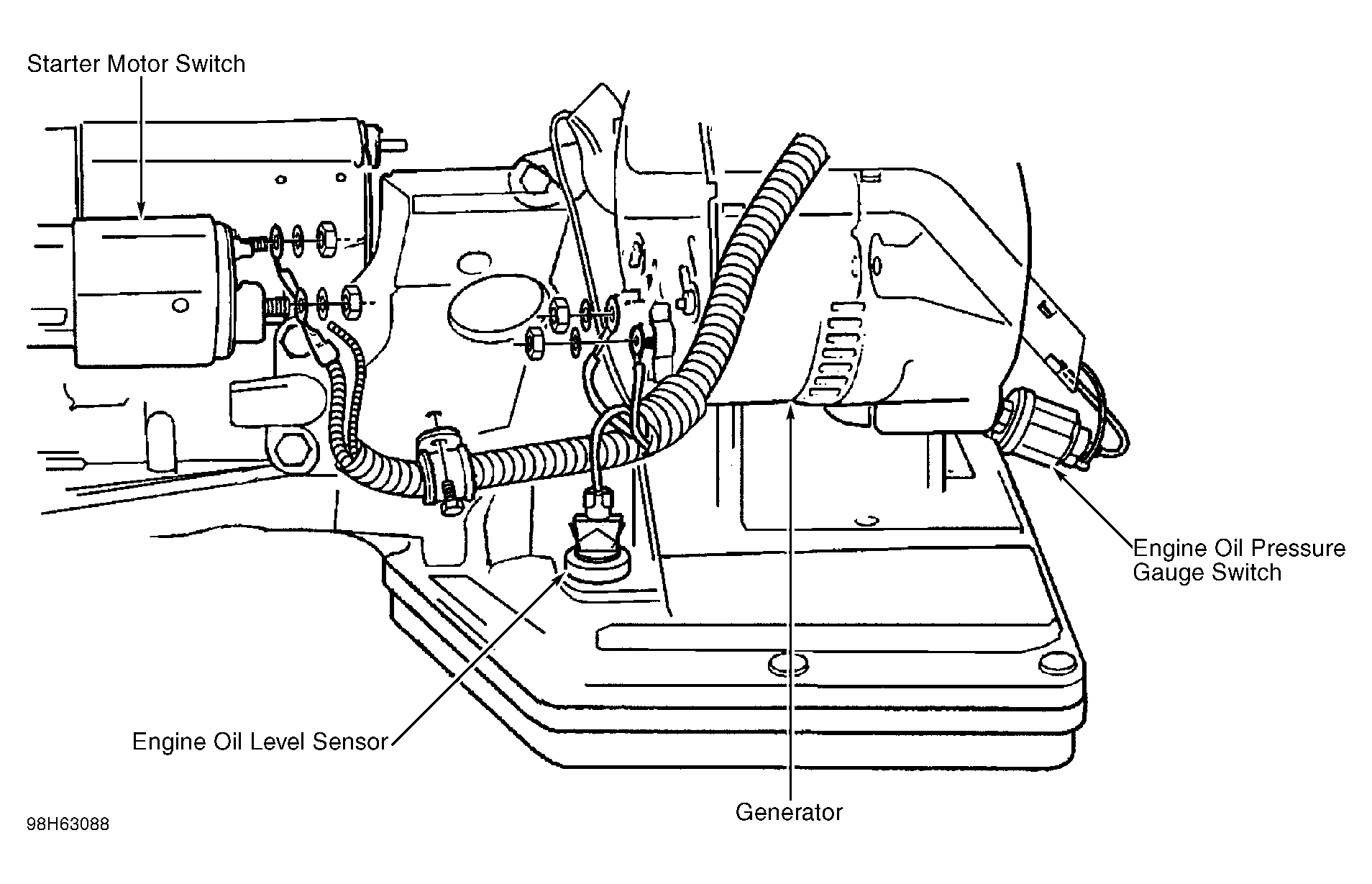

Fig 4: Lower Front Of Engine

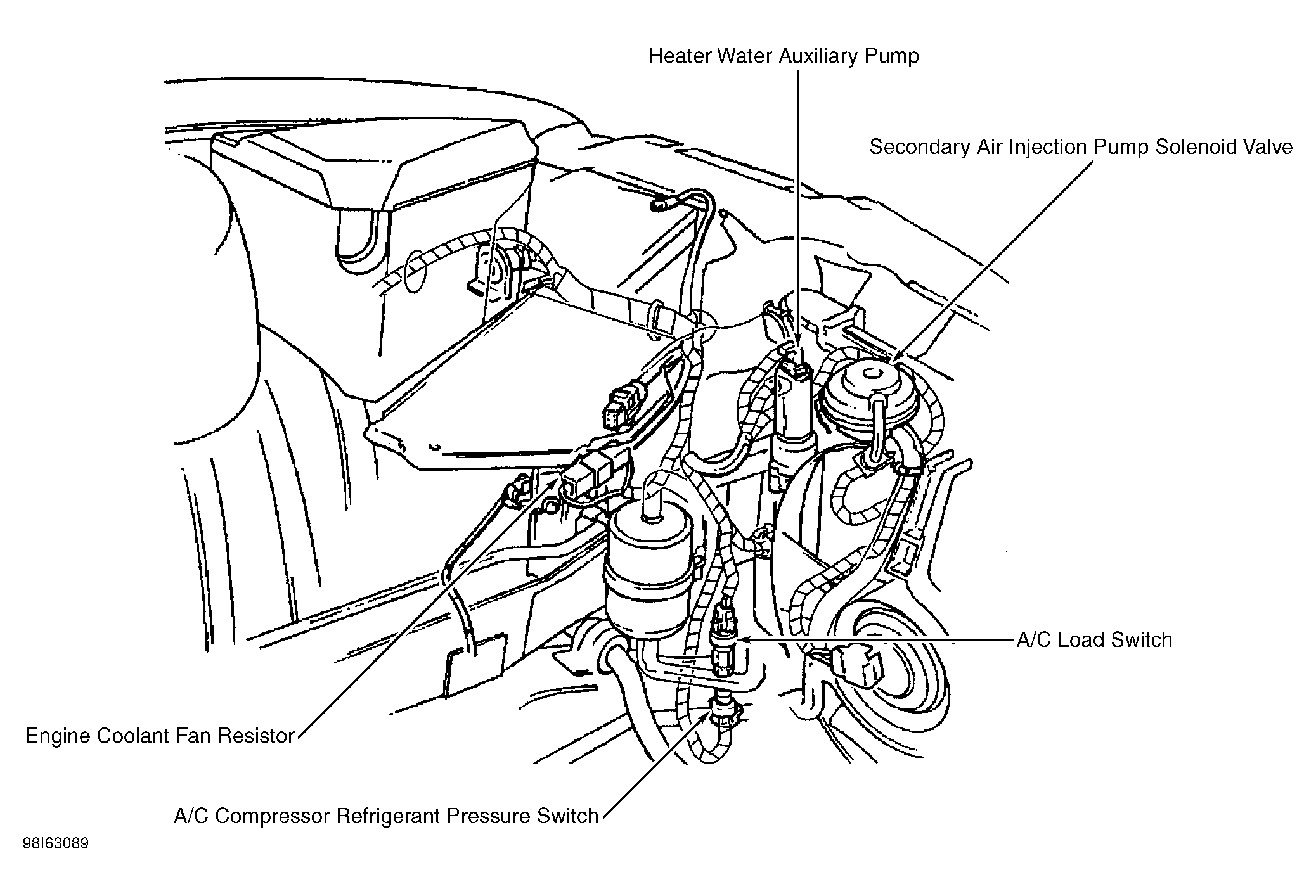

Fig 5: Left Front Of Engine Compartment

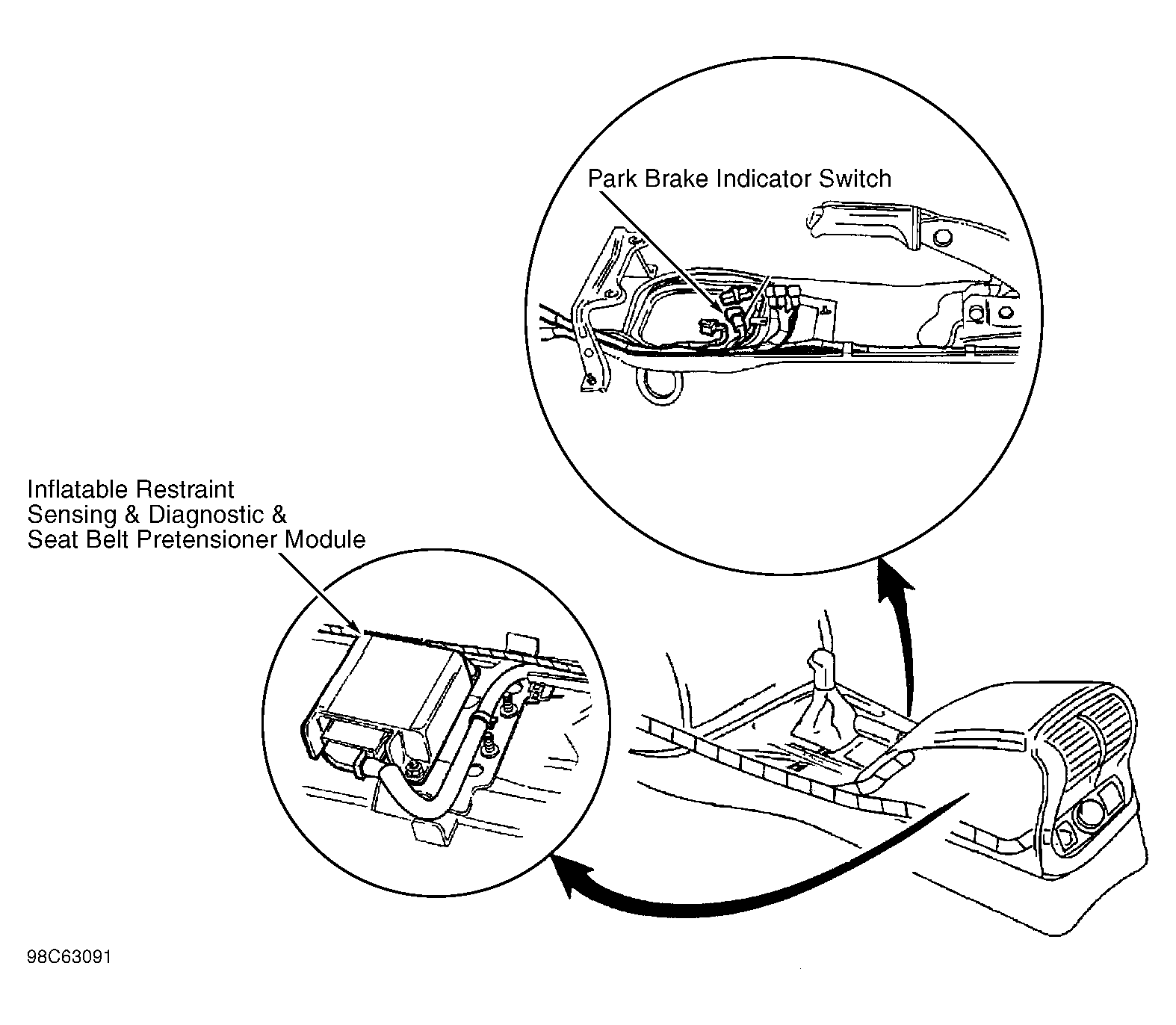

Fig 6: Center Console

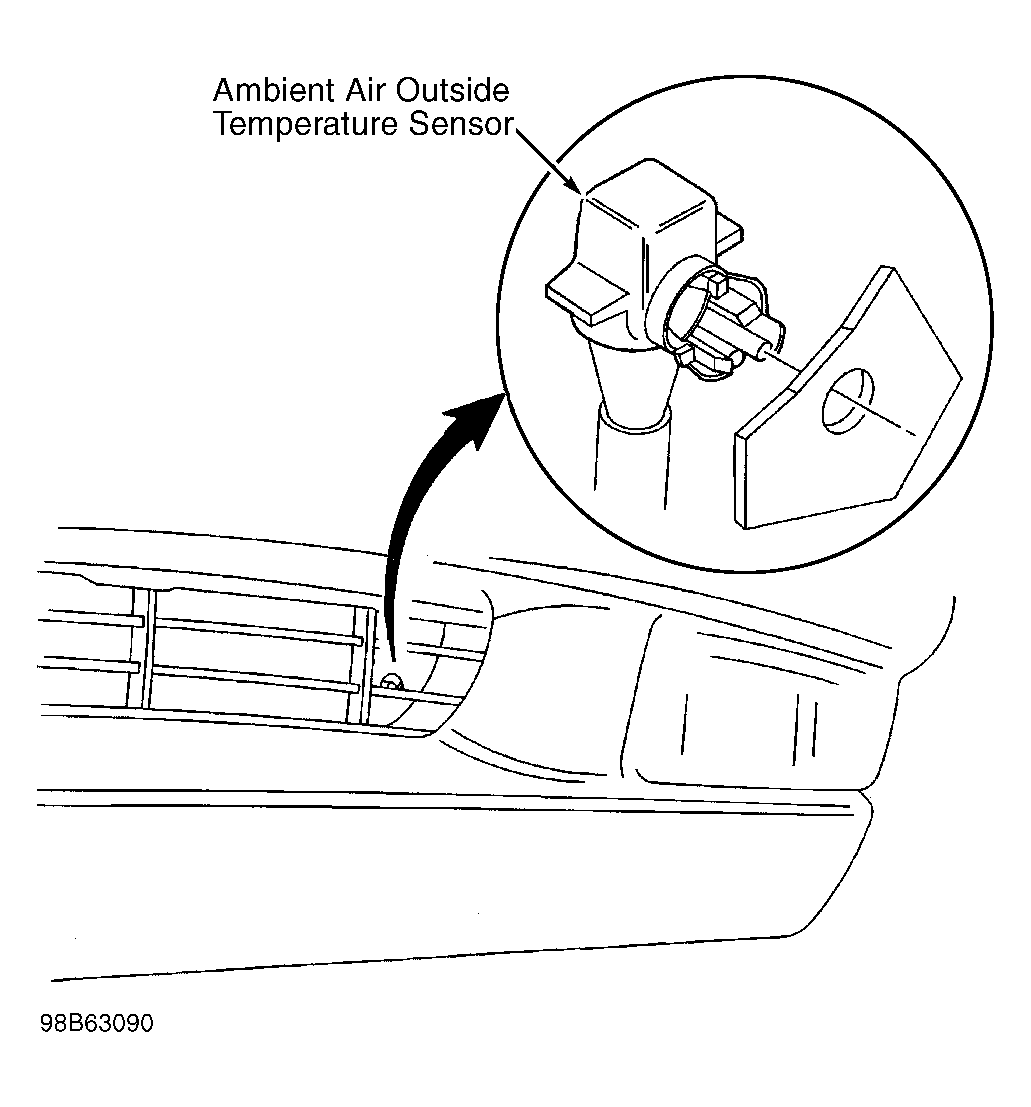

Fig 7: Grille

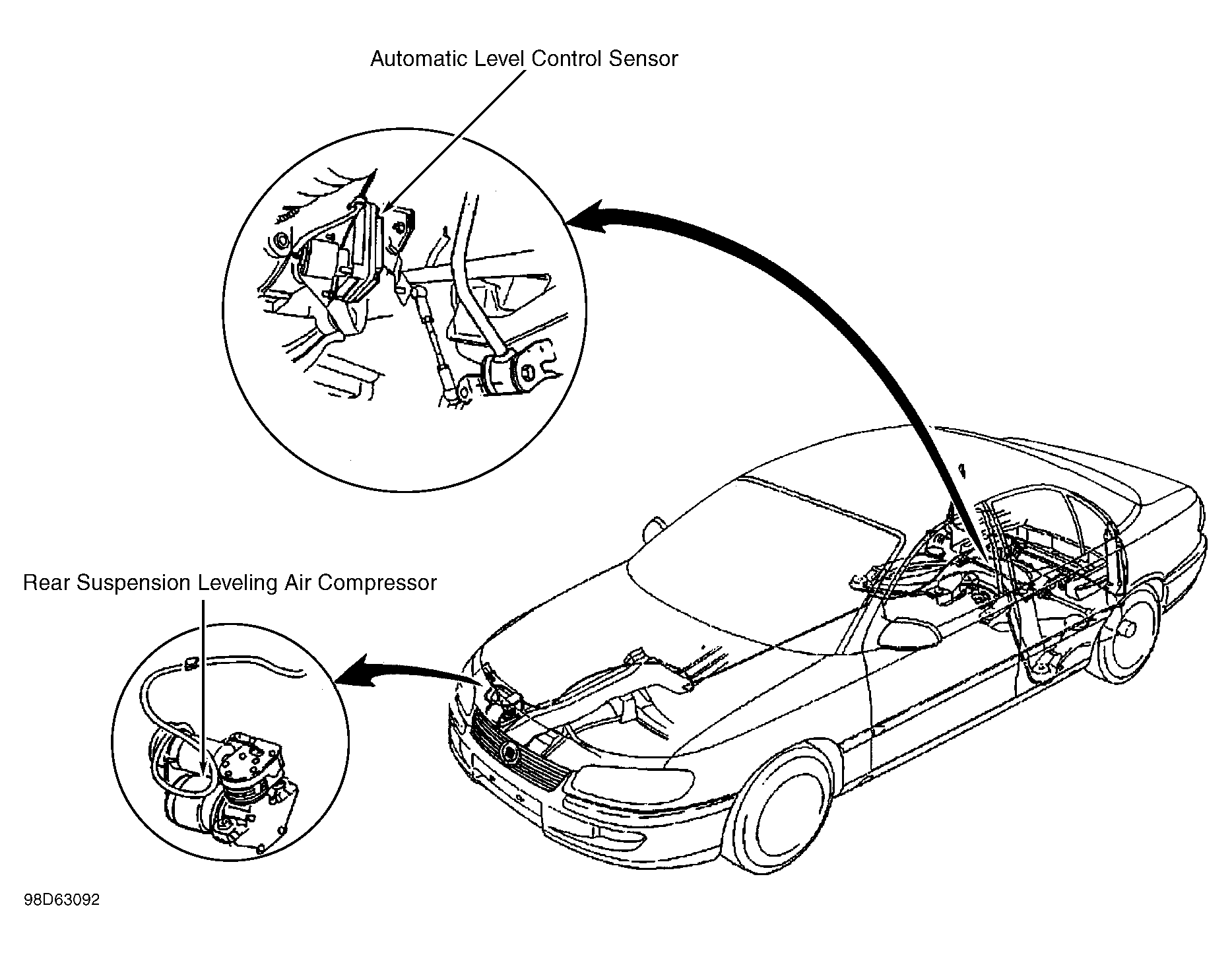

Fig 8: Vehicle
