Instrument Panel Fuse Block
Instrument Panel Fuse Block
NOTE:
Instrument panel fuse block is located on the lower left hand side of the steering column, mounted to the lower instrument panel. See
Fig 1
.

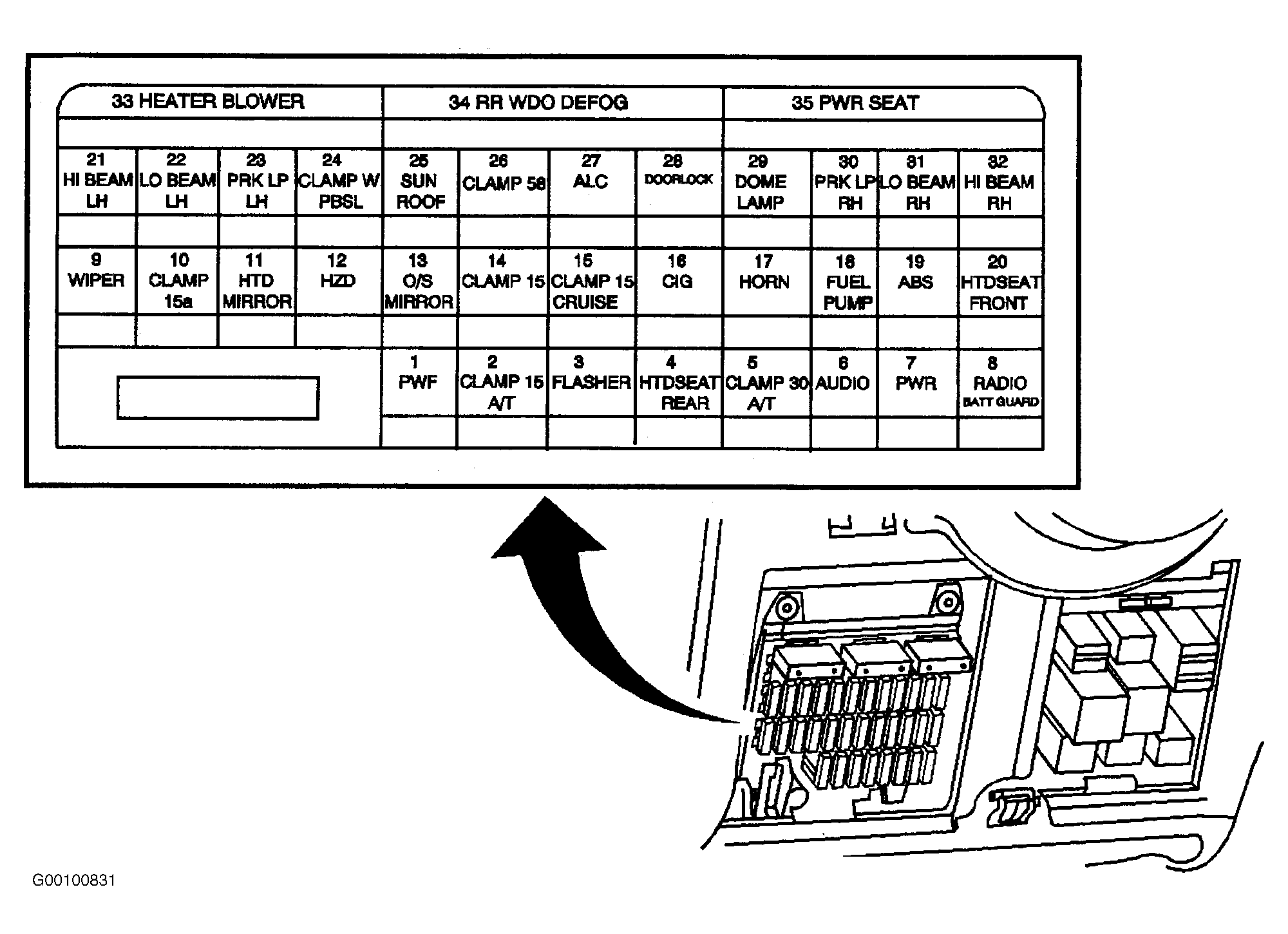

Fig 1: Locating & Identifying Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

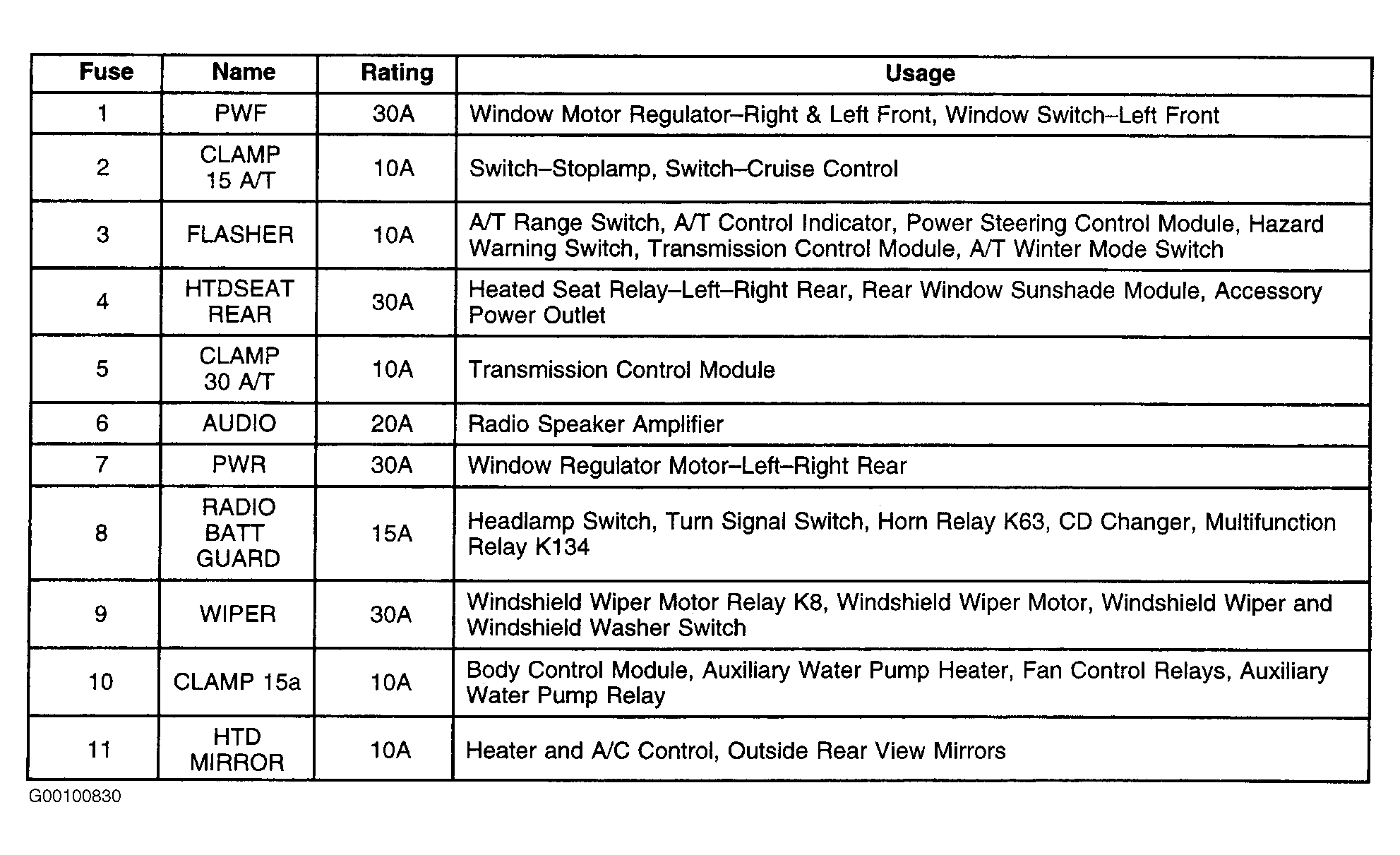

Fig 2: Instrument Panel Fuse Block Legend (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

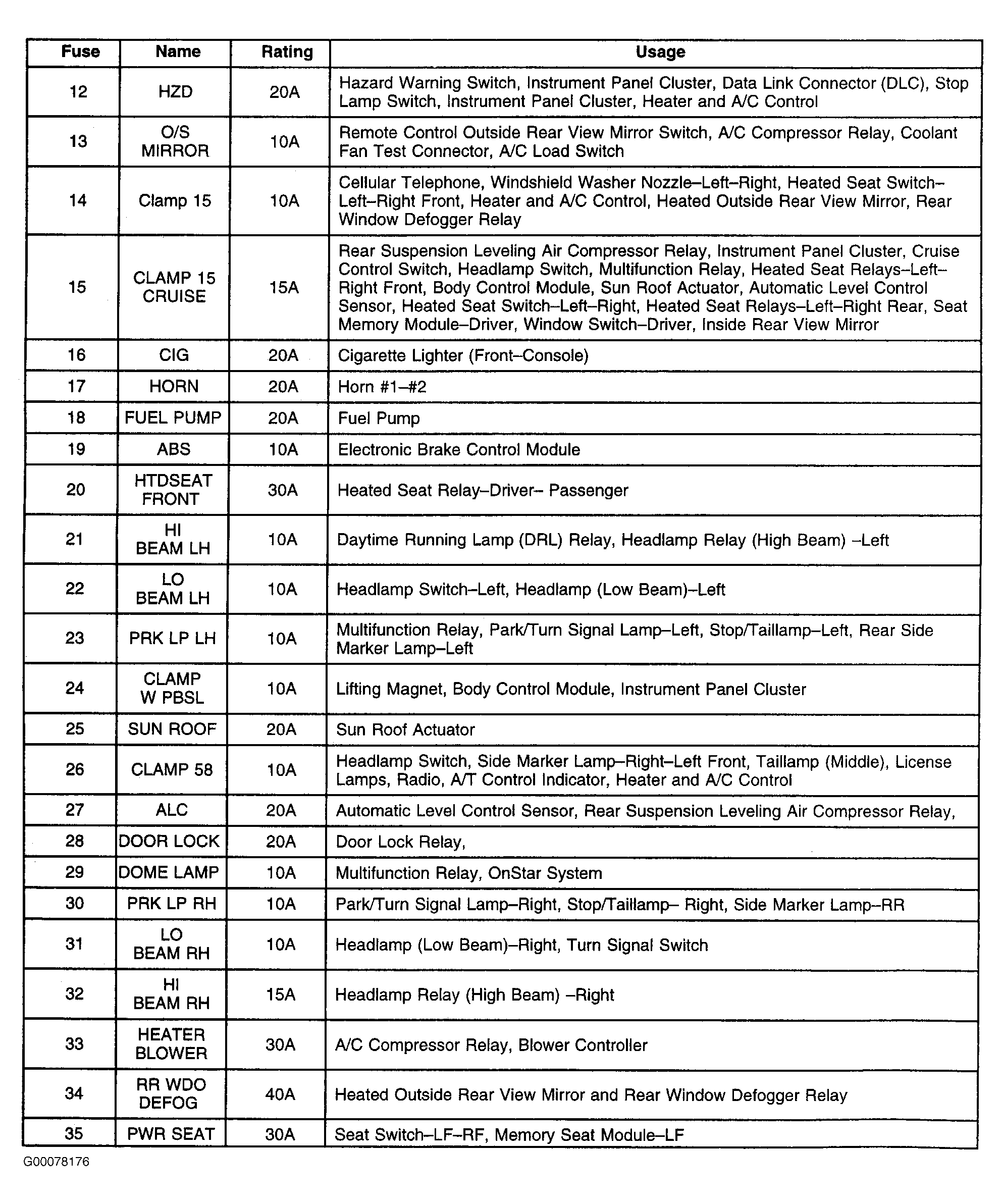

Fig 3: Instrument Panel Fuse Block Legend (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
