Power Distribution Block

NOTE: Power distribution block is located on driver's side of engine compartment, near battery.

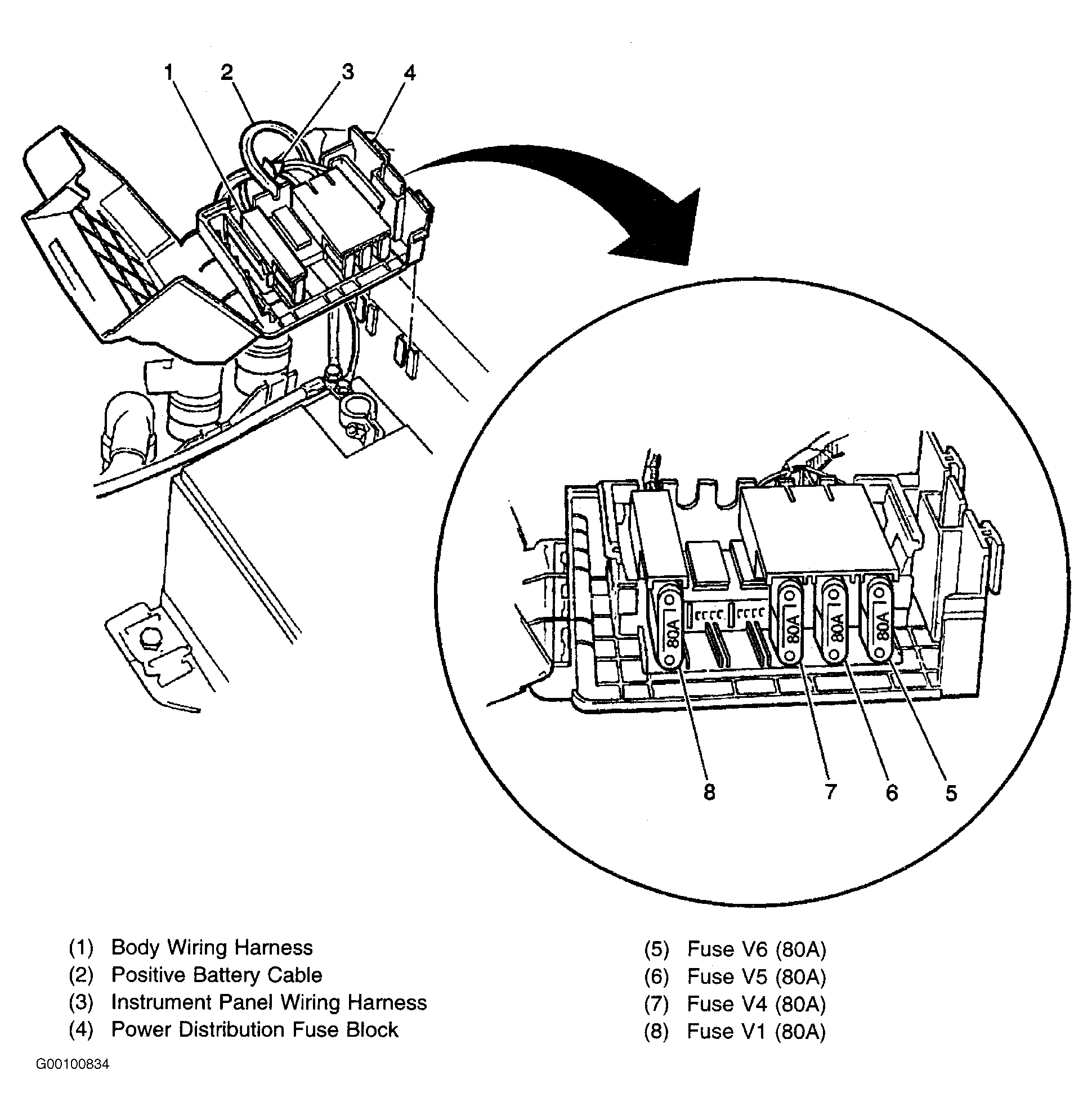

Fig 1: Locating & Identifying Power Distribution Fuse Block (1997-98)

Courtesy of GENERAL MOTORS CORP.

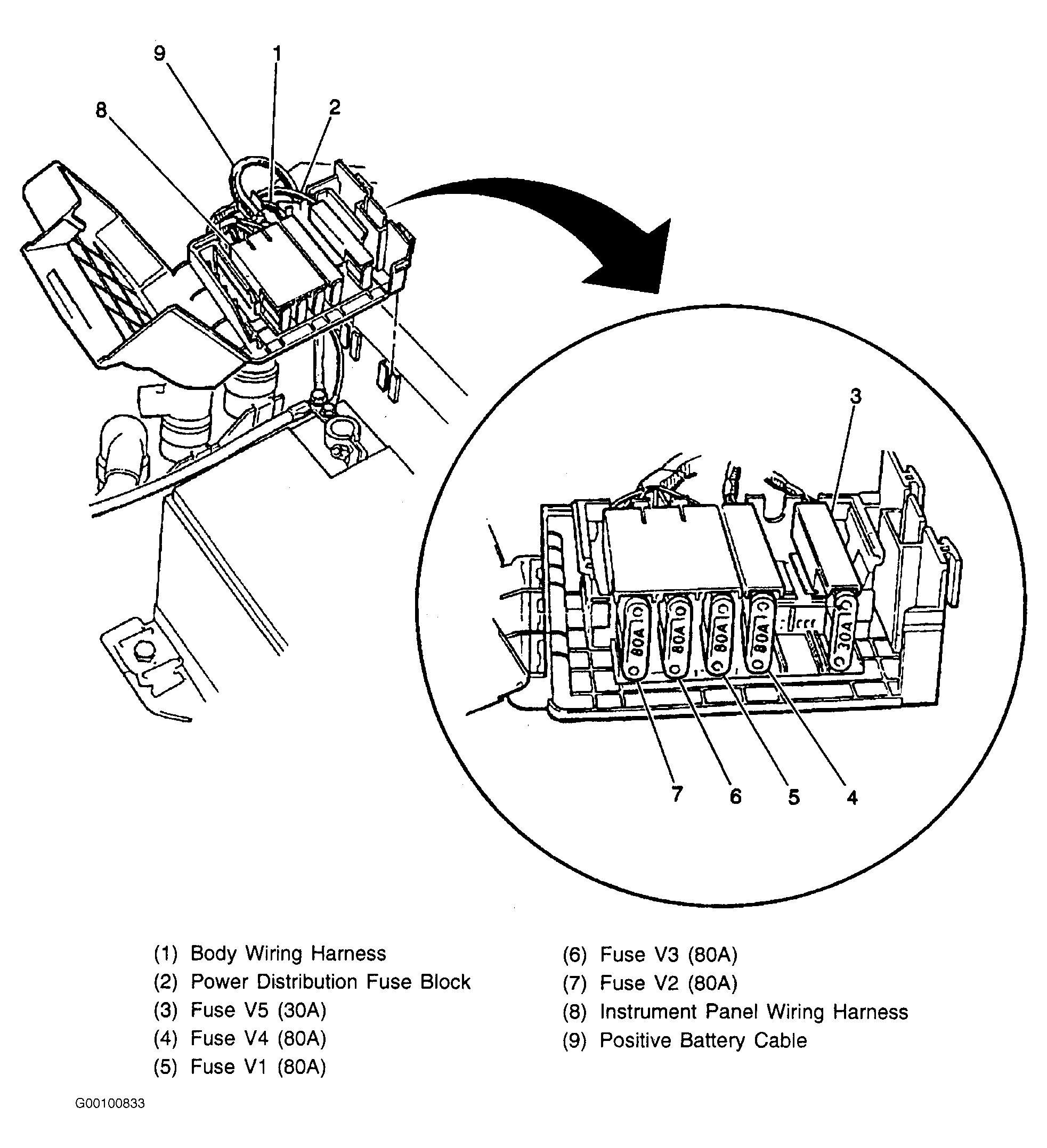

Fig 2: Locating & Identifying Power Distribution Fuse Block (1999-01)

Courtesy of GENERAL MOTORS CORP.
