Mode 6 - CATERA: 1997-1998

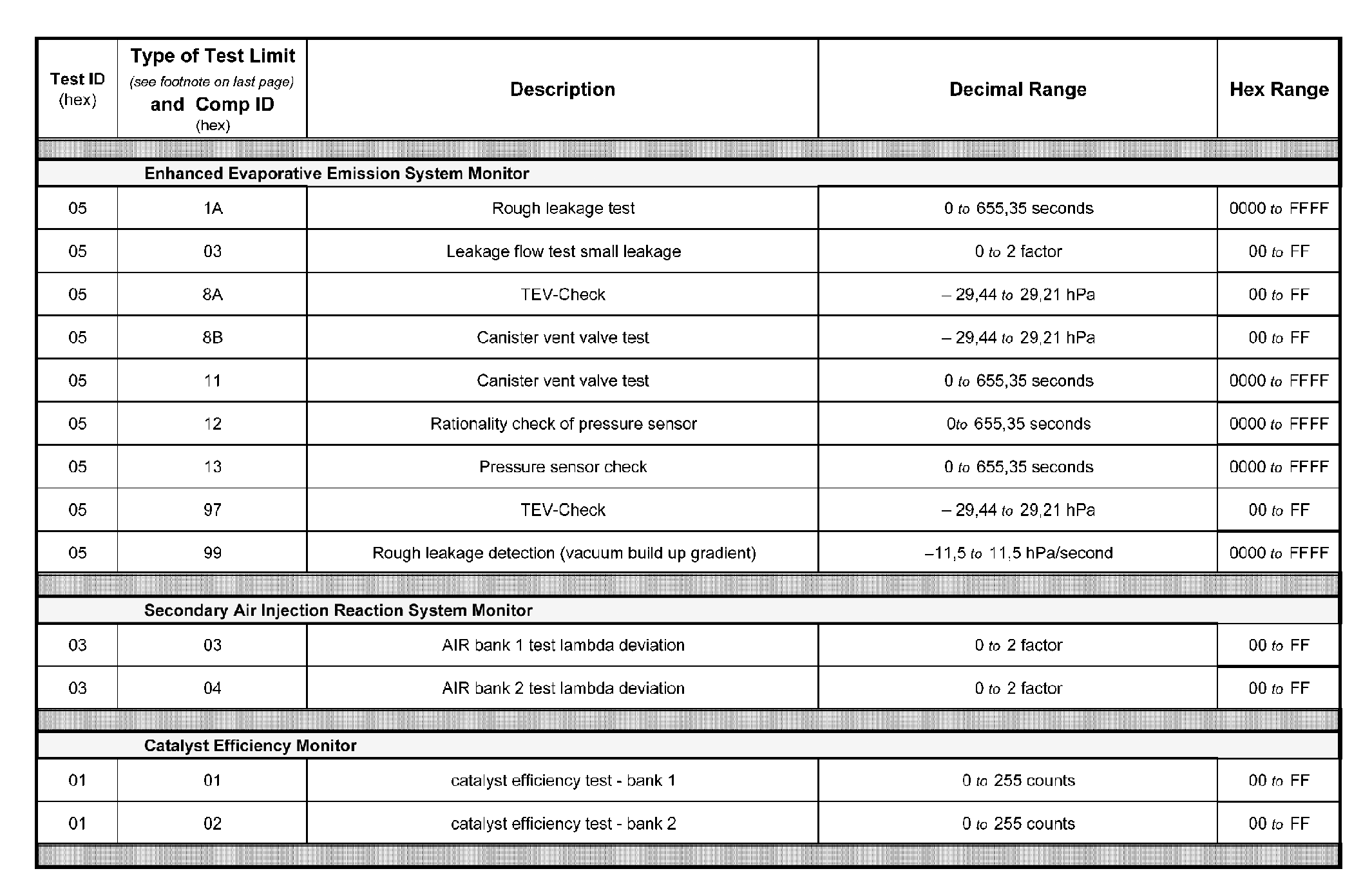

Fig 1: Mode $06 Data Definitions For 1997-1998 Catera (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

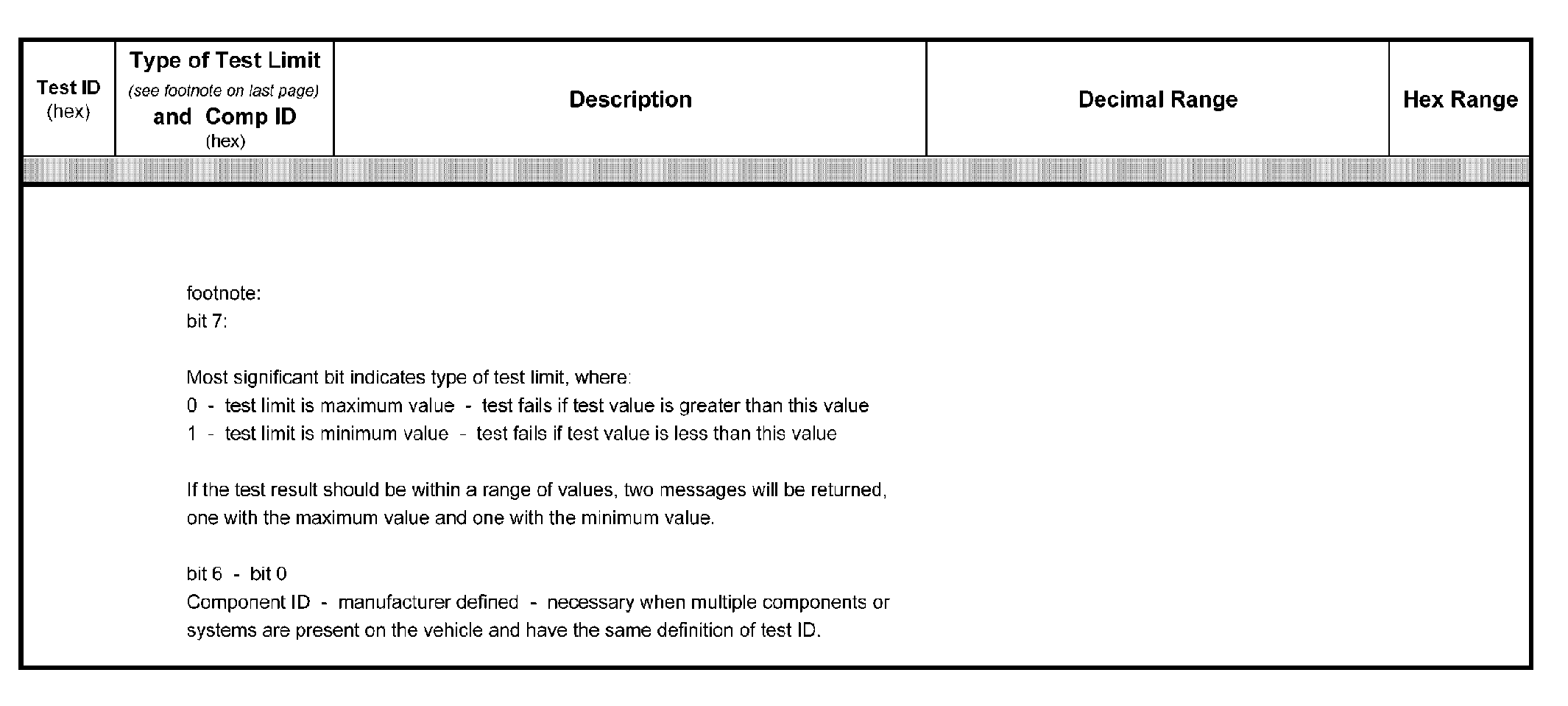

Fig 2: Mode $06 Data Definitions For 1997-1998 Catera (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
