Strut Assembly: Installation

To install, reverse removal procedure. Before tightening upper nuts, fully lower vehicle to ground (load suspension). Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

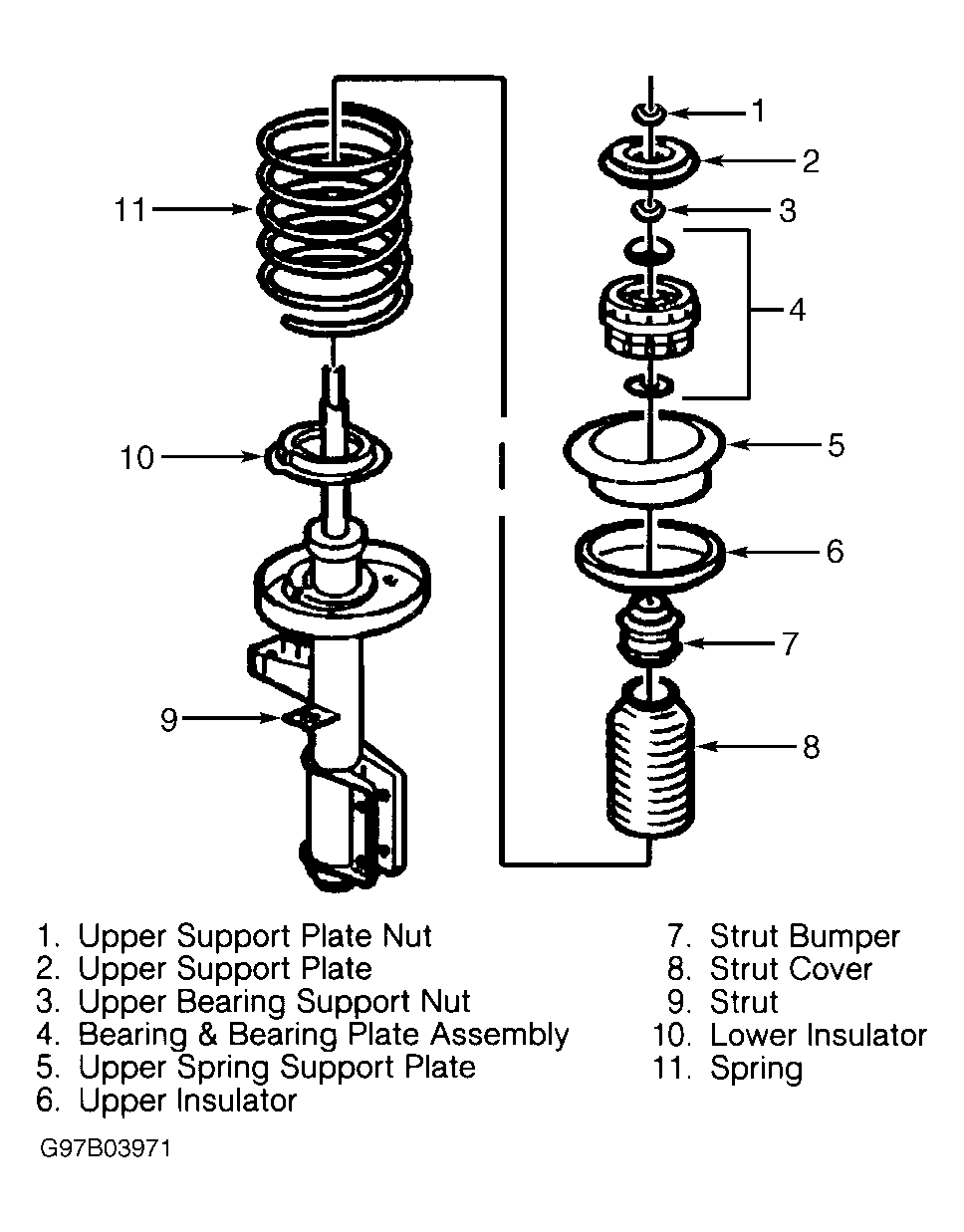

Fig 1: Identifying Strut Assembly Components

Courtesy of GENERAL MOTORS CORP.
