| Battery |
Under Rear Seat Cushion |
| Data Link Connector |
Under Left Side Of Instrument Panel |
| Door Module |
Behind Corresponding Door Panel |
| Heated Seat Switch (Front) |
In Corresponding Front Door, Part Of Power Window Switch Assembly |
| Heated Seat Switch (Rear) |
In Corresponding Rear Door, Part Of Power Window Switch Assembly |
| Heated Seat Module (Front) |
Under Respective Front Seat, Mounted To Seat Adjuster Frame |

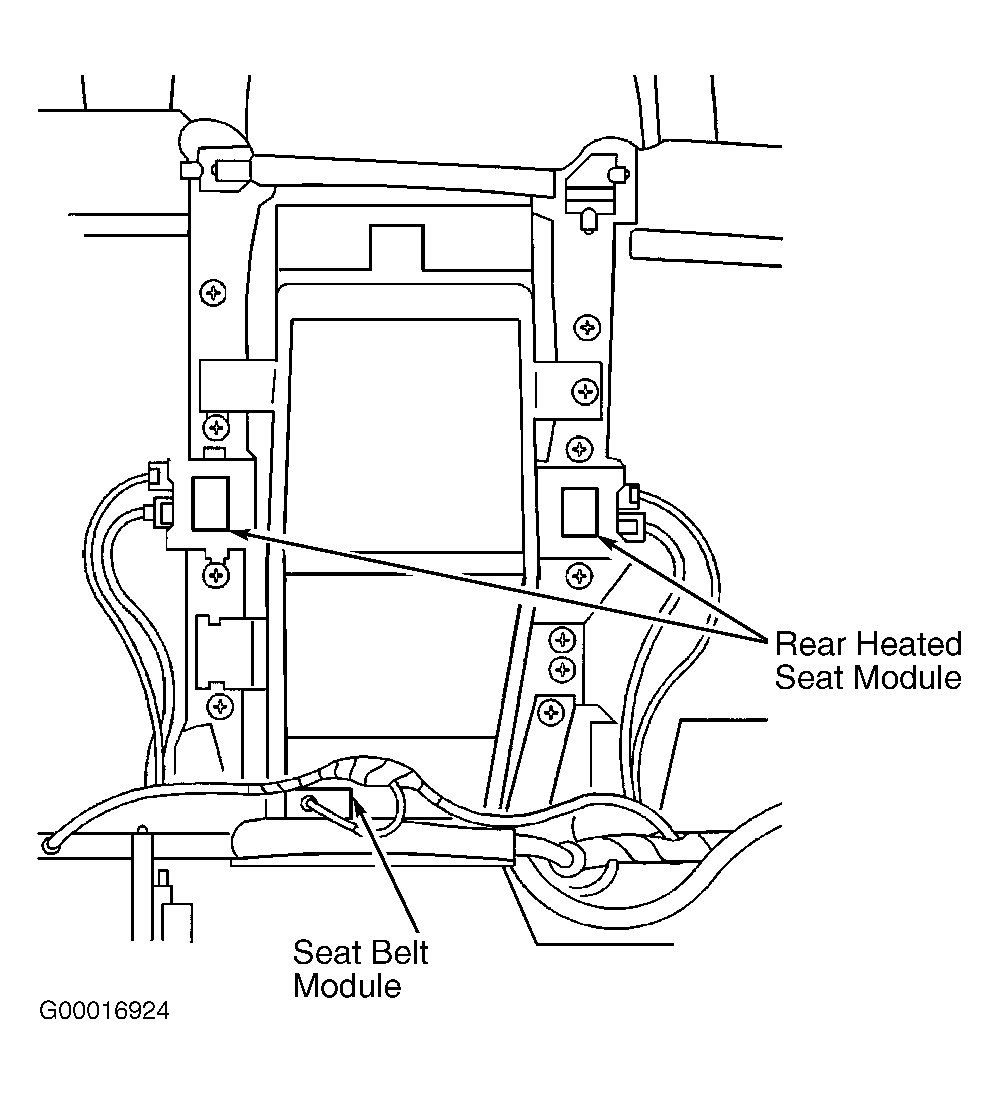

| Heated Seat Module (Rear) |
Behind Rear Seat Back Mounted To Seat Back Frame |
| Lumbar Switches (Front) |
Outboard Side Of Corresponding Seat |
| Lumbar Switches (Rear) |
In Corresponding Rear Door |
| Power Seat Switches |
Outboard Side Of Corresponding Seat |
| Rear Fuse Box |
Under Rear Seat Cushion |
| Seat Belt Tower Switches |
Outboard Side Of Corresponding Seat |
| Underhood Fuse Block |
Right Front Of Engine Compartment |
