Cruise Control Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

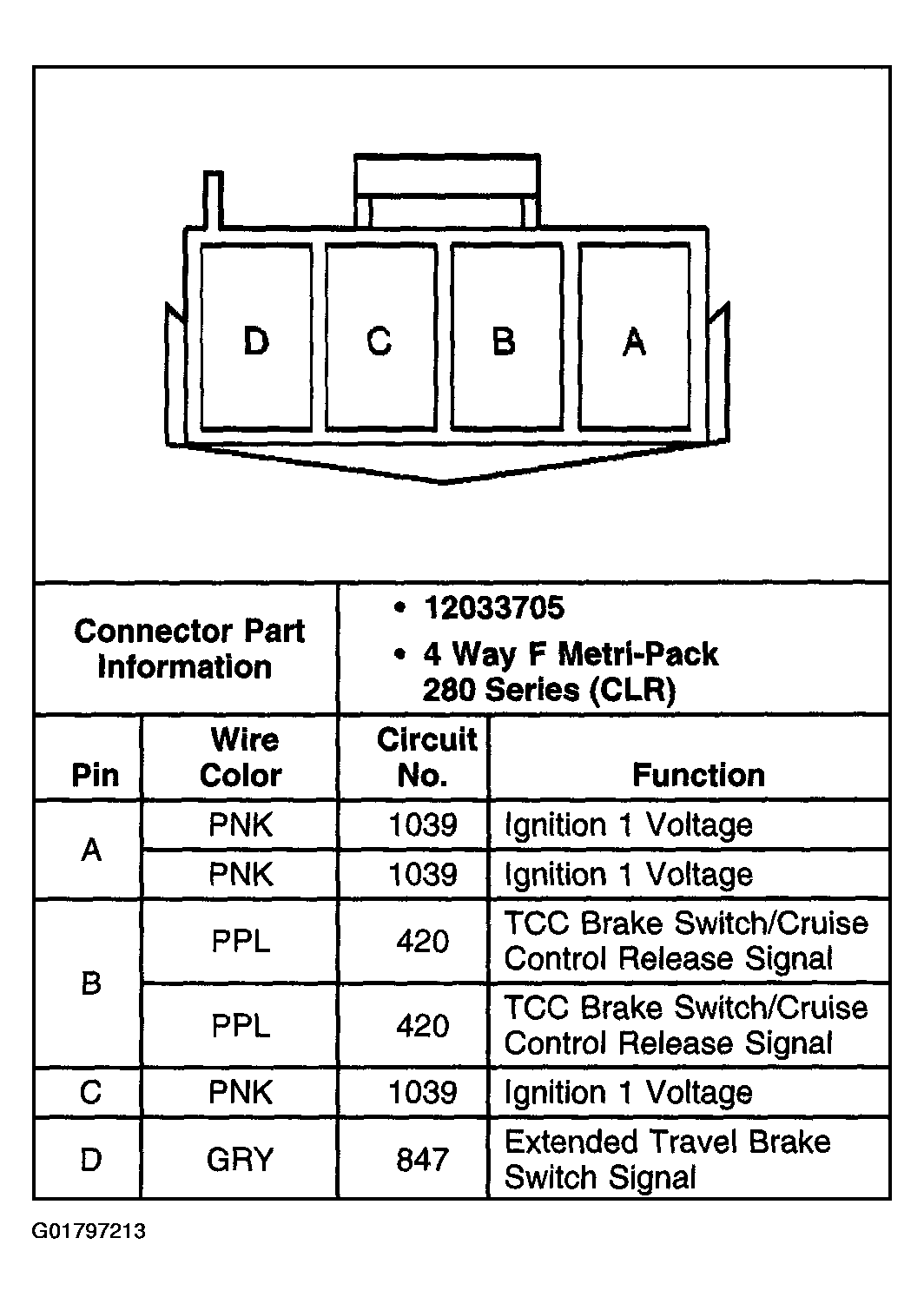

Fig 1: Cruise Control Module (CCM)

Courtesy of GENERAL MOTORS CORP.

Fig 2: TCC/Cruise Release Switch

Courtesy of GENERAL MOTORS CORP.
