Connector Identification

WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Oil Pressure Sensor (OPS) Connector Terminals

G00016235

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying EVO/Passlock(tm) Module Connector Terminals

G98E00764

Courtesy of GENERAL MOTORS CORP.

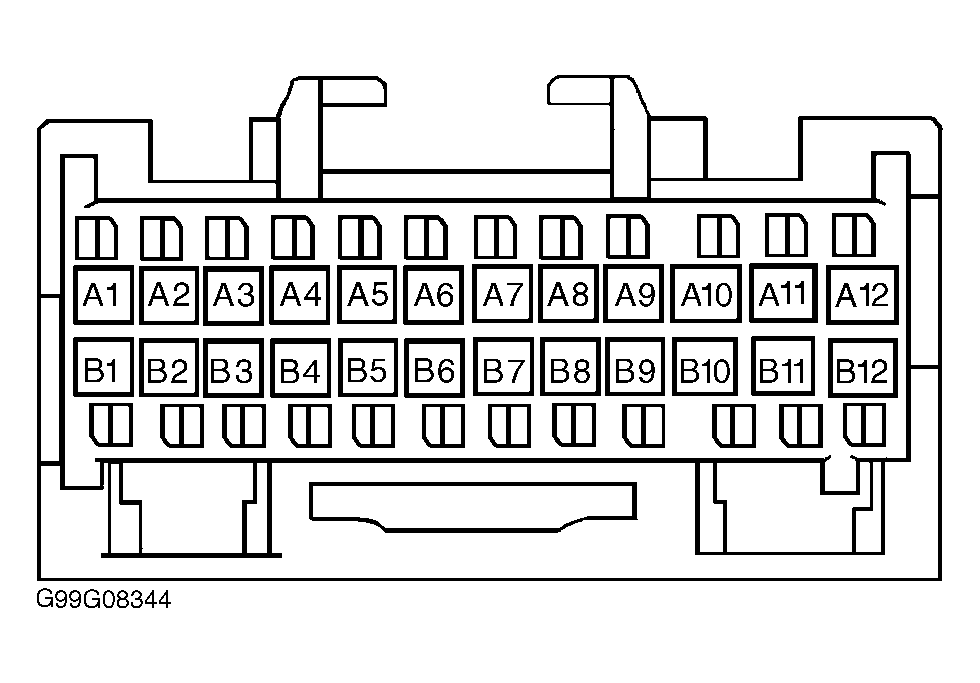

Fig 3: Identifying Instrument Cluster Connector Terminals

G99G08344

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Vehicle Control Module (VCM) Connector Terminals (4.3L)

G98H00866

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Vehicle Control Module (VCM) Connector Terminals (4.8L, 5.3L & 6.0L)

G97E28443

Courtesy of GENERAL MOTORS CORP.

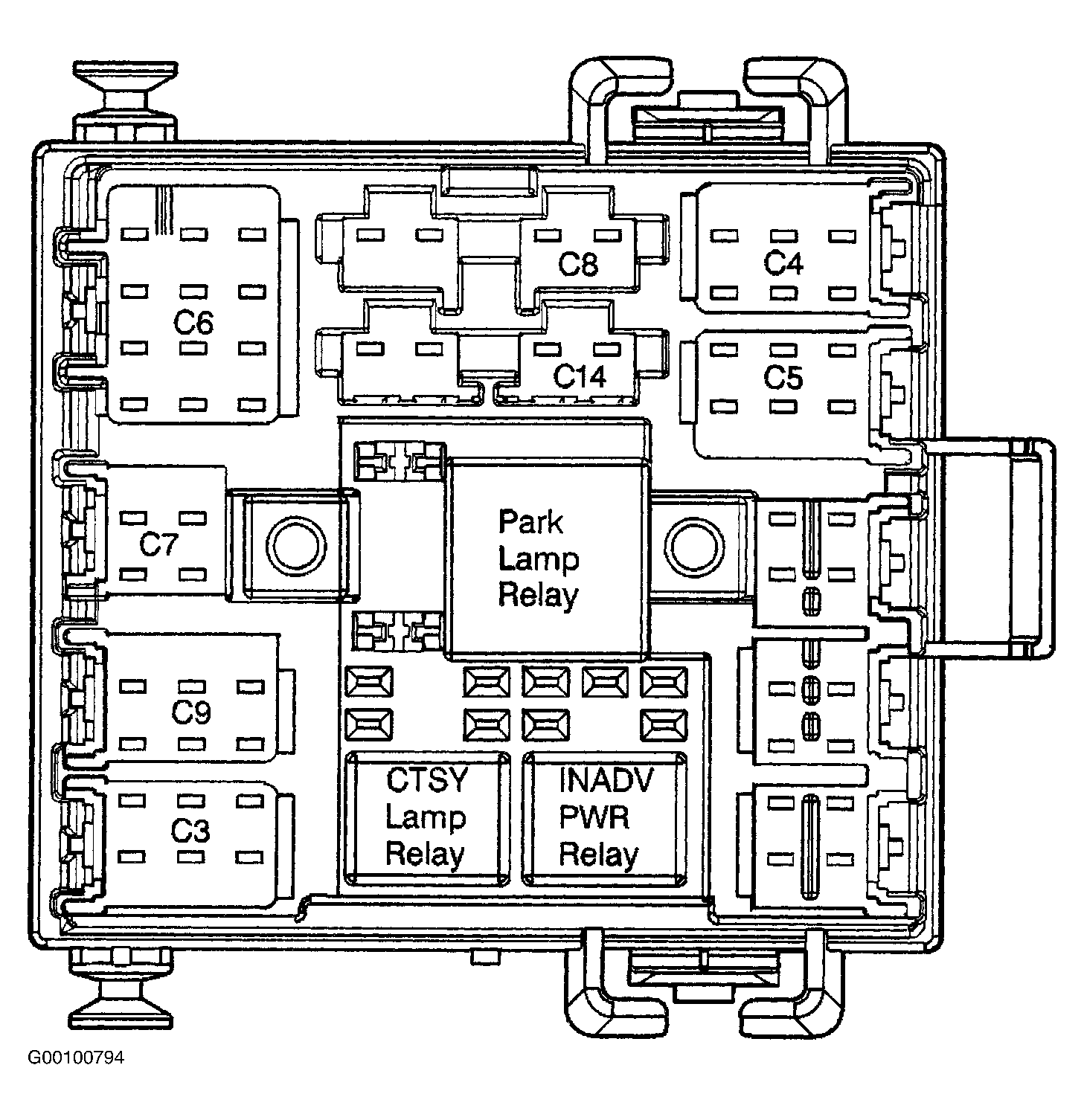

Fig 6: Identifying Mid Bussed Electrical Center Components

G00100794

Courtesy of GENERAL MOTORS CORP.

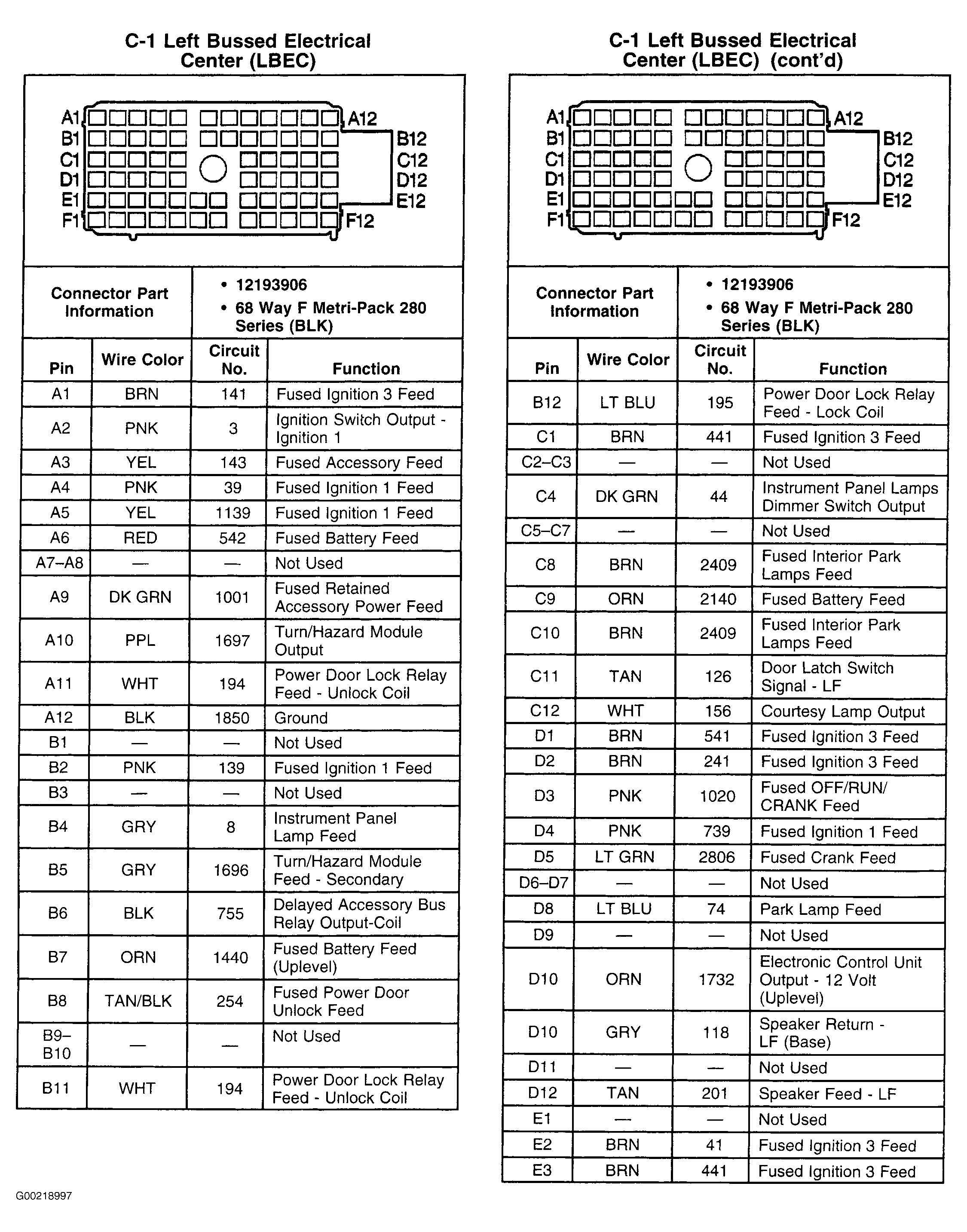

Fig 7: Identifying Left Bussed Electrical Center Terminals (1 Of 3)

G00218997

Courtesy of GENERAL MOTORS CORP.

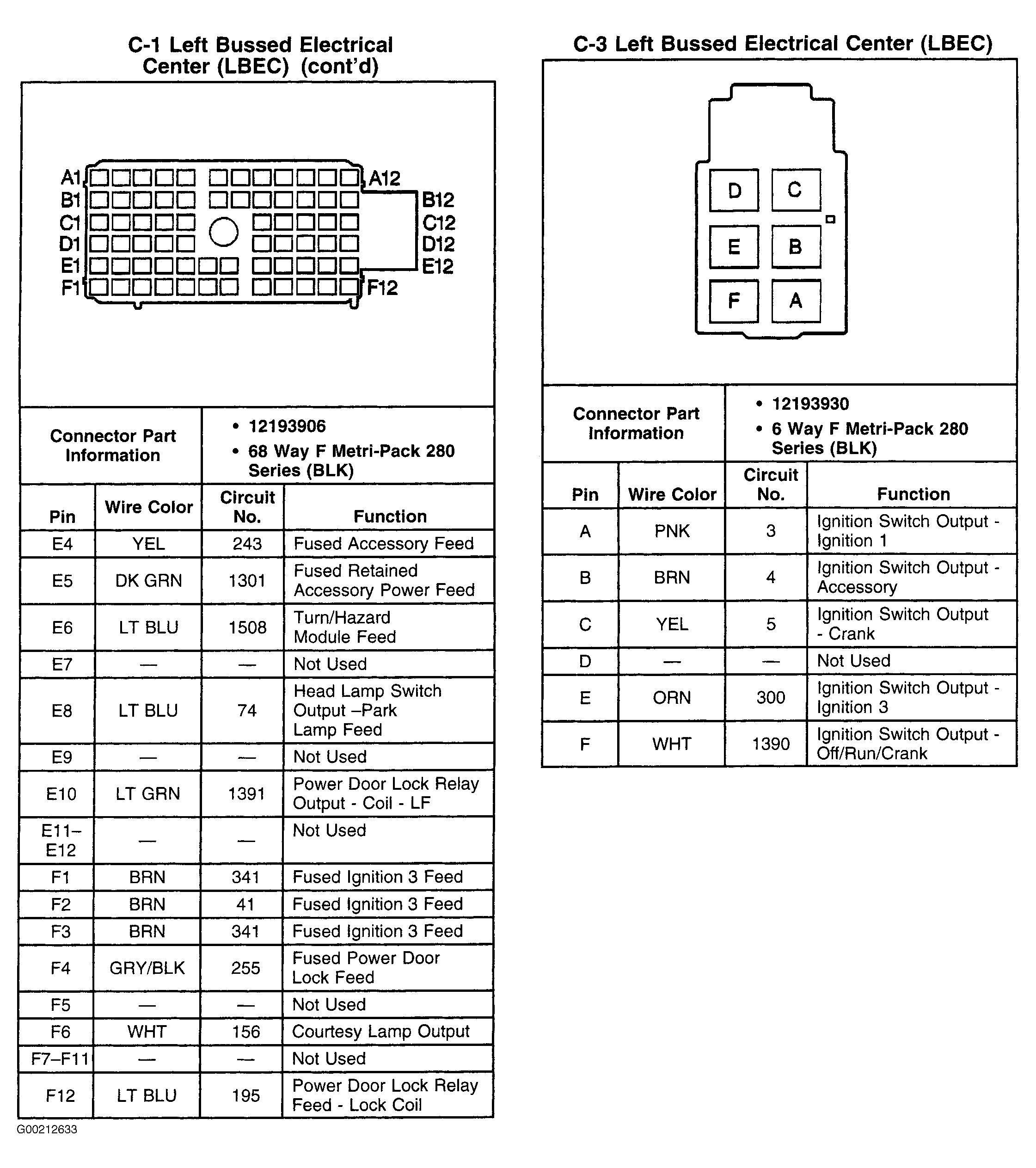

Fig 8: Identifying Left Bussed Electrical Center Terminals (2 Of 3)

G00212633

Courtesy of GENERAL MOTORS CORP.

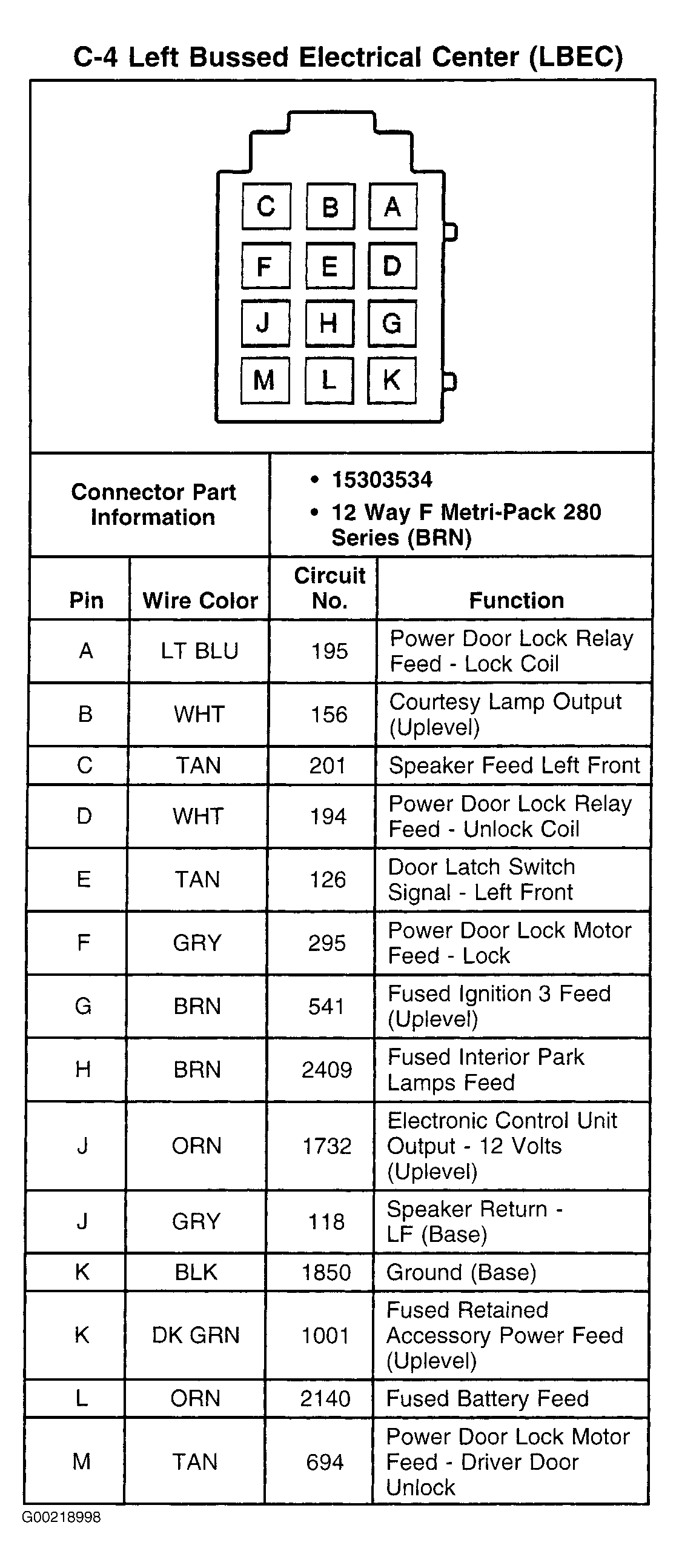

Fig 9: Identifying Left Bussed Electrical Center Terminals (3 Of 3)

G00218998

Courtesy of GENERAL MOTORS CORP.

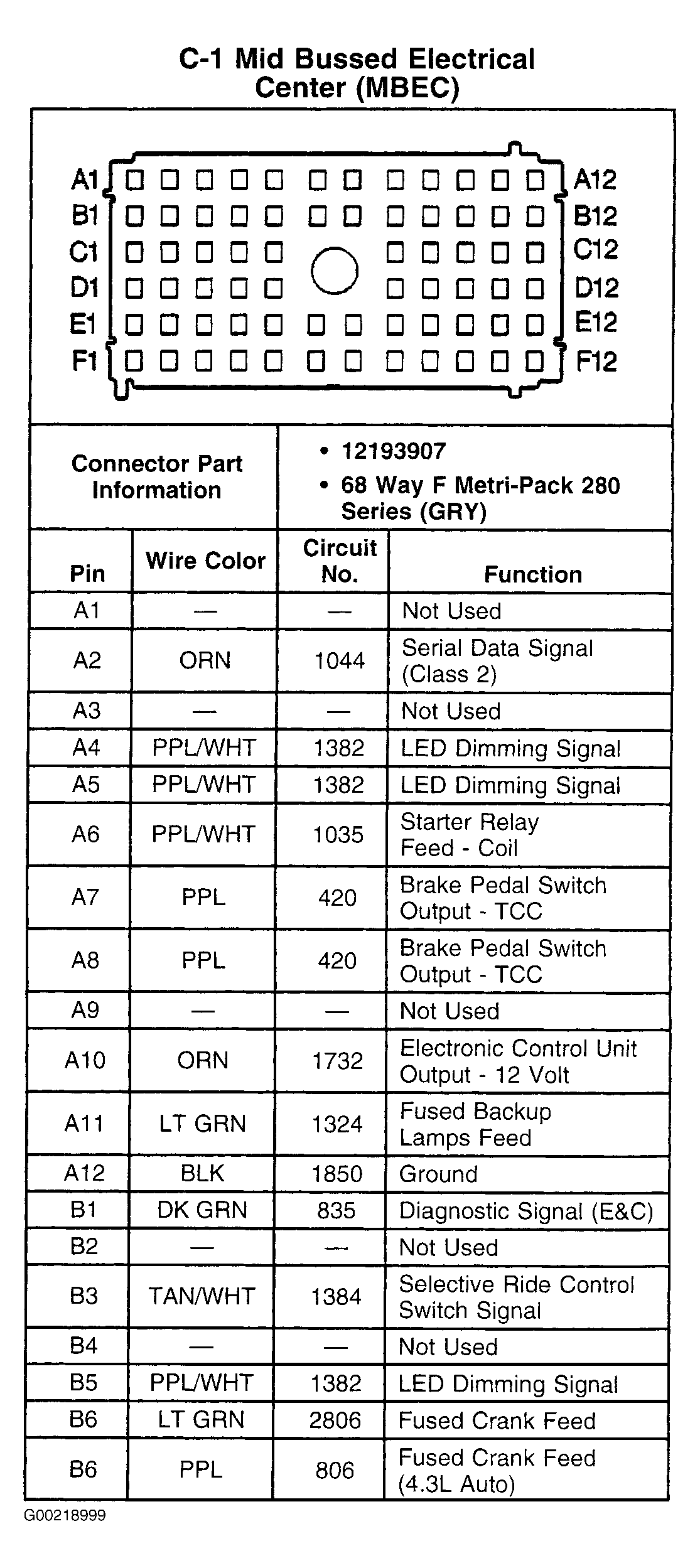

Fig 10: Identifying Mid Bussed Electrical Center Terminals (1 Of 6)

G00218999

Courtesy of GENERAL MOTORS CORP.

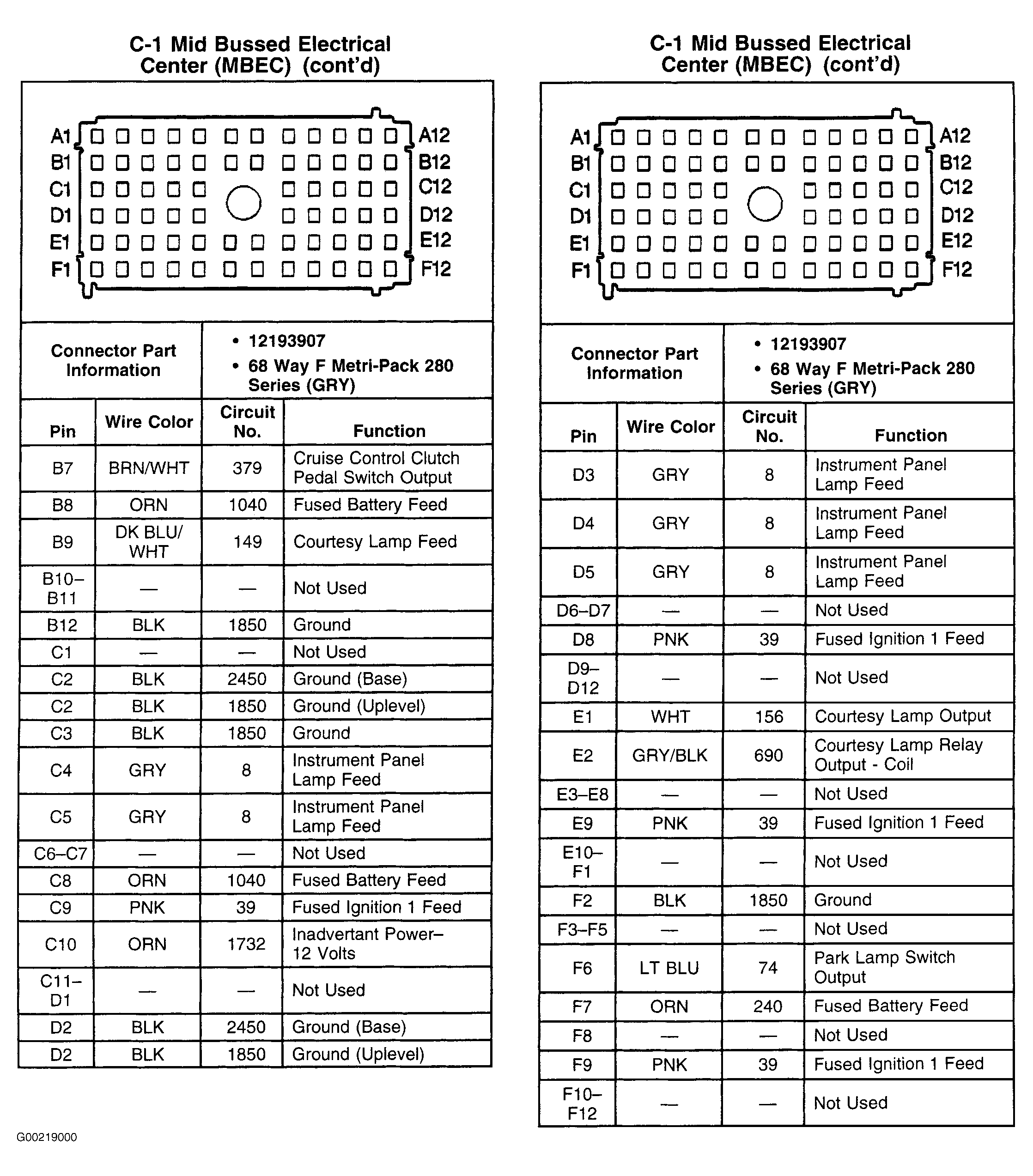

Fig 11: Identifying Mid Bussed Electrical Center Terminals (2 Of 6)

G00219000

Courtesy of GENERAL MOTORS CORP.

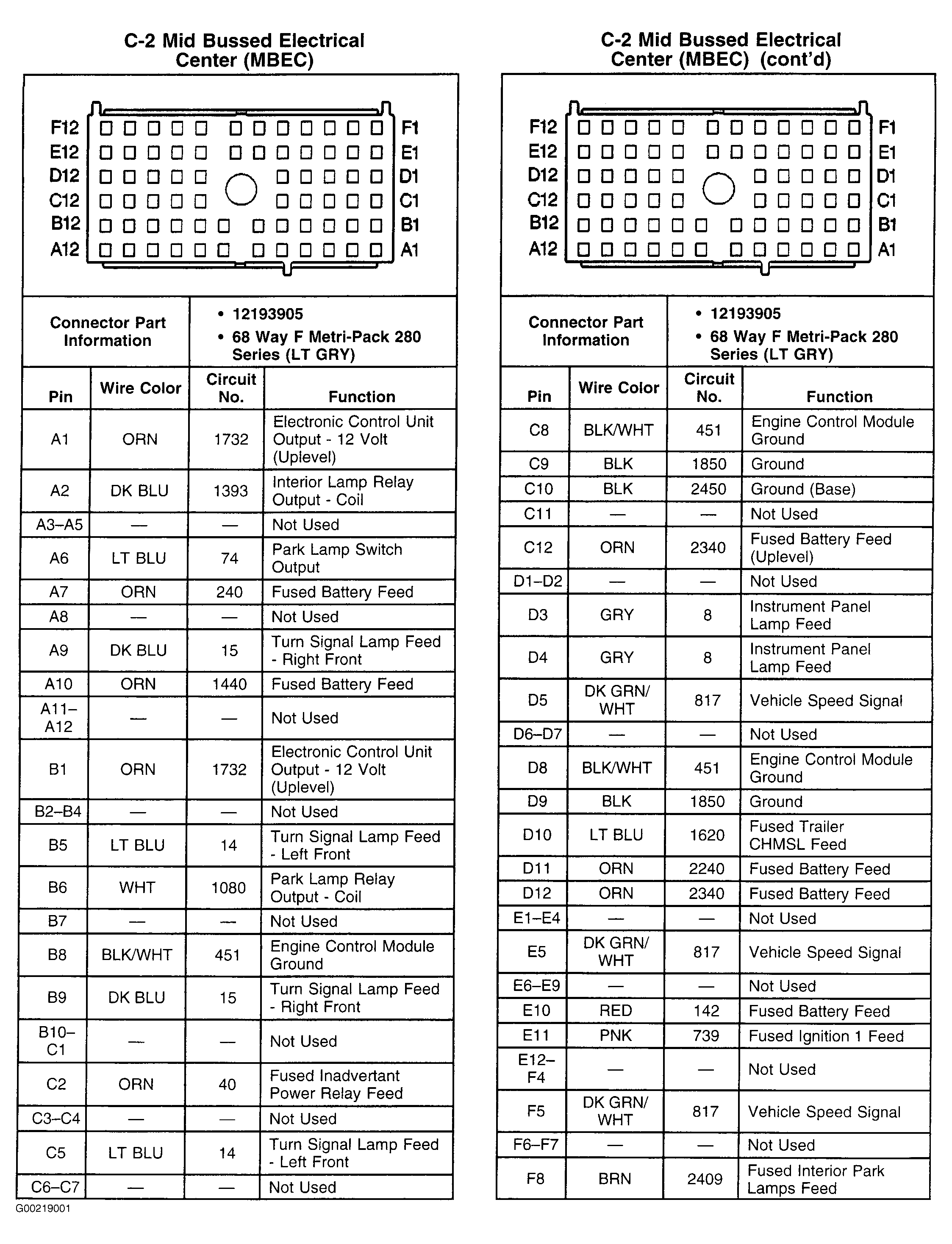

Fig 12: Identifying Mid Bussed Electrical Center Terminals (3 Of 6)

G00219001

Courtesy of GENERAL MOTORS CORP.

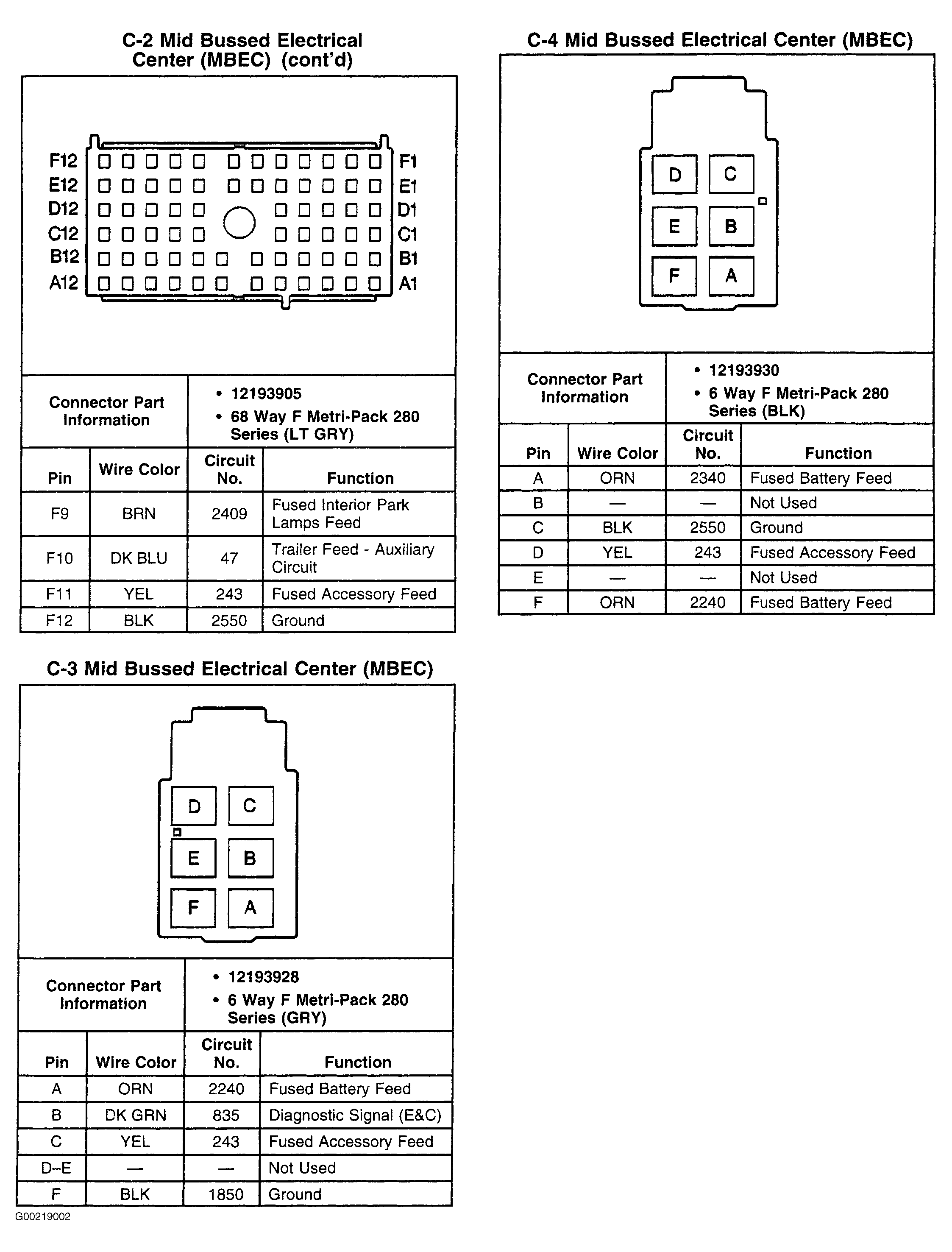

Fig 13: Identifying Mid Bussed Electrical Center Terminals (4 Of 6)

G00219002

Courtesy of GENERAL MOTORS CORP.

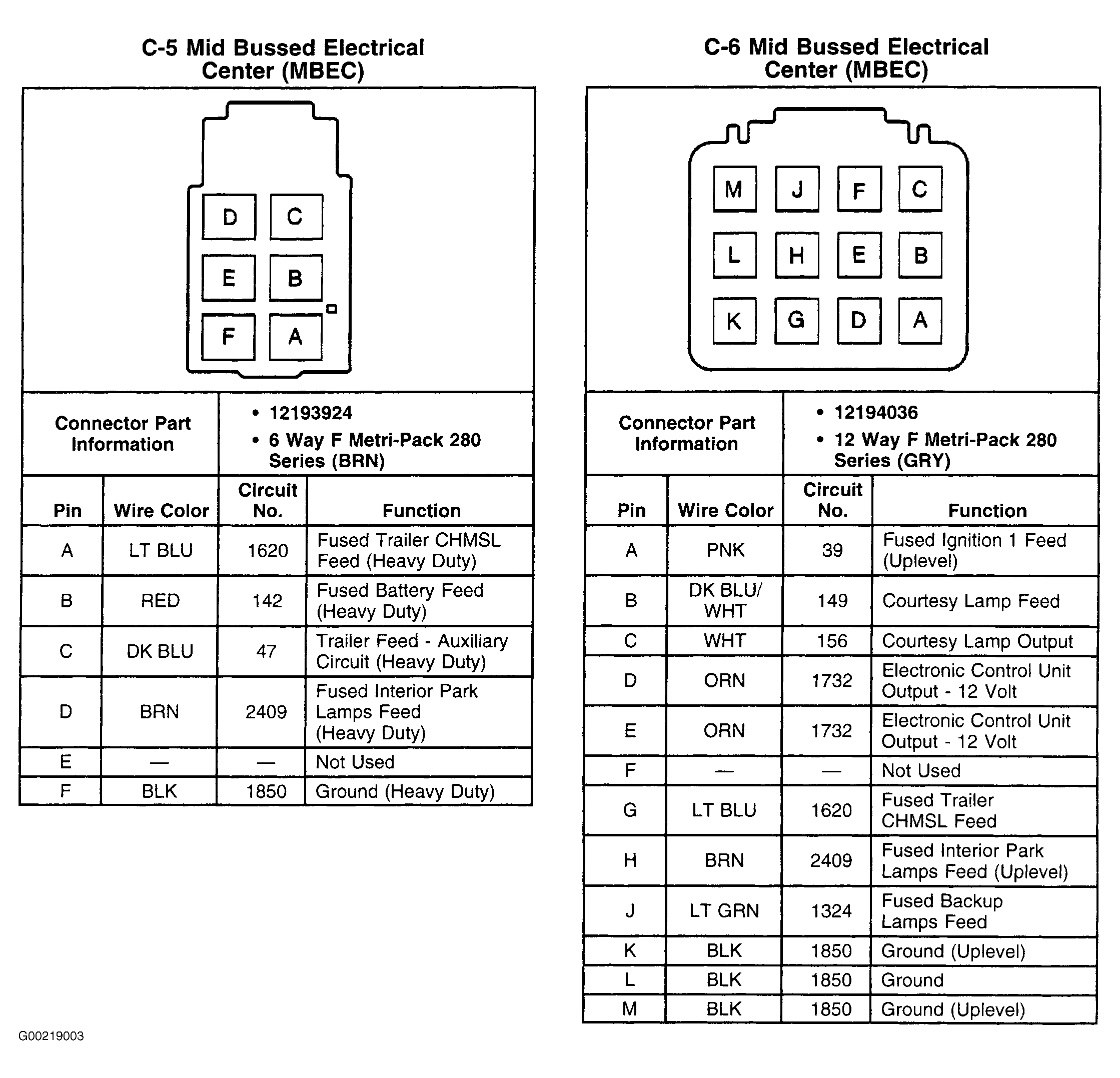

Fig 14: Identifying Mid Bussed Electrical Center Terminals (5 Of 6)

G00219003

Courtesy of GENERAL MOTORS CORP.

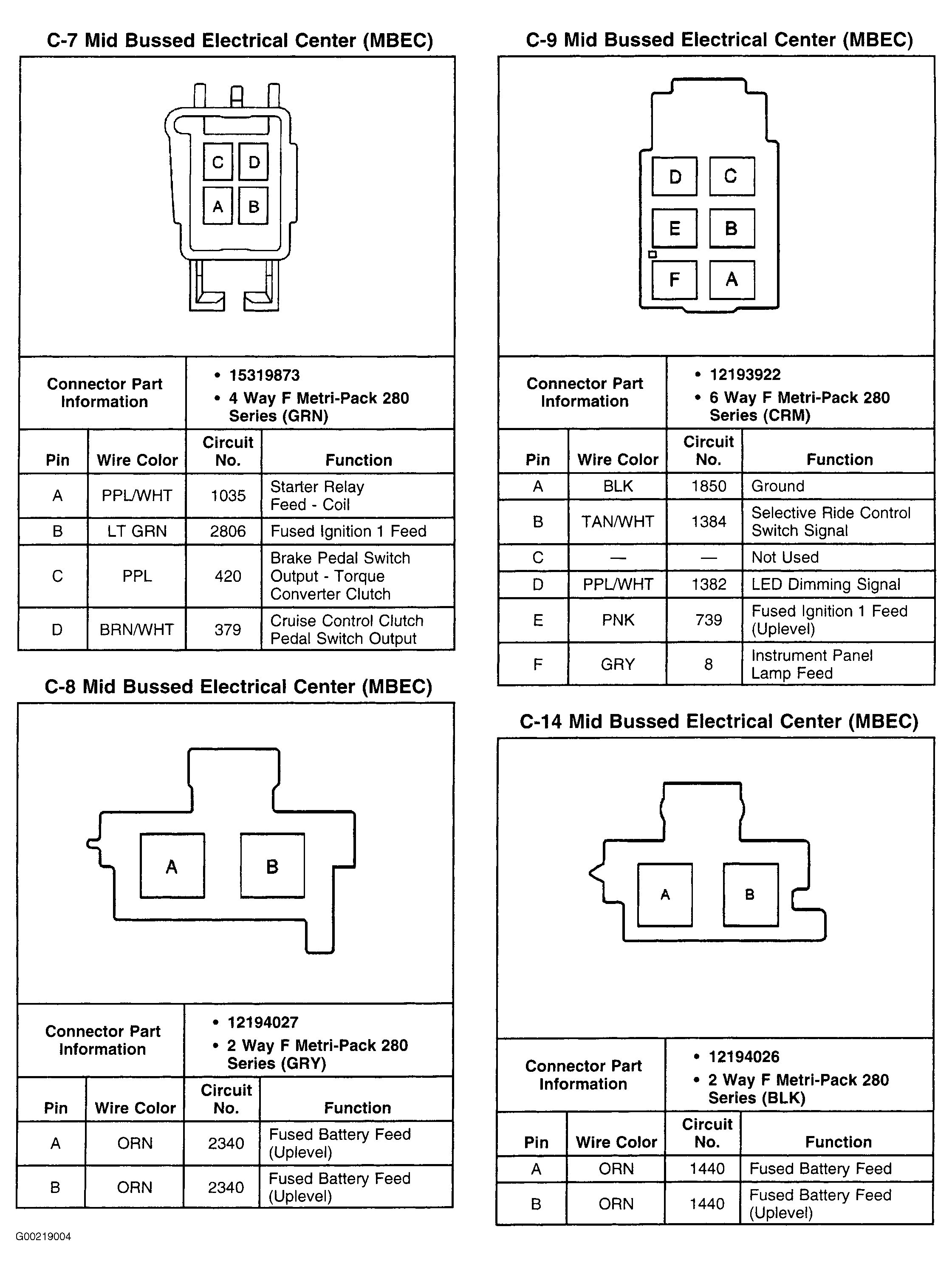

Fig 15: Identifying Mid Bussed Electrical Center Terminals (6 Of 6)

G00219004

Courtesy of GENERAL MOTORS CORP.
