Body Control Module (BCM): Installation
WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

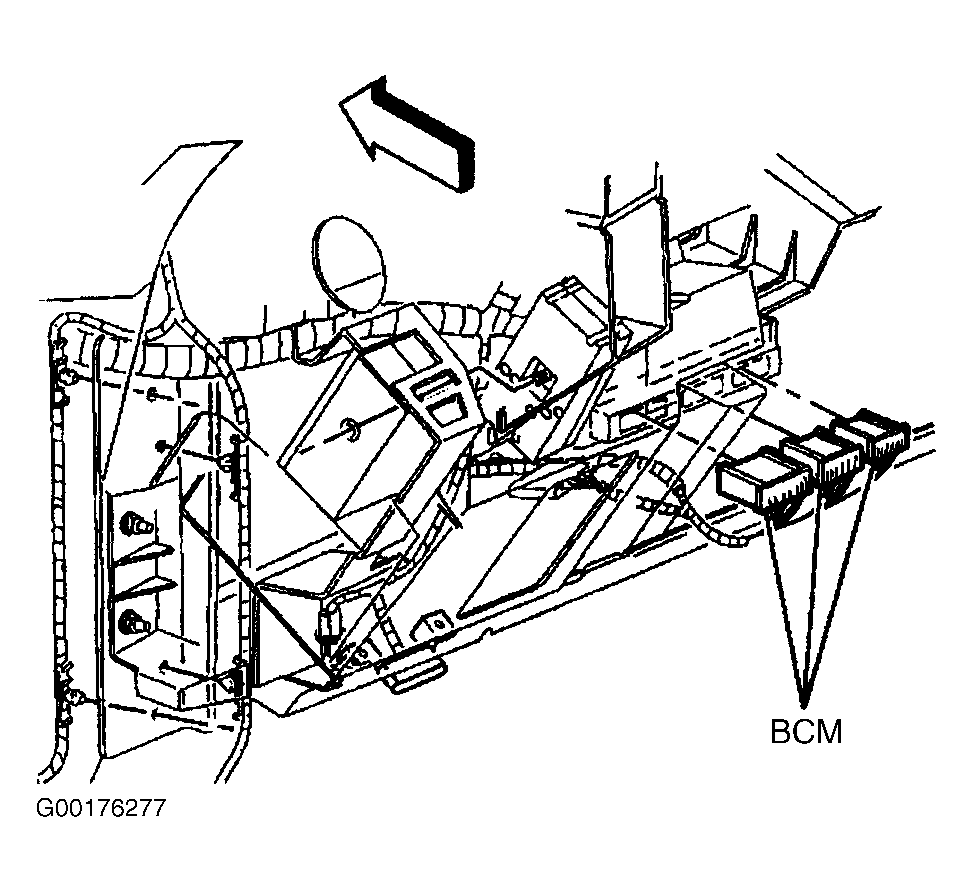

- Slide the BCM onto the bracket. See Figure .
- Connect all the connectors, except the brown connector.
- Connect the brown connector.
- Install the knee bolster. See KNEE BOLSTER .
- Connect the negative battery cable.
- Reprogram the BCM. See BODY CONTROL MODULE (BCM) under PROGRAMMING.
