Front-End Discriminating Sensor: Removal

WARNING: This page is about a different car, the 2000 GMC Sierra and 2000 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, See AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

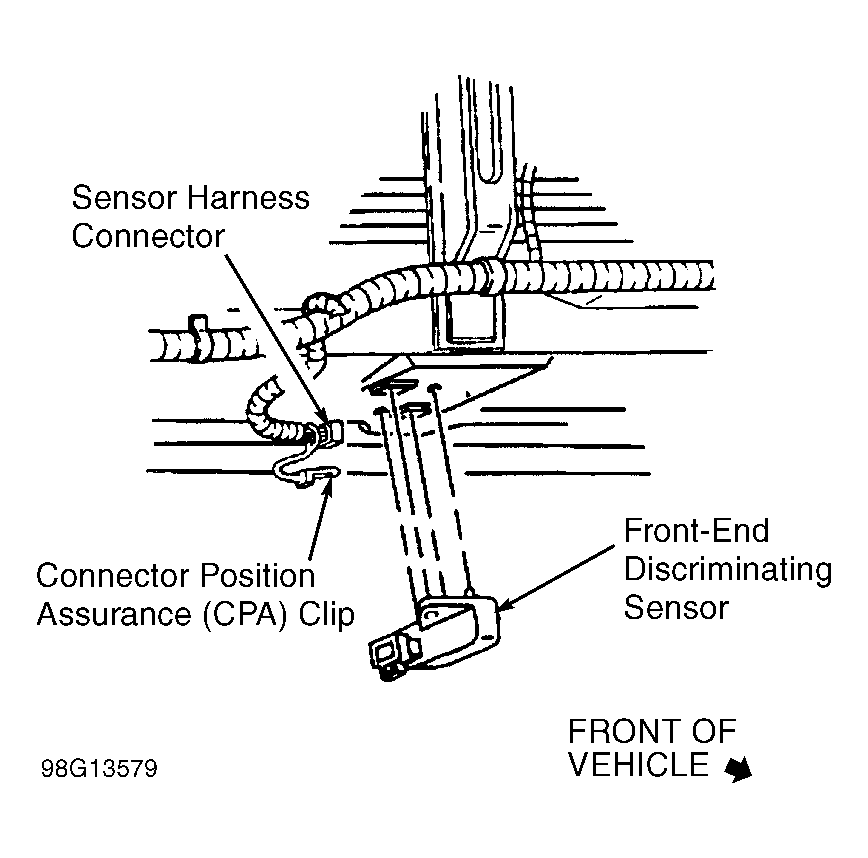

  2. Remove off-road skid plate. if equipped. Remove CPA clip from connector and disconnect sensor harness connector. Remove sensor mounting fasteners. Remove sensor. See Figure.
