Identification
›
UNDERHOOD Fuse Block
UNDERHOOD Fuse Block
NOTE:
Underhood fuse block is located on passenger's side of engine compartment. See
Fig 1
.

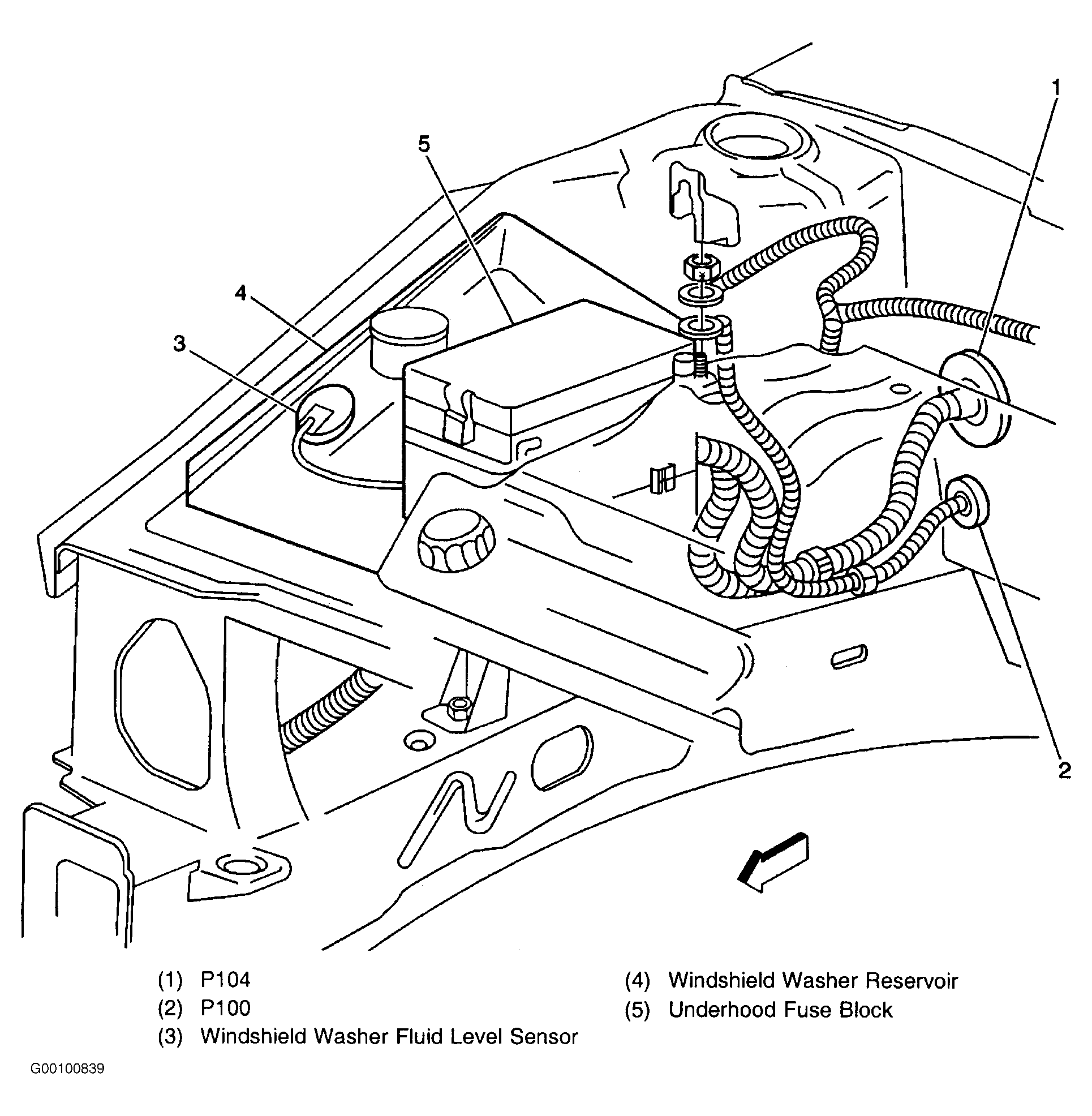

Fig 1: Locating Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

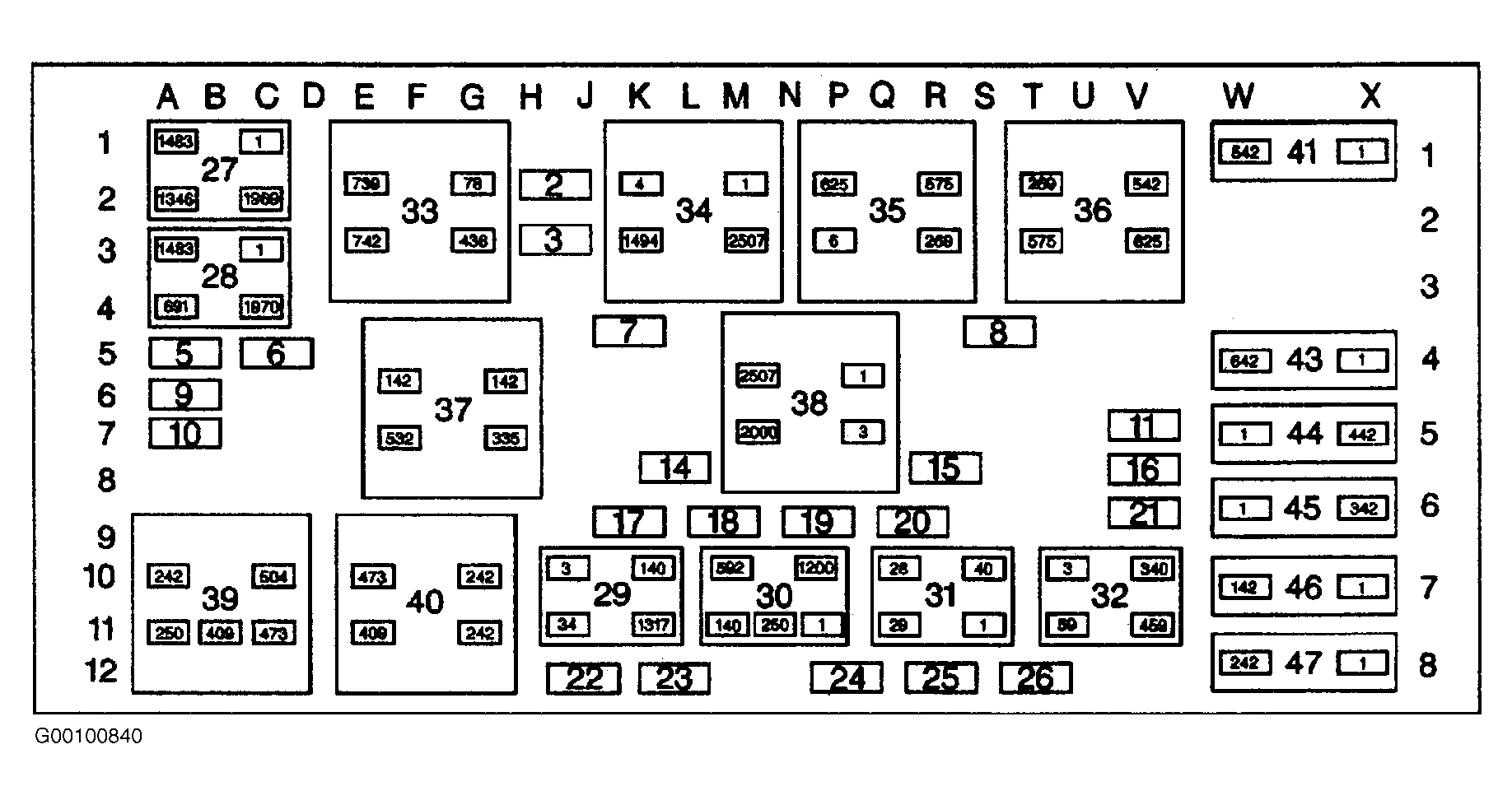

Fig 2: Identifying Underhood Fuse Block Components
Courtesy of GENERAL MOTORS CORP.

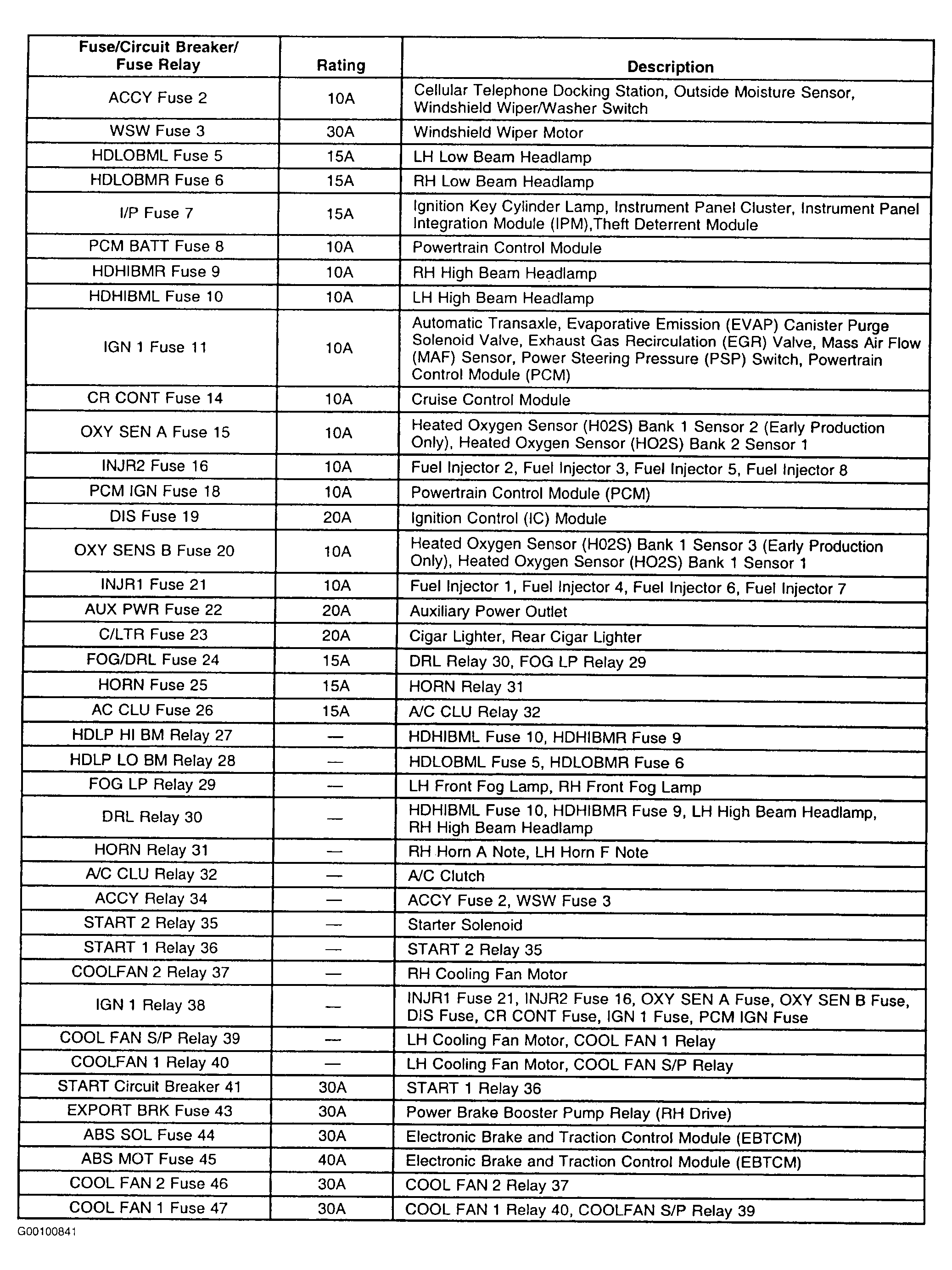

Fig 3: Underhood Fuse Block Legend
Courtesy of GENERAL MOTORS CORP.
