Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.

Fig 1: Opening Transmitter Case
Courtesy of GENERAL MOTORS CORP.
Twist the coin in order to open the case.
Open the transmitter case.

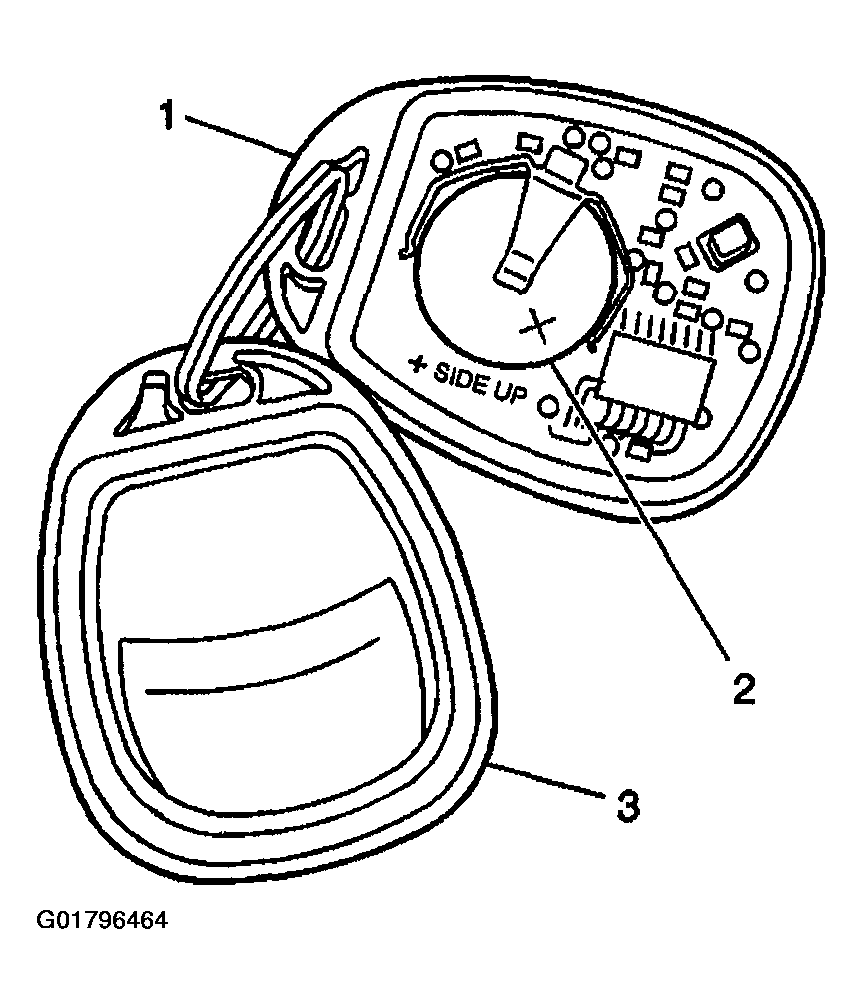

Fig 2: Locating Battery

G01796464

Courtesy of GENERAL MOTORS CORP.

Remove the battery (2).
