ABS Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

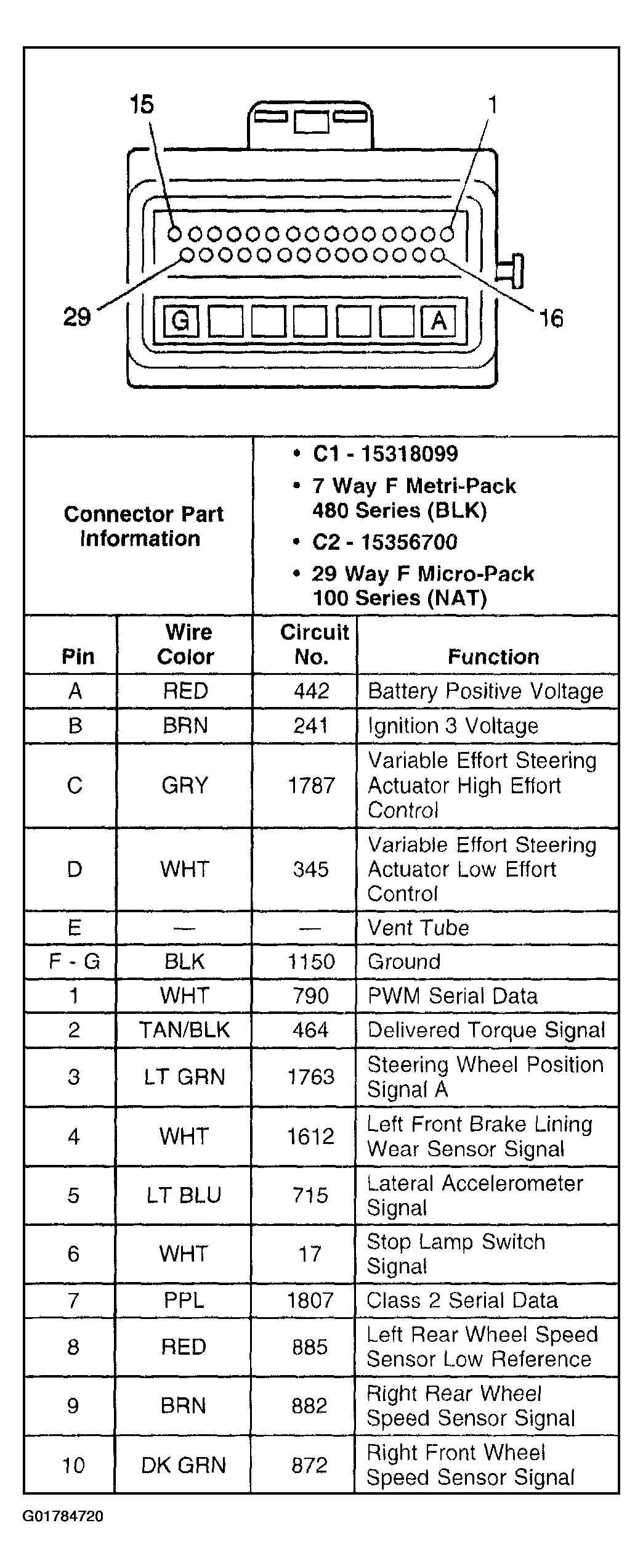

Fig 1: Identifying Electronic Brake Control Module (EBCM) (1 Of 2)

G01784720

Courtesy of GENERAL MOTORS CORP.

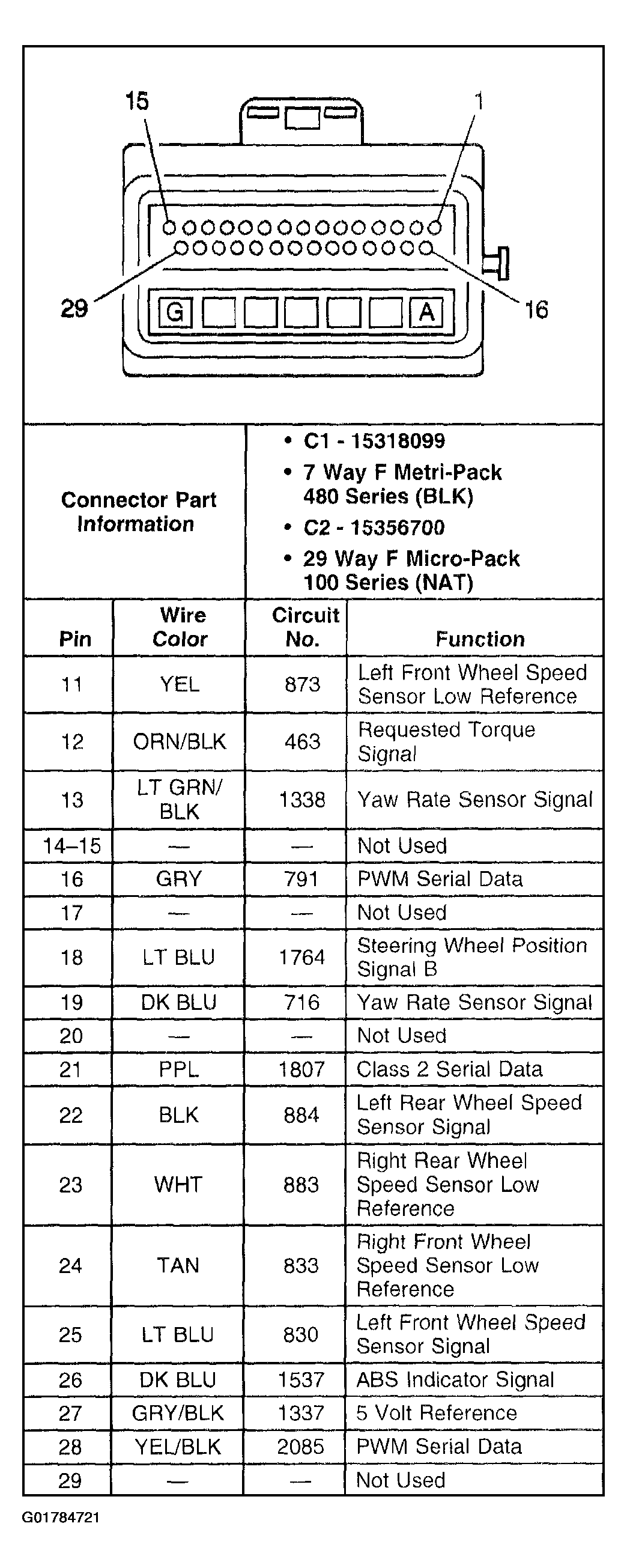

Fig 2: Identifying Electronic Brake Control Module (EBCM) (2 Of 2)

G01784721

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Lateral Accelerometer Sensor

G01784722

Courtesy of GENERAL MOTORS CORP.

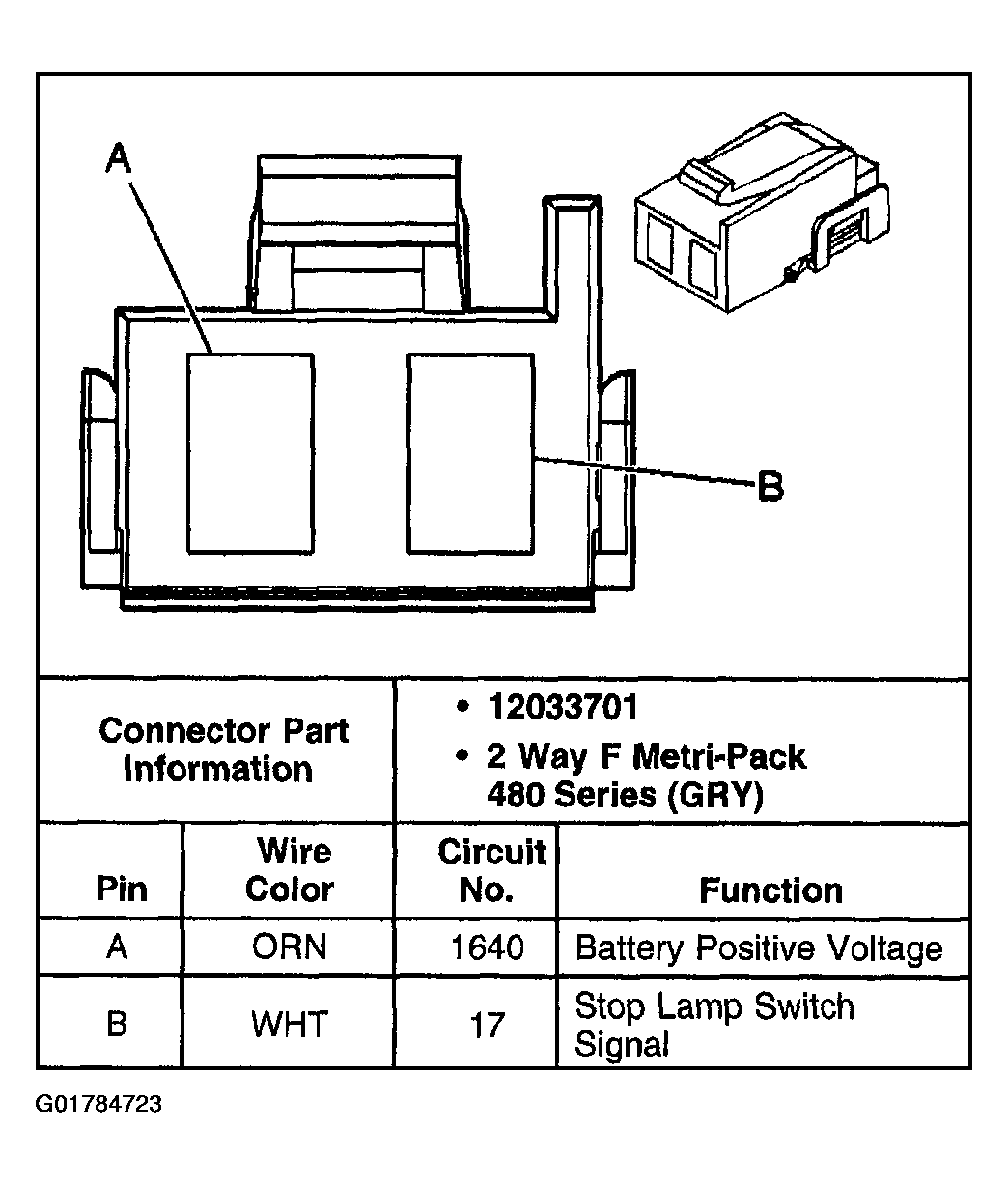

Fig 4: Identifying Stoplamp Switch C1

G01784723

Courtesy of GENERAL MOTORS CORP.

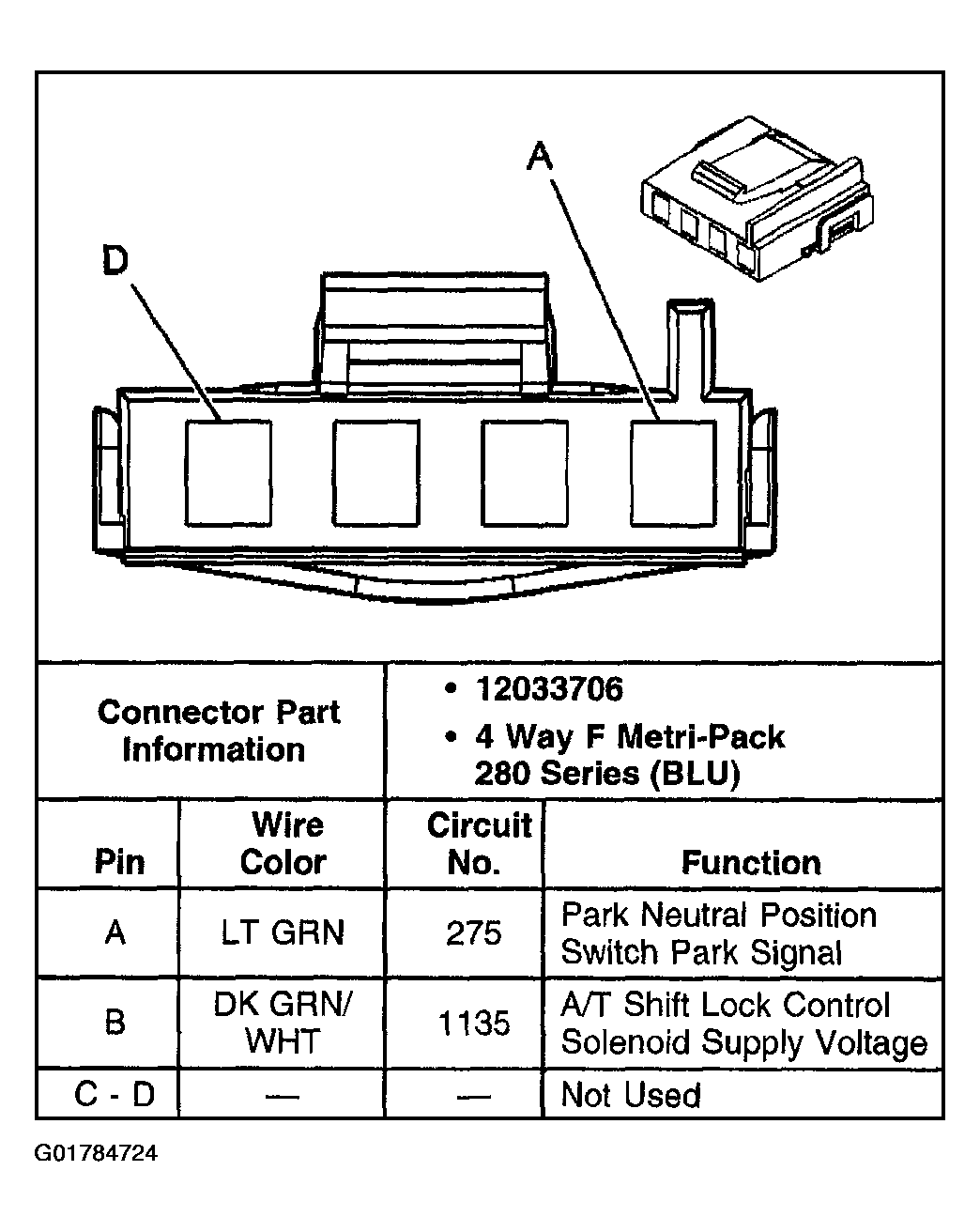

Fig 5: Identifying Stoplamp Switch C2

G01784724

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Traction Control Switch

G01784725

Courtesy of GENERAL MOTORS CORP.

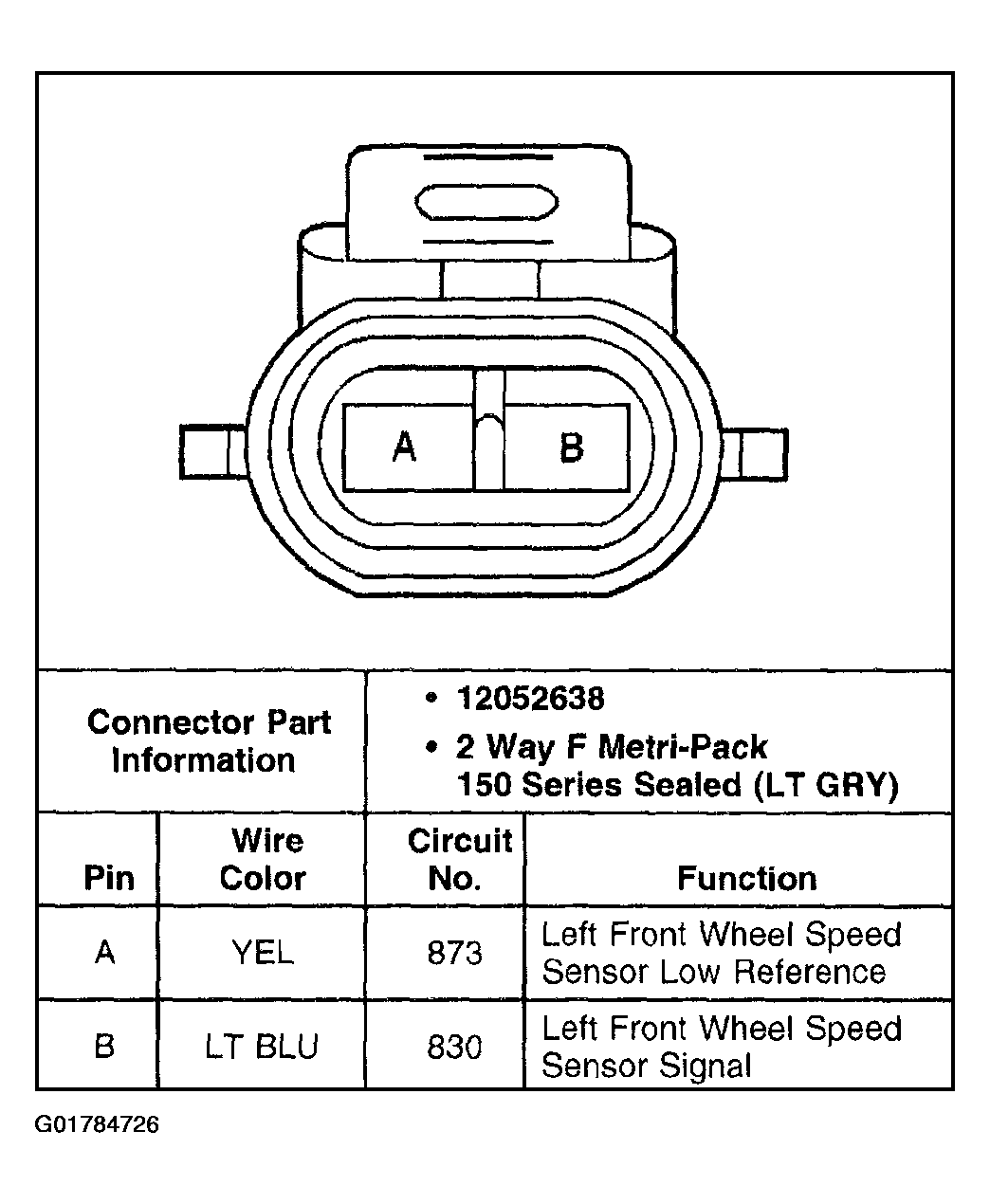

Fig 7: Identifying Wheel Speed Sensor (WSS) - LF

G01784726

Courtesy of GENERAL MOTORS CORP.

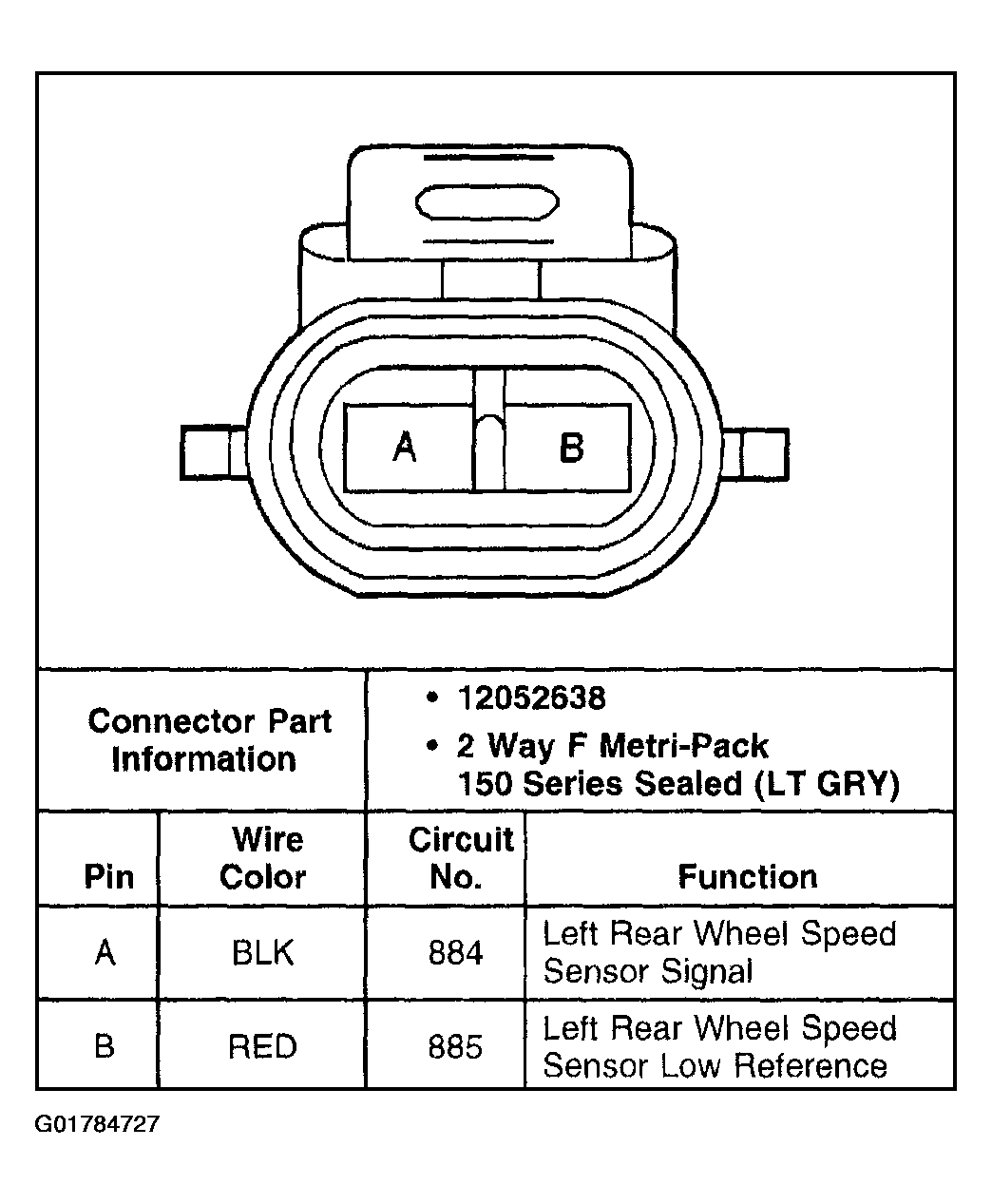

Fig 8: Identifying Wheel Speed Sensor (WSS) - LF

G01784727

Courtesy of GENERAL MOTORS CORP.

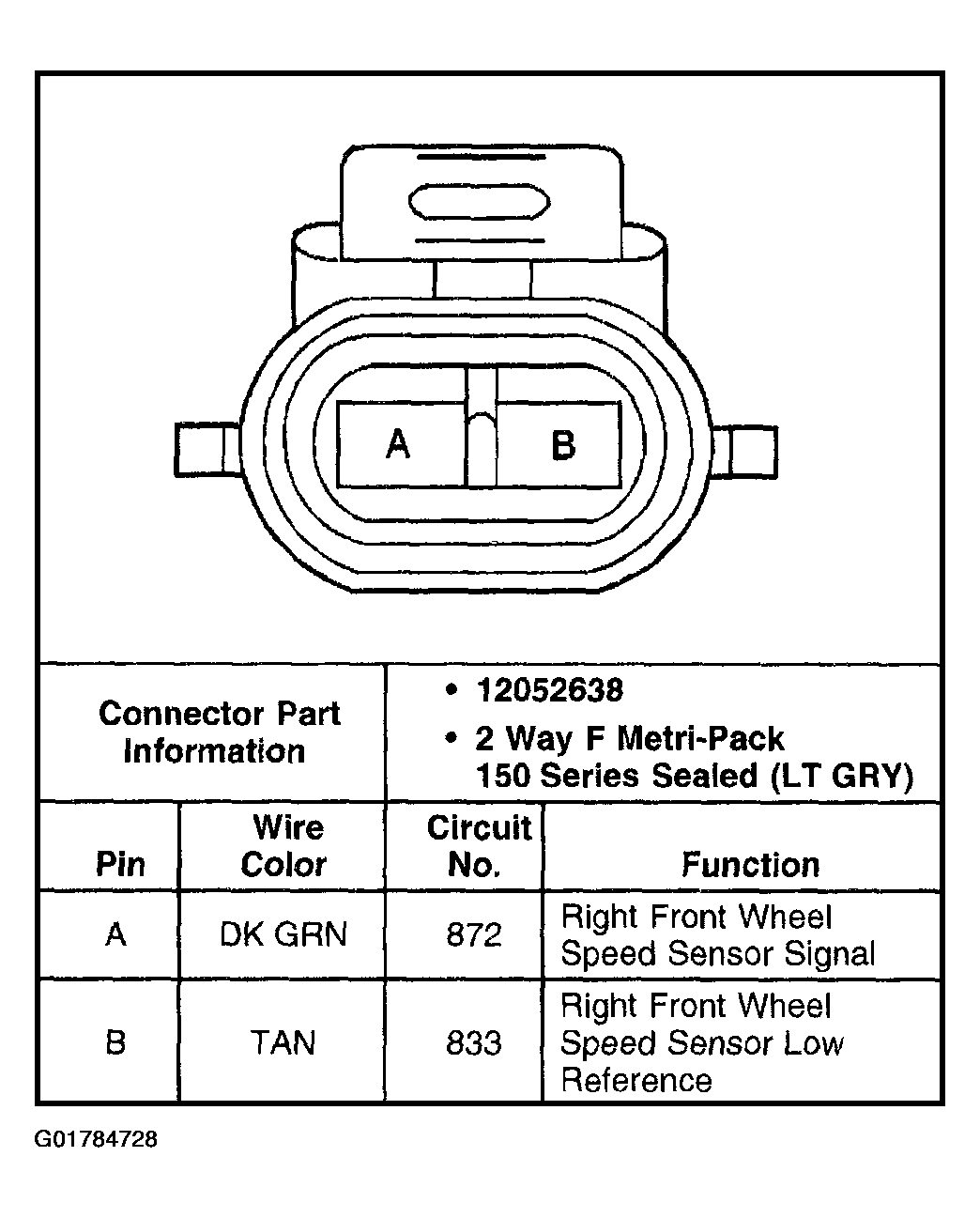

Fig 9: Identifying Wheel Speed Sensor (WSS) - RF

G01784728

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Wheel Speed Sensor (WSS) - RR

G01784729

Courtesy of GENERAL MOTORS CORP.
