Section 211 (Lighting Systems)
›
Diagnostic Information and Procedures
›
Scan Tool Output Controls
Scan Tool Output Controls
WARNING:
This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

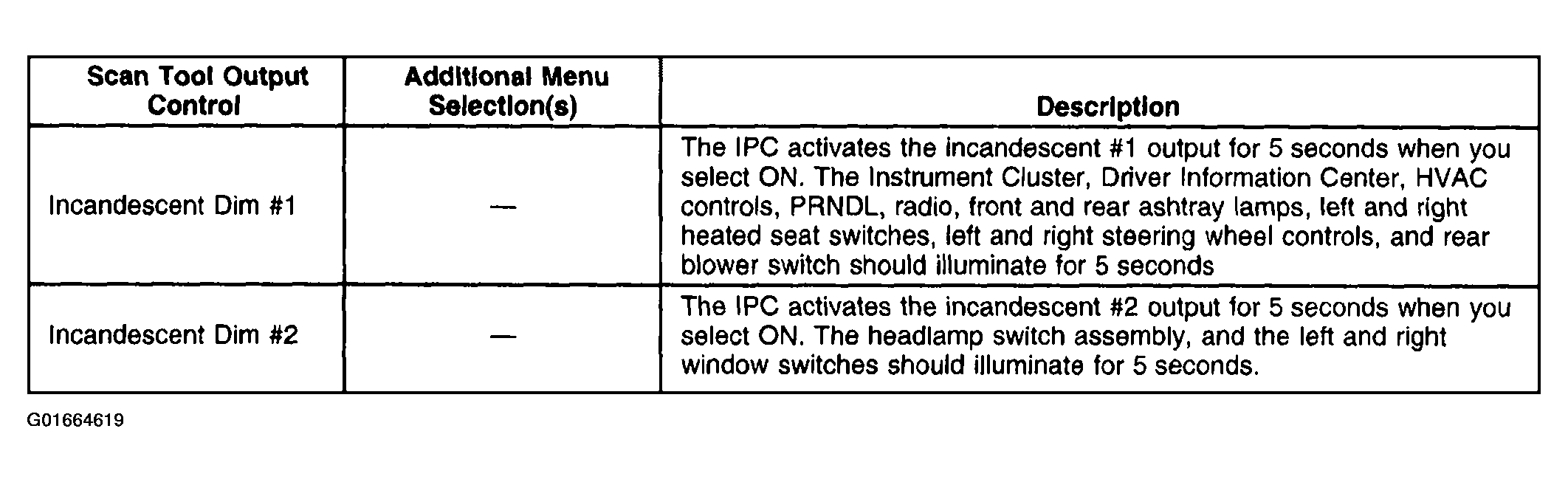

Fig 1: Instrument Cluster (IPC)
Courtesy of GENERAL MOTORS CORP.

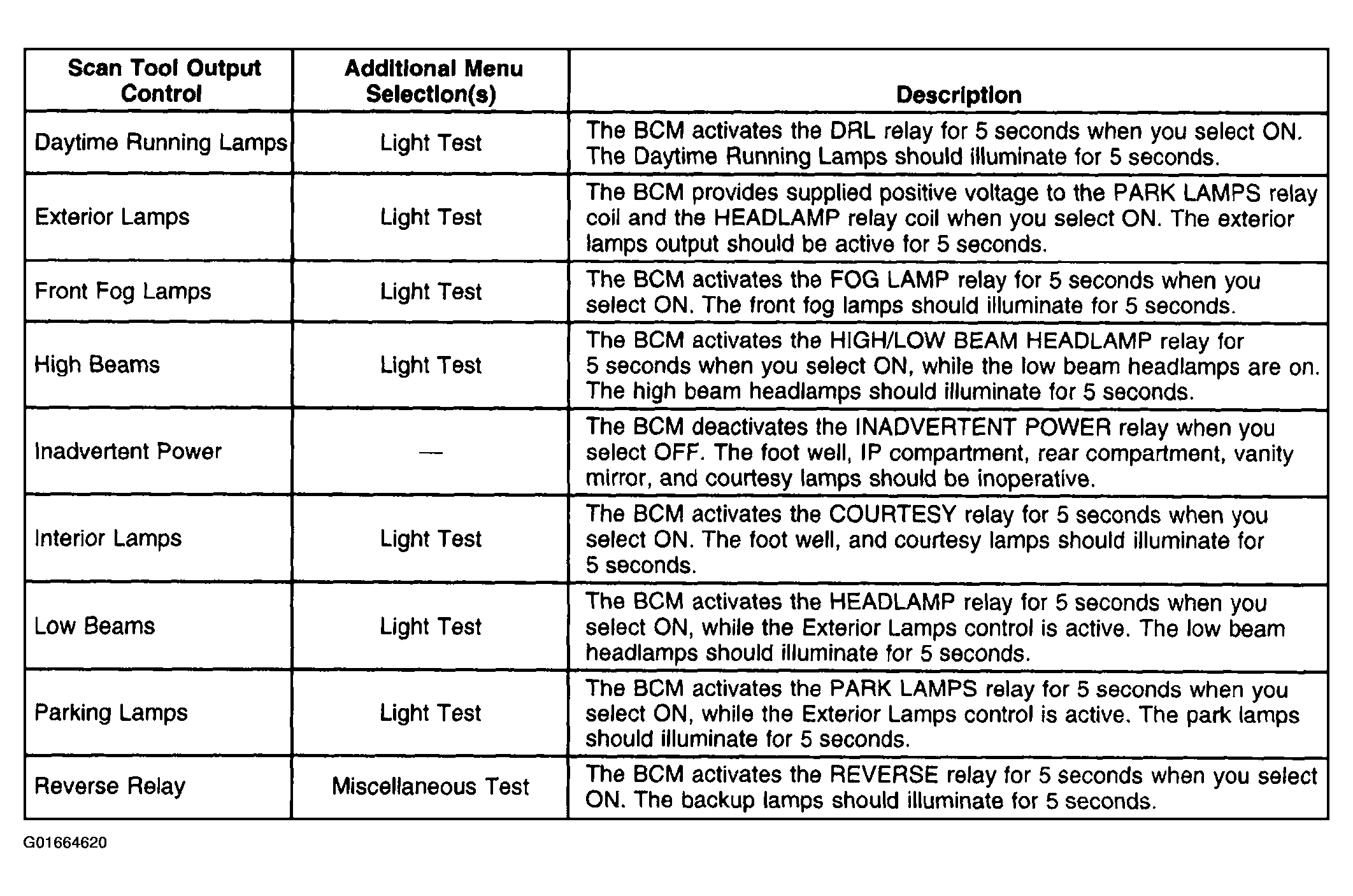

Fig 2: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
