Entertainment Component Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

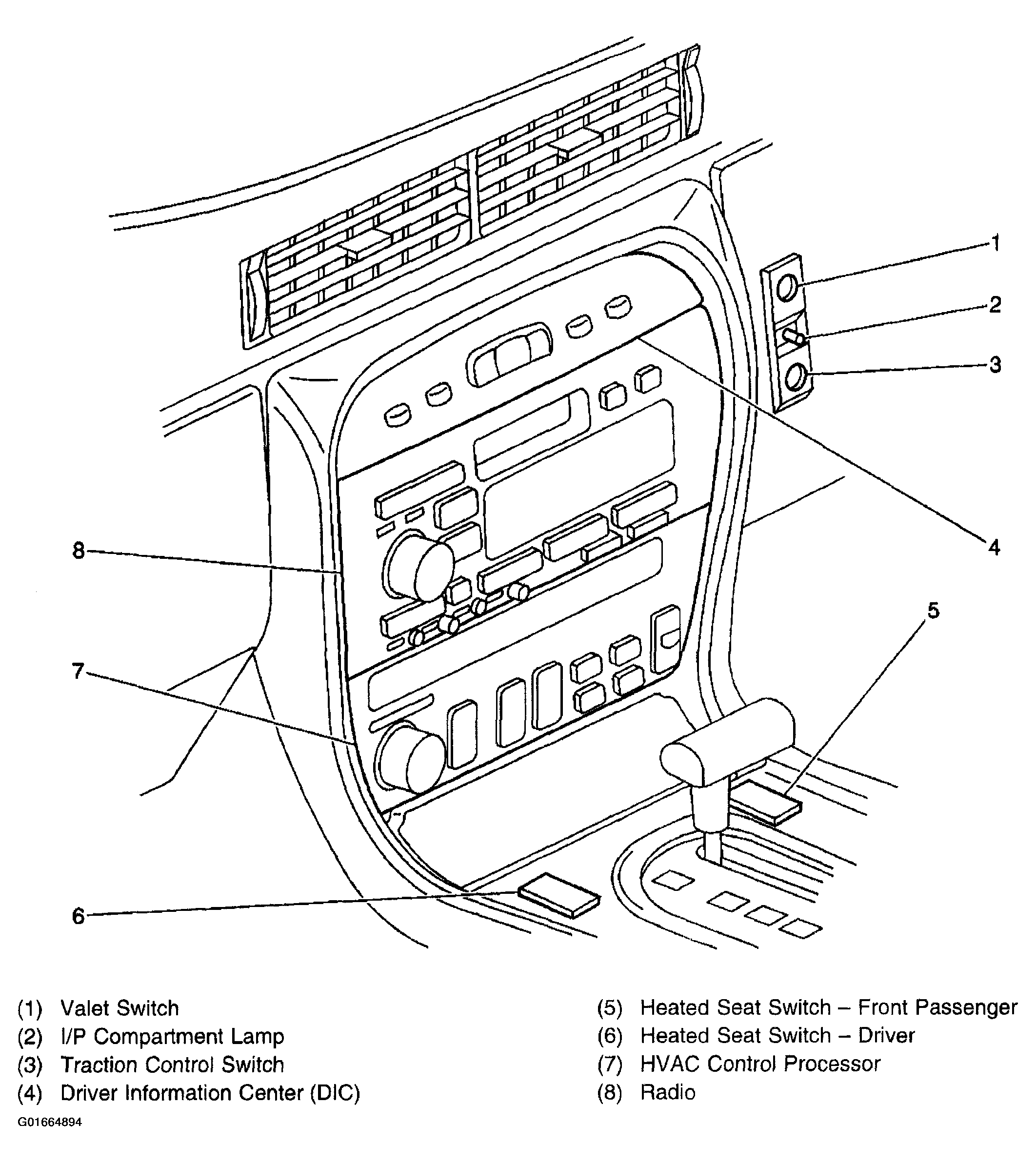

Fig 1: Passenger Compartment, in the Center of the I/P Component View

G01664894

Courtesy of GENERAL MOTORS CORP.

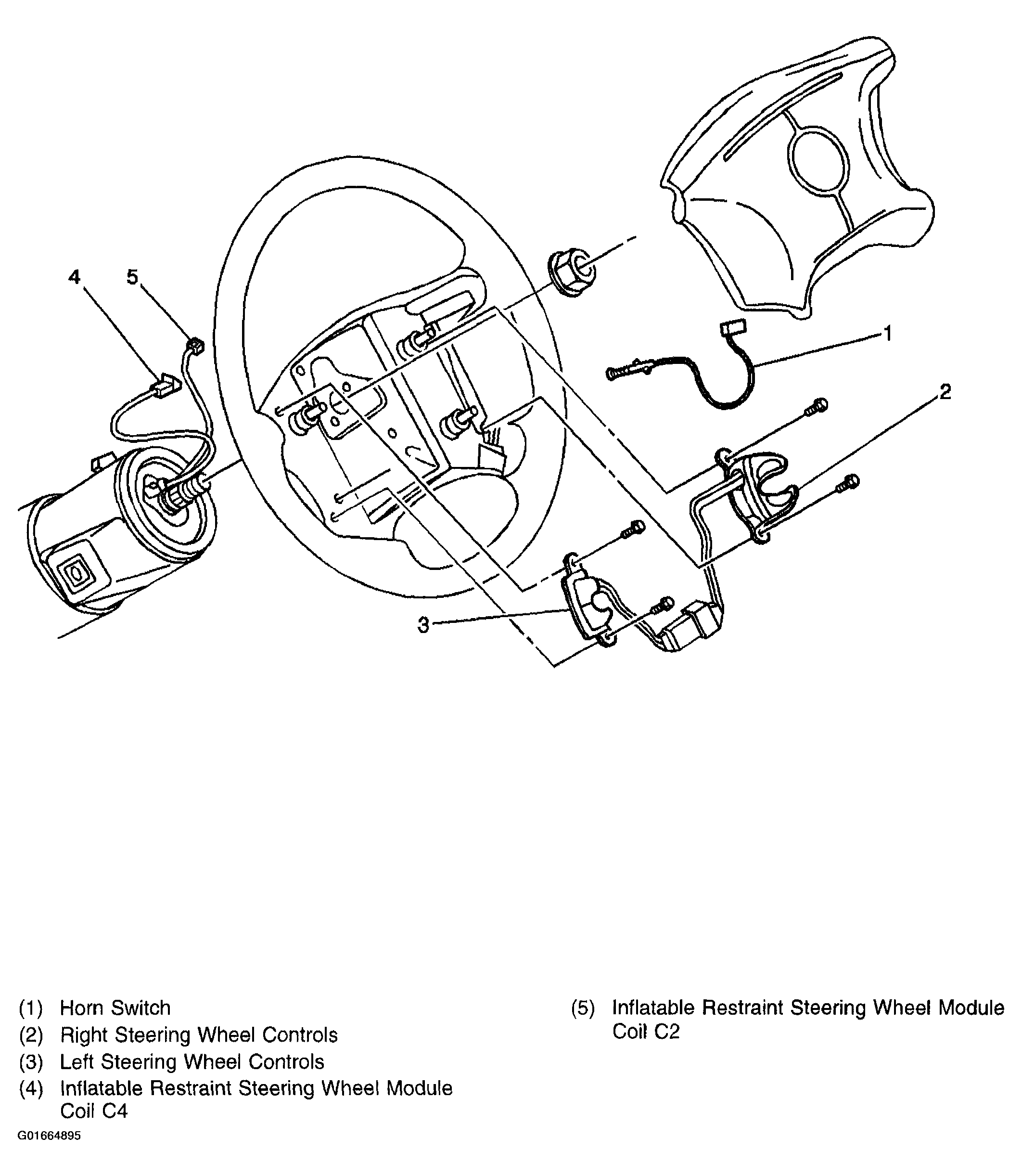

Fig 2: Steering Wheel Controls Component View

G01664895

Courtesy of GENERAL MOTORS CORP.

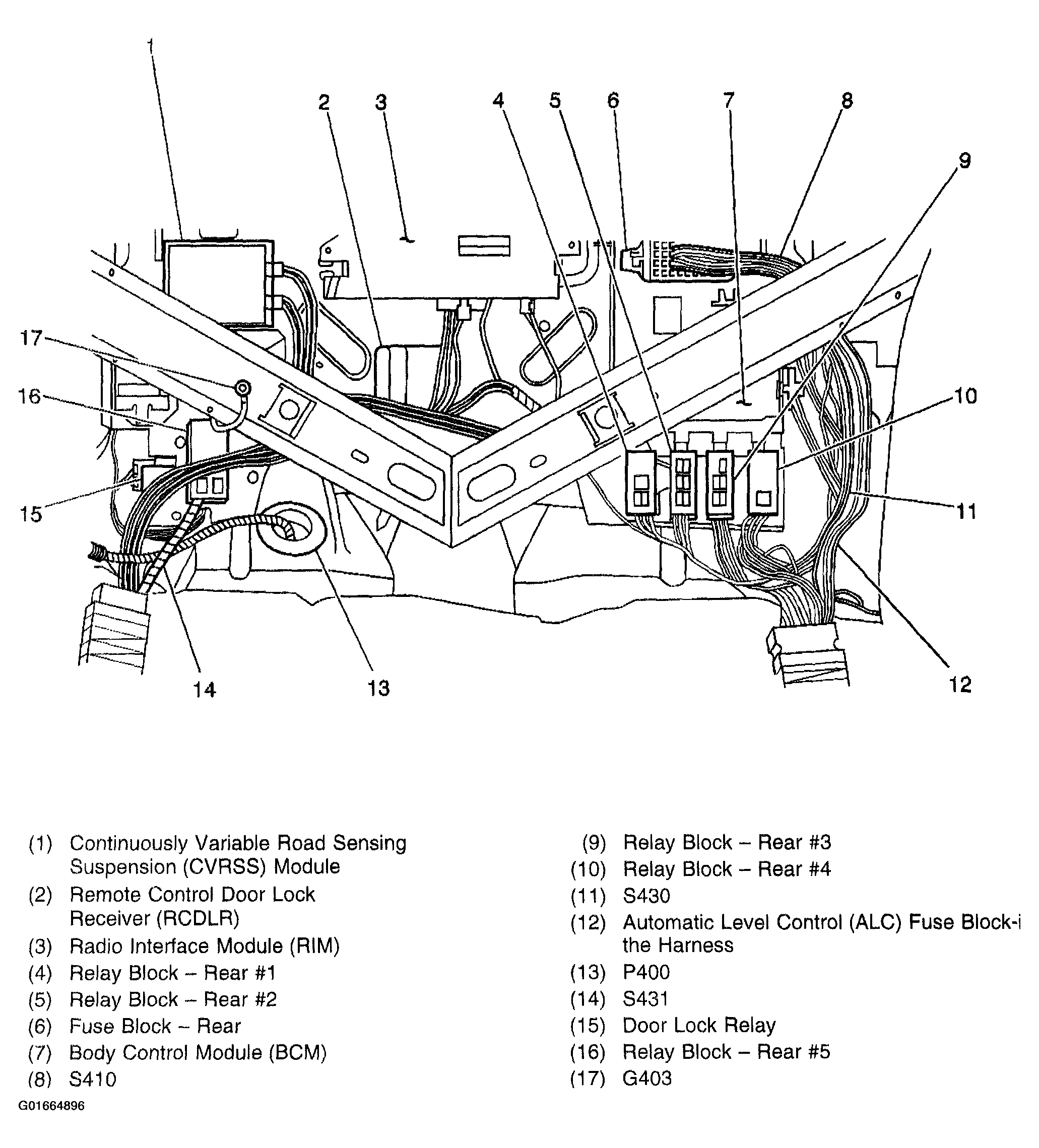

Fig 3: Passenger, Compartment, Behind Rear Seat Component View

G01664896

Courtesy of GENERAL MOTORS CORP.

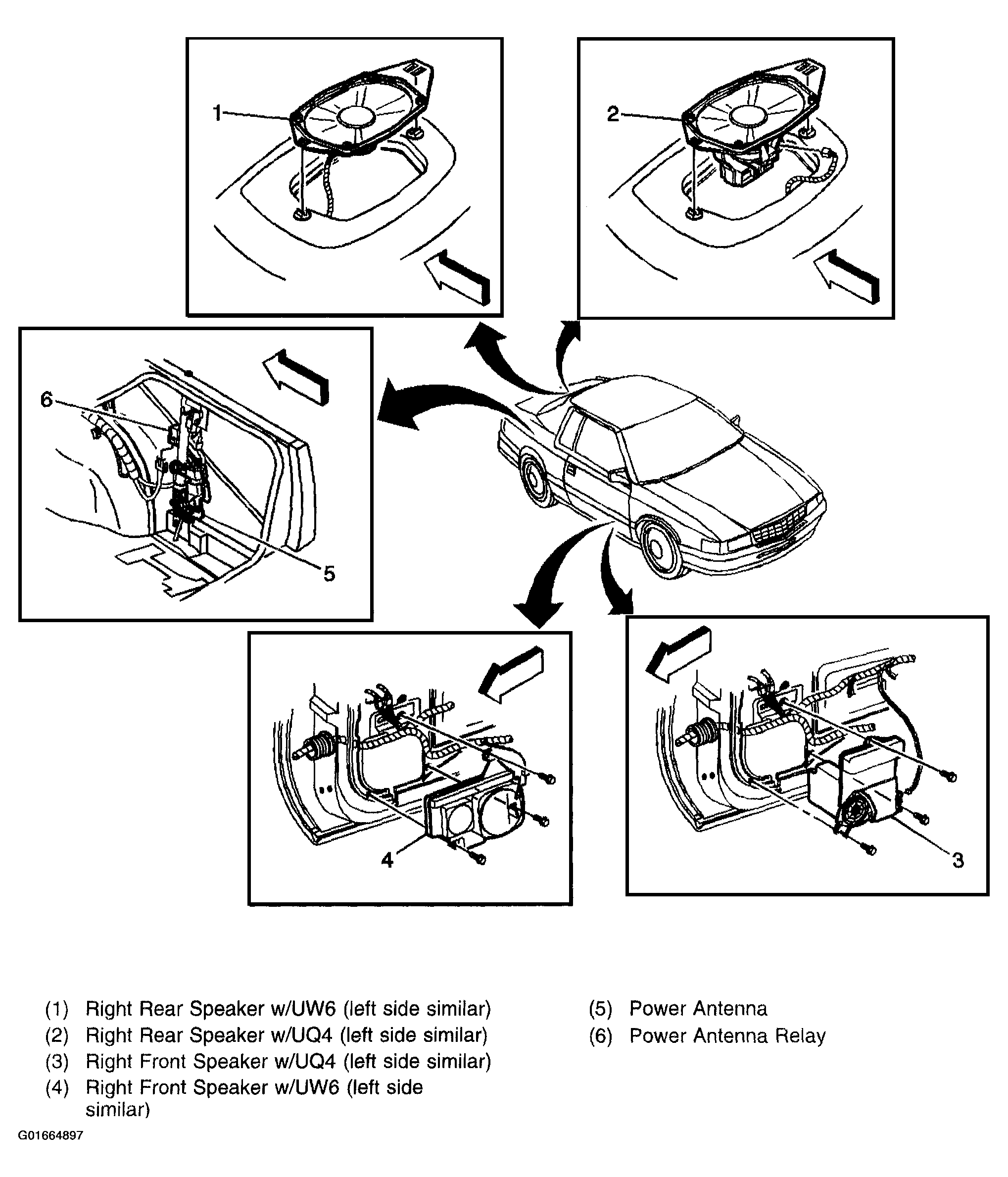

Fig 4: Speakers and Power Antenna Component View

G01664897

Courtesy of GENERAL MOTORS CORP.

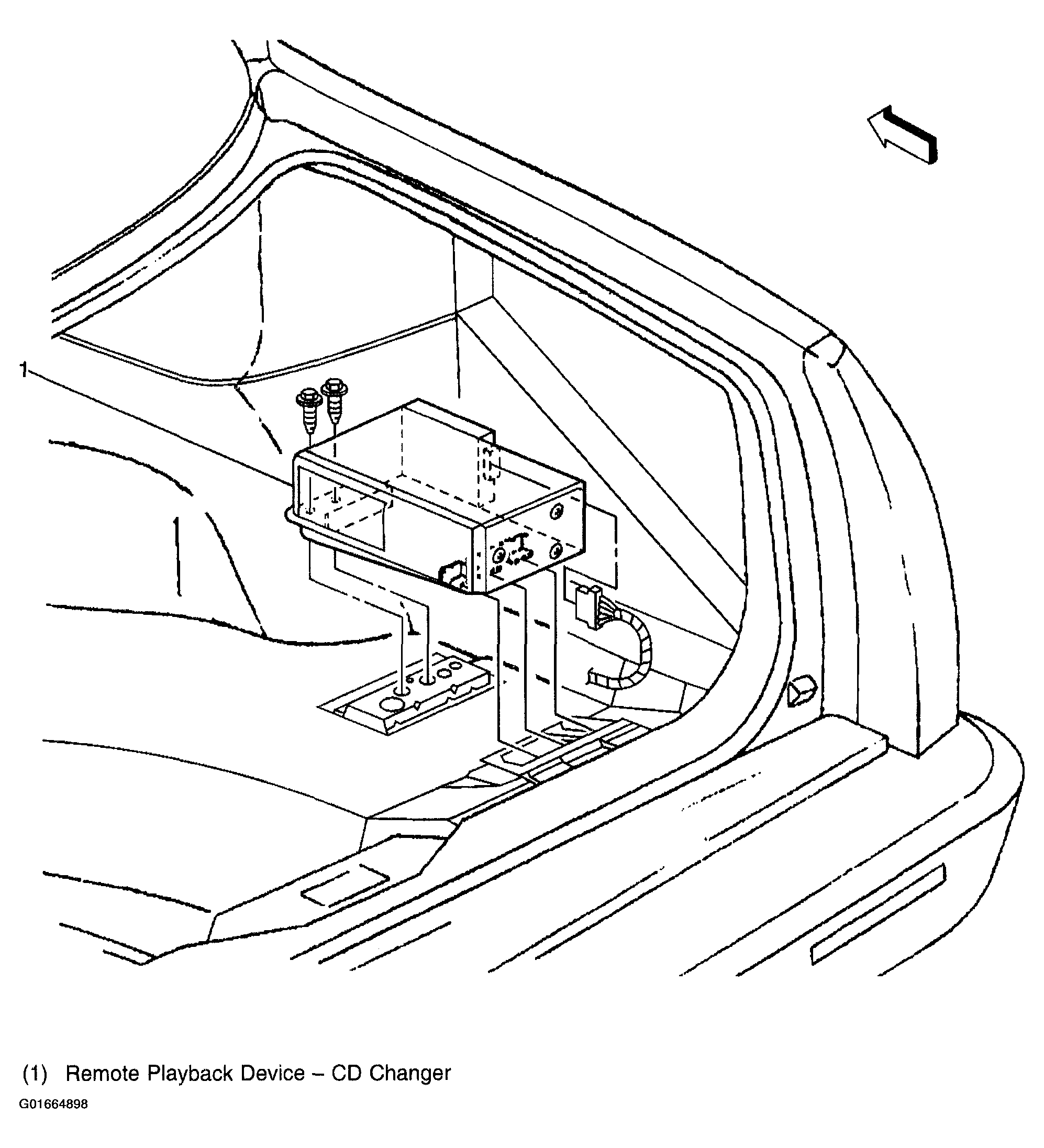

Fig 5: Rear Compartment, in Right Side Component View

G01664898

Courtesy of GENERAL MOTORS CORP.
